RECEIVER OPERATING INSTRUCTIONS
By understanding the menu structure it is easy to operate and make adjustments
to the system.
1. GROUP (1-10)
4. SQUELCH (5 – 45)
7. PILOT (ON, OFF)
Activate Menu: To activate the menu, press the SET button until GROUP˝ appears on
the display.

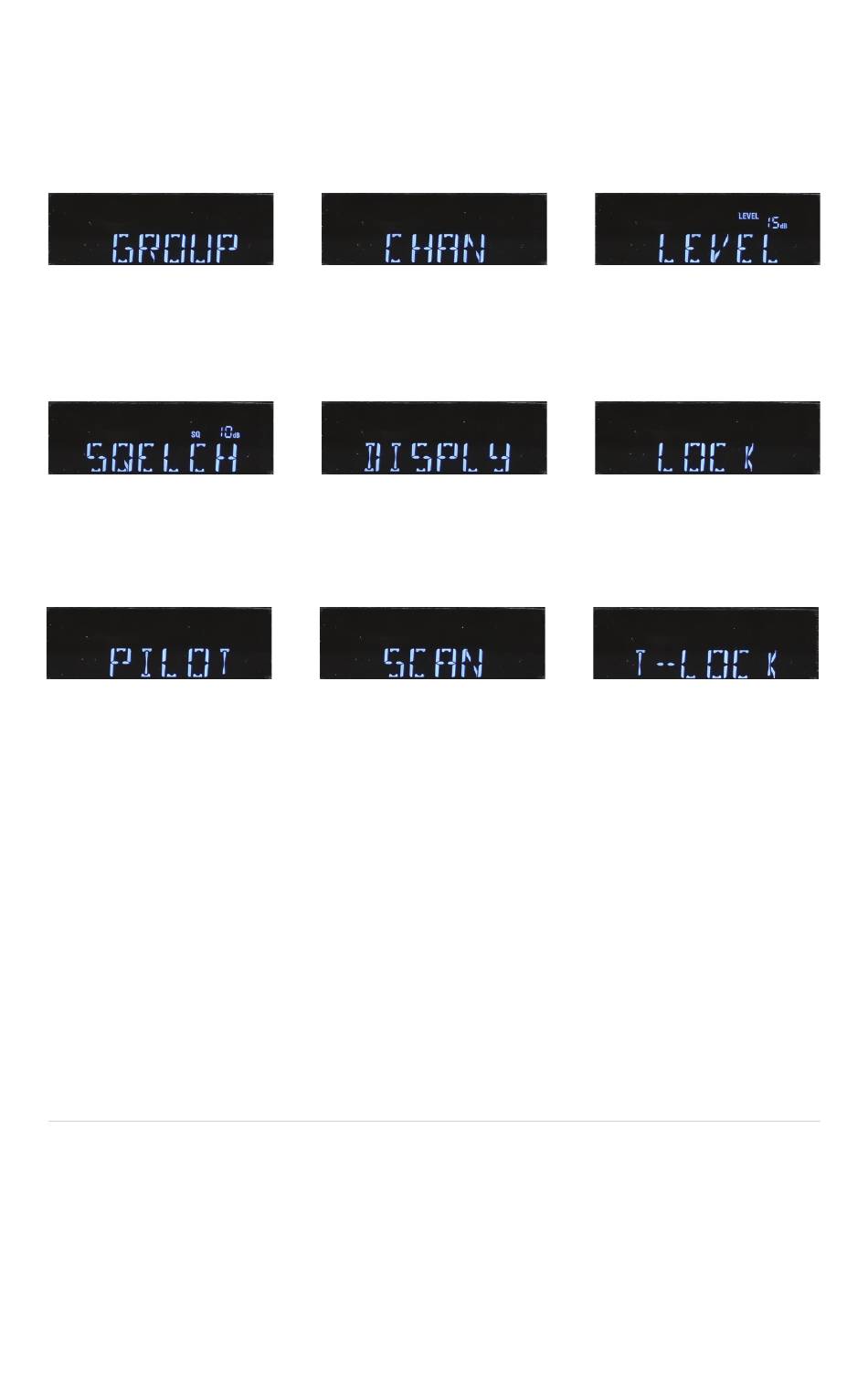

Scroll Through Menu: Each of the menu functions are displayed on the screen in the order
they appear in the grid above. To scroll through the menu press the UP button. Use the
DOWN button to scroll in reverse. For example, if you are on GROUP˝ and want to quickly
get to T-LOCK˝, press the DOWN button once.
MENU FUNCTIONS
GROUP/CHANNEL
These two functions work hand-in-hand as they represent preselected frequency
coordinates. See page 30 for a table of coordinated frequencies. Each time a SCAN is
performed (by pressing and holding the UP or DOWN button), a clear Group/Channel˝
will be chosen and appear on the display. It will be one of the 106 predesignated
frequencies available in your system (see page 30). The SCAN function takes the
guesswork out of finding the best available frequency and is also handy for adding more
systems into the mix.
16
2. CHANNEL (1-7)
5. DISPLAY
(FREQUENCY, CHANNEL,
SQUELCH, LEVEL)
8. SCAN (SCAN FOR
OPEN FREQUENCY)
3. LEVEL (-12 to +9)
6. LOCK (ON, OFF)
9. T-LOCK (ON, OFF)
