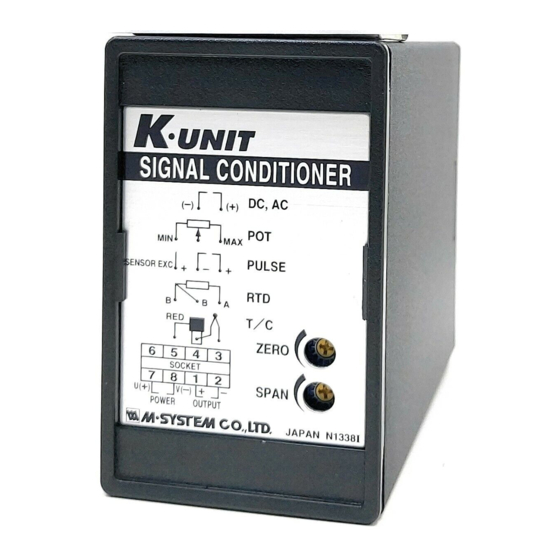

Signal transmitter (isolated)

Advertisement

Quick Links

INSTRUCTION MANUAL
SIGNAL TRANSMITTER (isolated)
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner (body + base socket + input resistor) ..... (1)
The resistor is provided only with current input type.
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.

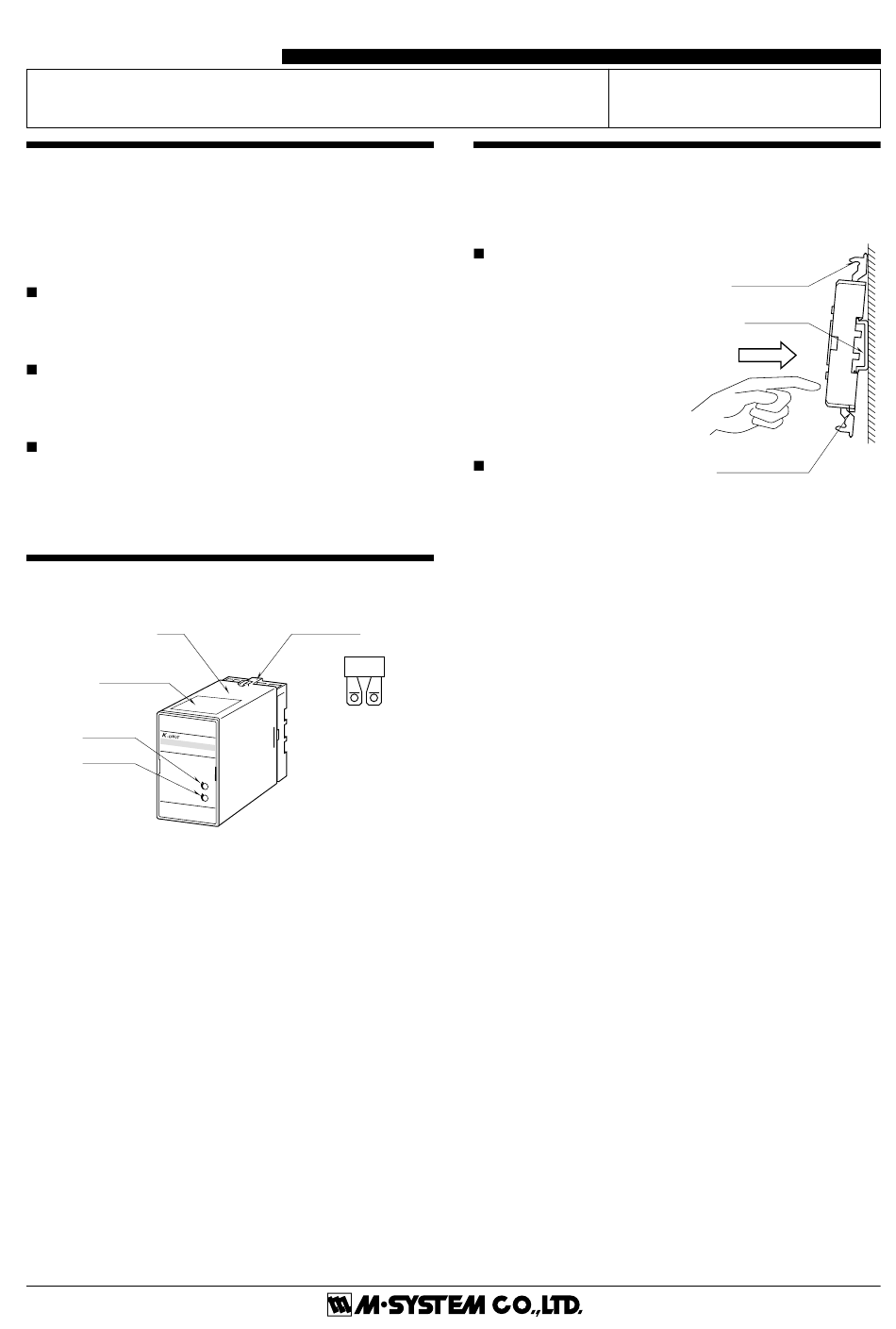

COMPONENT IDENTIFICATION

Body
Specification
Label
Zero Adj.
Span Adj.
Base Socket
Input Resistor
MODEL

INSTALLATION

Detach the yellow clamps located at the top and bottom of the
unit for separating the body from the base socket.
DIN RAIL MOUNTING
Set the base socket so that its
DIN rail adaptor is at the bot-
tom. Position the upper hook
at the rear side of base socket
on the DIN rail and push in
the lower. When removing the
socket, push down the DIN
rail adaptor utilizing a screw-
driver (–) and pull.
WALL MOUNTING
Refer to the drawings in the
following page.
KVS
KVS
Clamp
(top & bottom)
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
Shape and size of the base socket
are slightly different with various
socket types.
P. 1 / 3
EM-3511 Rev.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVS and is the answer not in the manual?

Questions and answers

Summary of Contents for M-system KVS

  • Page 1 MODEL BEFORE USE ..INSTALLATION Thank you for choosing M-System. Before use, check the Detach the yellow clamps located at the top and bottom of the package you received as below. unit for separating the body from the base socket.
  • Page 2 TERMINAL CONNECTIONS Connect the unit as in the diagram below or refer to the connection diagram label on the front of the unit. When an input resistor is provided with the module, attach it together with input wiring to the input screw terminals. DIMENSIONS mm (inch) CLAMP (top &...
  • Page 3 M-System's sole liability, and purchaser's exclusive remedies, under this warranty are, at M-System's option, the repair, replacement or refund of the purchase price of any M-System product which is defective under the terms of this warranty. To submit a claim under this warranty, the purchaser must return, at its expense, the defective M-System product to the below address together with a copy of its original sales invoice.
