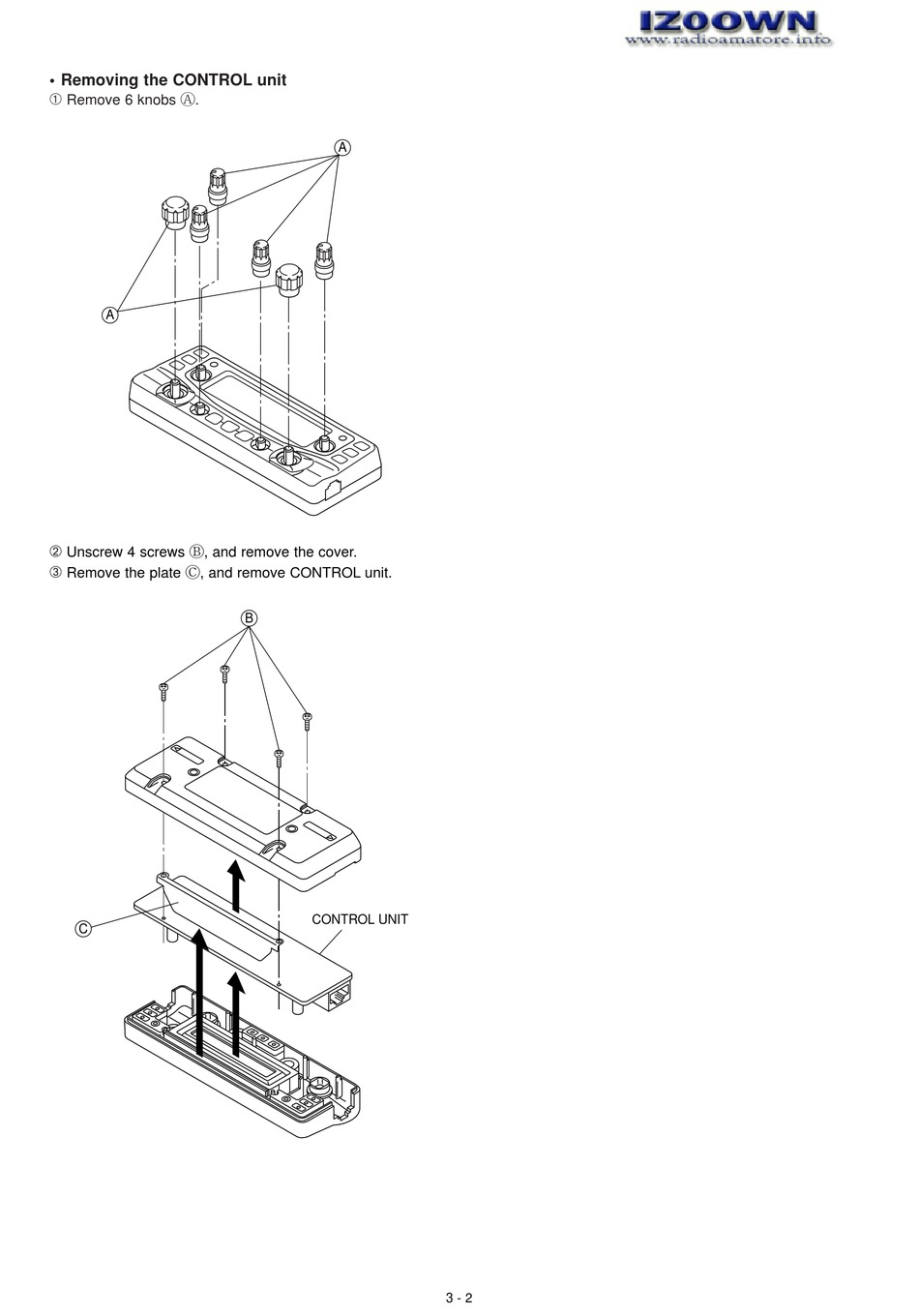

• Removing the CONTROL unit
Remove 6 knobs A.
A
A
Unscrew 4 screws B, and remove the cover.
Remove the plate C, and remove CONTROL unit.
B
CONTROL UNIT
C
3 - 2
