User Manual

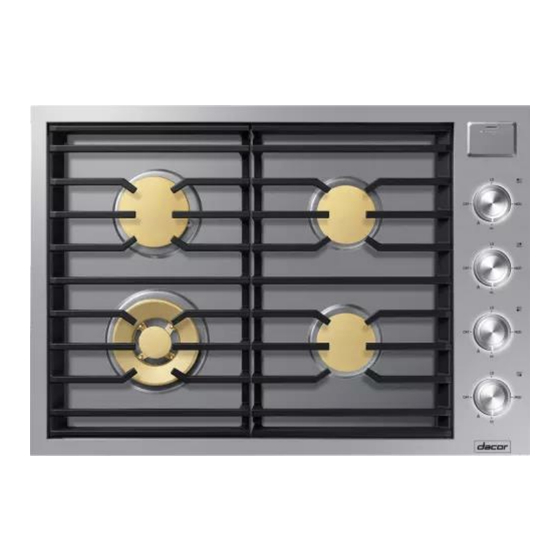

Modernist Gas Cooktop
DTG30M954/DTG36M955
Part No. 112170 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Modernist DTG30M954 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor Modernist DTG30M954

Summary of Contents for Dacor Modernist DTG30M954

  • Page 1 User Manual Modernist Gas Cooktop DTG30M954/DTG36M955 Part No. 112170 Rev B...

  • Page 2: Table Of Contents

    Contents Before you begin About this manual Important note to the installer Important note to the consumer Important note to the servicer Regulatory Notice Important safety instructions Read all instructions before using this appliance Symbols used in this manual State of California Proposition 65 warning (US only) Commonwealth of Massachusetts General safety Fire safety...
  • Page 3 Care and maintenance Cleaning the cooktop surface Stainless steel surfaces Control knobs Burner grates and components Burner caps and heads Burner bases Electrodes Grates Burner head and cap replacement Troubleshooting Checkpoints Warranty and Service Getting Help Warranty Open Source Announcement English 3...
  • Page 4 Website: www.dacor.com/customer-care/contact-us Thanks for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor cooktop will deliver a top-level performance and enjoyment for decades to come.

  • Page 5: Before You Begin

    Before you begin About this manual READ THESE INSTRUCTIONS THOROUGHLY. Important note to the installer • Remove all packing materials from the cooktop compartments before connecting the electric and gas supply to the cooktop. • Observe all governing codes and ordinances. •...

  • Page 6: Regulatory Notice

    Regulatory Notice 1. FCC Notice CAUTION FCC CAUTION: Any modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to these two conditions: 1)This device may not cause harmful interference, and 2)This device must accept any interference received including interference that causes undesired operation.
  • Page 7 IC RADIATION EXPOSURE STATEMENT This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there are at least 8 in. (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

  • Page 8: Important Safety Instructions

    Important safety instructions Read all instructions before using this appliance • All electrical and gas equipment with moving parts can be dangerous. Be sure to read the Important Safety Information in this manual. The instructions must be followed to minimize the risk of property damage, injury, or death. •...

  • Page 9: General Safety

    General safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: • Do not touch any surface, component, or mechanism of the cooktop during or immediately after cooking. • Learn where and how to shut off the valve that feeds gas to the cooktop.

  • Page 10: Fire Safety

    Important safety instructions Fire safety WARNING To reduce risk of fire, electric shock, personal injury, or death: • Do not store/place/use combustible materials (e.g., paper, plastic, pot holders, linens, gasoline, alcohol) near the cooktop. • Do not wear loose fitting or hanging garments while using the cooktop. •...

  • Page 11: Electrical And Grounding Safety

    Important safety instructions Electrical and grounding safety WARNING To reduce risk of fire, electric shock, personal injury, or death: • Plug the power cord into a grounded, 3-prong outlet. • Do not remove the grounding prong. • Do not use an adapter or extension cord. •...

  • Page 12: Installation Safety

    Installation safety WARNING To reduce risk of fire, electric shock, personal injury, or death: • The cooktop should be installed and properly grounded by a qualified installer, per the Installation Instructions. • Do not service/modify/replace the cooktop or any part of it unless specifically directed in this manual.

  • Page 13: Location Safety

    Important safety instructions Location safety WARNING To reduce risk of fire, electric shock, personal injury, or death: • The cooktop is for indoor household use only and should not be exposed to weather/ water/wind/drafts. • The cooktop must be installed within easy reach of a grounded, 3-prong outlet. •...

  • Page 14: Cooktop Safety

    Cooktop safety WARNING To reduce risk of fire, electric shock, personal injury, or death: • Select cookware that is designed for cooktops and is large enough to cover the grates. Burner flames should not extend beyond the bottom of the cookware. •...
  • Page 15 Important safety instructions • Always let oil/fat cool to room temperature before moving the cookware. • To avoid delayed-eruptive boiling, let hot oil/fat stand at least 20 seconds after turning off the burner so the temperature can stabilize. In case of scalding: 1.

  • Page 16: Overview

    Overview Layout 30” Model: DTG30M954 36” Model: DTG36M955 Center English...
  • Page 17 Overview 30” Model: DTG30M954 01 Left Rear 02 Left Front Rapid burner 13000 BTU Dual burner 18500 BTU 03 Right Front / Rear 04 iQ Connect module Semi rapid burner 9500 BTU 05 Grate (2 pcs) 06 Surface burner knobs (4 pcs) 07 iQ Connect button (below knob) 08 Bluetooth button (below knob) 36”...

  • Page 18: What's Included

    Surface burners and brass caps porcelain caps(4) 36” Model: DTG36M955 Surface burner grates (3)* Surface burners and brass caps porcelain caps(5) NOTE If you need an accessory marked with an asterisk(*), you can buy it from Dacor Customer Assurance (1-800-793-0093) English...

  • Page 19: Using The Cooktop Burners

    Using the cooktop burners Ignition CAUTION The knob LED indicates if a burner knob has been turned on. It does not indicate if the burner flame is on. Check for an actual flame, although the knob LED is on or off. Make sure all cooktop burners are properly installed.
  • Page 20 Manual ignition During a power failure, you can ignite burners manually. Use caution when doing this. 1. Hold a long, gas-grill lighter to a burner. 2. Push in, and turn the control knob to Lite, then click the lighter to ignite the burner. 3.

  • Page 21: Cookware

    Using the cooktop burners Cookware Requirements • Flat bottom and straight sides • Tight-fitting lid • Well-balanced, with the pot/pan having the bulk of the weight. Material characteristics Material Heat conduction Comment Some foods may darken the aluminum. However, Excellent Aluminum anodized aluminum resists staining and pitting.
  • Page 22 Size limitations CAUTION 10 inches Do not place a pan or pot with a bottom or more diameter of about 10 inches or more on 10 inches the RF or LF burner. or more CAUTION 6 inches or To avoid tipping, do not set cookware less with a bottom diameter of 6 in.

  • Page 23: Installing The Grates

    Using the cooktop burners Installing the grates NOTE The grates have specific locations. For best results stability, and longevity, place the grates as instructed. (Each center opening goes directly over the corresponding burner.) The back of the right grate is notched to help you orient the grates correctly. To correctly place the grates: 1.

  • Page 24: Using The Iq Connect Feature

    (e.g., far from the Wi-Fi source). Connecting the cooktop Before you can remotely control the cooktop, it must be paired with the Dacor iQ Kitchen app. 1. Download and open the Dacor iQ Kitchen App on your smart device.
  • Page 25 Using the cooktop burners NOTE The cooktop’s iQ Connect button is under the LR control knob. To access this button, grasp the LR knob, and pull up. iQ Connect LED Indicator iQ Connect button To monitor the cooktop remotely 1. Make sure the iQ Connect LED indicator appears. If it does not appear, press the iQ Connect button, after which the cooktop can be monitored remotely with a connected remote device.

  • Page 26: Using The Hood Control Feature

    • The cooktop continues operating even if the Wi-Fi connection is lost. • iQ Connect will not work properly if the Wi-Fi Connection is unstable. • See the iQ Connect app’s user manual for details. You can also visit www.dacor.com where you can view the iQ Connect web manual.
  • Page 27 • The hood’s Bluetooth LED appears as long as Bluetooth is enabled. • If the connection fails, the Dacor iQ Kitchen app cannot monitor/control the hood. • You can use a Bluetooth connection to pair and sync the cooktop and hood. Follow the Bluetooth connection steps on pgs.

  • Page 28: Care And Maintenance

    Care and maintenance WARNING Turn off power, and wait for all surfaces to cool before cleaning any part of the cooktop. Cleaning the cooktop surface You should clean up spills immediately. 1. Turn off all burners. 2. When the grates cool, remove them. 3.

  • Page 29: Control Knobs

    Care and maintenance Control knobs Turn off all burner knobs. 1. Pull the knobs off their valve stems. 2. Clean the knobs in warm, soapy water, then rinse and dry them thoroughly. 3. Clean the stainless-steel surfaces with stainless-steel cleaner. 4.

  • Page 30: Burner Grates And Components

    Burner grates and components Turn off all surface burners and make sure they have all cooled down. 1. Remove the burner grates. 2. Remove the burner caps. 3. Remove the burner heads from the valve manifolds. 4. Clean the grates and burner parts in warm, soapy water.(Do not use steel- wool or abrasive cleaners.) 5.

  • Page 31: Burner Caps And Heads

    Care and maintenance Burner caps and heads NOTE Before removing the burner caps and heads, note their size and location, and replace them as before. Wash burner caps and burner heads in hot, soapy water, and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on residue.

  • Page 32: Burner Bases

    NOTE • The included dual burner head is not a substitute. One is for LP gas and the other is for LN gas. Use appropriate gas type. - Dual burner head for LP gas is packed with a plastic bag. - The letter “For LP”...

  • Page 33: Electrodes

    Care and maintenance Electrodes CAUTION Do not attempt to remove the electrode from the cooktop or burner bases. You should never be cooking while you’re cleaning the cooktop. Make sure the white ceramic electrodes are clean and dry. Clean the metal portion with a soft cloth.

  • Page 34: Grates

    Grates CAUTION Do not clean the grates in a dishwasher. They will be damaged. Wash the grates regularly and after spillovers. To clean the grates, wait until they cool sufficiently, then remove and wash them in hot, soapy water. Rinse the grates with clean water, and dry them thoroughly.
  • Page 35 Care and maintenance 3. Match the burner caps to the burners by size, and then re-install the caps on the burner heads. CAUTION Each cap fits on a specific burner head. Verify that each cap is installed and lies flat on the correct head. Round Burner head / caps 1.
  • Page 36 NOTE After installing the burners, verify that they will work properly. Improperly installed components will result in poor ignition or uneven flames. English...

  • Page 37: Troubleshooting

    Troubleshooting If the cooktop malfunctions, before calling for service, review the tables in this section for a possible resolution of the issue. Checkpoints Gas safety Problem Possible cause Action You smell gas. Burner knob is on, but there is Turn the burner knob to OFF. no flame.

  • Page 38: Warranty And Service

    All cosmetic damage (e.g., scratches on stainless steel, paint/porcelain blemishes, etc.) to the appliance or included accessories must be reported to Dacor within 60 days of the original purchase date to qualify for warranty coverage.
  • Page 39 OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA AND CANADA: LIMITED FIRST-YEAR WARRANTY If your Dacor product malfunctions within one year of the original purchase date, due to material or manufacturing defect, Dacor will furnish a new part, FOB factory to replace the defective part.
  • Page 40 Warranty and Service Out of Warranty If a service issue occurs beyond the standard warranty period, call anyway. Dacor reviews each issue and customer concern independently to provide the best possible outcome for the customer. THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES.

  • Page 41: Open Source Announcement

    Open-Source Announcement The software included in this product contains open-source software. You may obtain the complete corresponding source code for 3 years after the last shipment of this product by sending emailing: oss.request@samsung.com. You may also obtain the complete corresponding source code via CD-ROM for a small fee. The URL, http://opensource.samsung.com/opensource/OVEN_HKM_TZ/seq/0 leads to the download page of the source code made available and open-source license info related to this product.
  • Page 42 Dear Valued Customer, Thank you for purchasing a Dacor Modernist cooktop. We hope it empowers your passion for cooking! We include a set of brass burner caps to enhance the elegance of your cooktop. Because these caps discolor with use due to the influence of heat on the brass, we also include a set of black porcelain burner caps that you can use instead of the brass if you are concerned about the discoloration, which is not covered by our warranty.
  • Page 43 IMPORTANT: Your warranty will not begin until you activate it online or return this form to Dacor. If you have purchased more than one Dacor product, please return all forms in one envelope, or activate the warranty for each product online.
  • Page 44 DG68-00927A-01 Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: (800) 793-0093 ∙ Fax: (626) 403-3130 ∙ www.dacor.com...
