User Manual

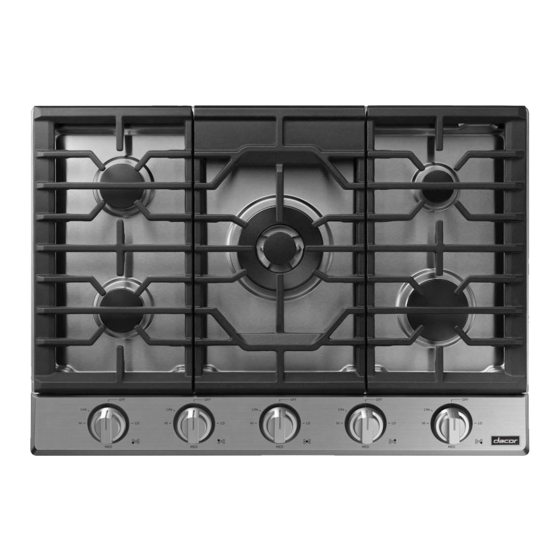

Gas Cooktop
DTG30P875N*
DTG36P875N*
DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 1
2020-05-27
10:57:00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTG30P875N Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dacor DTG30P875N Series

  • Page 1 User Manual Gas Cooktop DTG30P875N* DTG36P875N* DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 1 2020-05-27 10:57:00...
  • Page 2 Regulatory Notice WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death. 1. FCC Notice • DO NOT store or use gasoline or other flammable vapors and CAUTION liquids in the vicinity of this or any other appliance.
  • Page 3 FCC STATEMENT: FCC RADIATION EXPOSURE STATEMENT: This equipment has been tested and found to comply within the This equipment complies with FCC radiation exposure limits set limits for a Class B digital device, pursuant to part 15 of the FCC forth for an uncontrolled environment.
  • Page 4 Regulatory Notice General safety instructions IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits This unit has been tested and found to comply with the limits for set forth for an uncontrolled environment. This equipment should be a class B digital device, pursuant to Part 18 of the FCC rules.
  • Page 5: Table Of Contents

    Contents Important safety information Care and cleaning of the cooktop Cooktop surface Overview Porcelain enamel surfaces (on some models) Stainless steel surfaces (on some models) Layout Control knobs What’s included Burner grates and components Burner caps and heads Using the cooktop burners Burner bases Electrodes Ignition...
  • Page 6: Important Safety Information

    Important safety information California Proposition 65 Warning Read all instructions before using this appliance • All electrical and gas equipment with moving parts can be dangerous. Please WARNING read the important safety instructions for this appliance in this manual. The instructions must be followed to minimize the risk of injury, death, or property Cancer and Reproductive Harm - www.P65Warnings.ca.gov damage.
  • Page 7 General safety • Do not lean on the cooktop as you may turn the control knobs inattentively. • Do not stand on top of the appliance or place objects (such as laundry, an oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on WARNING the appliance.
  • Page 8 Important safety information Gas safety Electrical and grounding safety WARNING WARNING To reduce the risk of fire, electric shock, personal injuries, and/or death, observe To reduce the risk of fire, electric shock, personal injuries, and/or death, observe the following precautions. the following precautions.
  • Page 9 Installation safety • Make sure the middle valve has adequate capacity and is not clogged. • This cooktop must be installed by a qualified technician. Otherwise, gas leaks, fire, or defective ignition may occur. WARNING To reduce the risk of fire, electric shock, personal injuries, and/or death, observe Location safety the following precautions.
  • Page 10 Important safety information Cooktop safety • Always heat frying oils slowly, and watch as they heat. If you are frying foods at high heat, carefully watch during the cooking process. If a combination of fats or oils is to be used during frying, mix them together before heating. WARNING •...
  • Page 11: Overview

    Overview Layout Left Front/Left Rear Center Semi rapid burners 9,500BTU Power burner 30" Model: DTG30P875N* 19,000 BTU Right Rear Right Front Simmer burner Rapid burner 5,000 BTU 13,000 BTU Wi-Fi module Grate (3) Surface burner knobs (5 pcs) Wi-Fi button (below knob) Center Bluetooth button (below knob) Each burner has a corresponding knob that lets you to set the flame level from...
  • Page 12: What's Included

    If you need an accessory marked with an asterisk (*), you can buy it from the NOTE Dacor Contact Center 833-35-ELITE (833-353-5483). The dual valve located to the center controls the inner/outer flame of the dual burner [Center]. When the inner / outer flame is on the HI position, the flame size gets smaller from the outside when turning the knob from HI to LO.
  • Page 13: Cookware

    Cookware Flame level The flames on the burners should always stay under the cookware, and should not extend beyond the cookware bottom at any time. Requirements WARNING • Flat bottom and straight sides • Tight-fitting lid • Flames larger than the cookware bottom may result in a fire or physical injury. •...
  • Page 14: Install The Grates

    Using the cooktop burners To replace the grates correctly, follow these steps: CAUTION 6 inches or less Locate the notch on the back of the right grate. • Do not place a pan or pot with a bottom Orient the right grate so that it is on the right side of the cooktop with the notch diameter of about 6 inches or less on the in the back.
  • Page 15: Wok Ring

    Wok ring Griddle Woks are often used for stir frying, pan frying, deep frying, and poaching. The The removable coated griddle provides an extra cooking surface. This is useful provided wok ring supports 12” to 14” woks. especially when cooking meat, pancakes, or other foods requiring a large cooking area.
  • Page 16: Using The Iq Connect Feature

    Wi-Fi signal. How to connect the cooktop Before you can use the remote features of your DACOR oven or cooktop, you must pair it to the SmartThings App. Download and open the SmartThings app on your smart device.
  • Page 17 SmartThings Application will not work properly if the Wi-Fi Connection is iQ Connect LED indicator unstable. • See the SmartThings app manual for detailed information. • For further instructions, refer to the SmartThings app web manual at www.Dacor.com English 17 DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 17 2020-05-27 10:57:05...
  • Page 18: Using The Hood Control Feature

    This product features a Bluetooth device that you can use to connect the cooktop straight up. to Dacor hood control models. Through the Bluetooth connection, you can use the hood control function on the SmartThings app. For matching hood control-enabled cooktops and hoods, refer to the below table.
  • Page 19: Care And Cleaning Of The Cooktop

    Care and cleaning of the cooktop WARNING Stainless steel surfaces (on some models) Be sure electrical power is off and all surfaces are cool before cleaning any part of Remove any spills, spots, and grease stains using a soft, wet cloth. the cooktop.
  • Page 20: Control Knobs

    Care and cleaning of the cooktop Control knobs Burner grates and components Make sure all surface burner knobs are in the OFF position. Turn off all surface burners and make sure they have all cooled down. Pull knobs off the control valve stems Remove the burner grates.
  • Page 21: Burner Caps And Heads

    Burner caps and heads Burner bases NOTE CAUTION The burner bases cannot be removed for cleaning. Before removing the burner caps and heads, remember their size and location. Replace them in the same location after cleaning. Make sure that no water gets into the burner bases and the brass gas orifices. Wipe clean with a damp cloth.
  • Page 22: Electrodes

    Care and cleaning of the cooktop Electrodes Grates and wok ring CAUTION CAUTION Do not attempt to remove the electrode from the cooktop or burner bases. Do not clean the grates or wok ring in a dishwasher. They will be damaged. Be careful not to push in any cooktop Lift grates out when cool.
  • Page 23: Burner Head And Cap Replacement

    Burner head and cap replacement Round Burner head Orient the burner head so that the opening for the electrode lines up with Dual Burner head the electrode. Orient the burner head so that the opening for the electrode lines up with the electrode.
  • Page 24: Burner Cap

    Care and cleaning of the cooktop Burner cap NOTE Bottom The precise simmer burner (RR) cap and Match the burner caps to the burners by the inner Dual burner (Center) cap are size, and then re-install the caps on the interchangeable.
  • Page 25: Troubleshooting

    Troubleshooting If you encounter a problem with the cooktop, check the tables starting below, and Problem Cause Action then try the suggested actions. Surface The control knob is not set Push in the control knob and Checkpoints burners do properly. turn it to the Lite position.
  • Page 26: Warranty

    LIMITED FIRST-YEAR WARRANTY CANADA*: If your Dacor product malfunctions within one year of the original purchase date, due to material or manufacturing defect, Dacor will furnish a new part, FOB factory FULL TWO-YEAR WARRANTY to replace the defective part. The warranty applies only to the Dacor appliance sold to the original purchaser,...
  • Page 27: Appendix

    Out of Warranty Open Source Announcement If a service issue occurs beyond the standard warranty period, call anyway. Dacor The software included in this product contains open source software. You may reviews each issue and customer concern independently to provide the best obtain the complete corresponding source code for a period of three years after possible outcome for the customer.
  • Page 28 Memo DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 28 2020-05-27 10:57:11...
  • Page 29 We truly hope you enjoy many years of great cooking with your Dacor. If we can be of service, please contact our team at 833-35-ELITE (833-353-5483).
  • Page 30 4. What is your household income? Please rest assured that under no conditions will Dacor sell your name or any of the ‰ A. Under $75,000 ‰ D. $150,000 – $200,000 information on this form for mailing list purposes.
  • Page 31 DG68-01285A-00 Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: 833-35-ELITE (833-353-5483) ∙ Fax: (626) 403-3130 ∙ www.dacor.com DTG36P875N_DG68-01285A-00_EN+MES+CFR.indb 32 2020-05-27 10:57:12...
