Dacor DTG30M954F Sereis User Manual

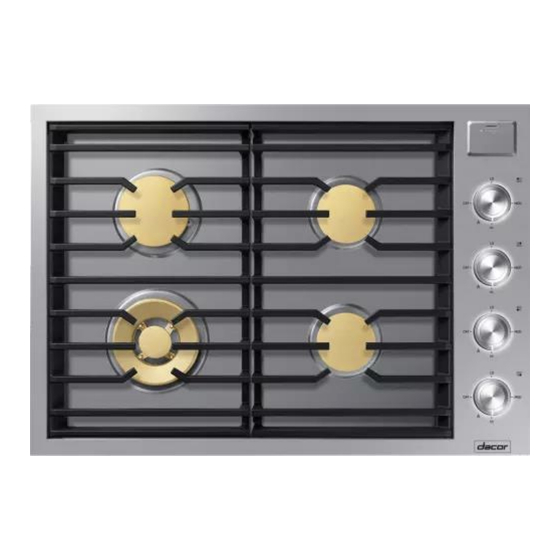

Contemporary gas cooktop
Hide thumbs Also See for DTG30M954F Sereis:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Contemporary Gas Cooktop
DTG30M954F*/DTG36M955F*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTG30M954F Sereis and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor DTG30M954F Sereis

Summary of Contents for Dacor DTG30M954F Sereis

  • Page 1 User Manual Contemporary Gas Cooktop DTG30M954F*/DTG36M955F*...
  • Page 2 WARNING Never Operate the Top Surface Cooking Section of this Appliance Unattended. • Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause property damage, personal injury, or death. • If a fire should occur, keep away from the appliance and immediately call your fire department.
  • Page 3 Website: www.dacor.com Thank you for choosing Dacor for your home. We are a company built by families for families, and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.

  • Page 4: Table Of Contents

    Contents Before you begin About this manual Important note to the installer Important note to the consumer Important note to the servicer Regulatory Notice Important safety instructions Read all instructions before using this appliance Symbols used in this manual Commonwealth of Massachusetts General safety Fire safety Gas safety...
  • Page 5 Care and maintenance Cleaning the cooktop surface Stainless steel surfaces Control knobs Burner grates and components Burner caps and heads Burner bases Electrodes Grates Burner head and cap replacement Troubleshooting Checkpoints Warranty and Service Getting Help Warranty Appendix Model name & serial number Open Source Announcement English 5...

  • Page 6: Before You Begin

    Before you begin About this manual READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY. Important note to the installer • Read all instructions contained in these installation instructions before installing the cooktop. • Remove all packing materials from the cooktop compartments before connecting the electric and gas supply to the cooktop.

  • Page 7: Regulatory Notice

    Regulatory Notice 1. FCC Notice CAUTION FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that cause undesired operation.
  • Page 8 Regulatory Notice • Connecting the equipment to an outlet that is on a different circuit than the radio or TV • Consulting the dealer or an experienced radio/TV technician for help. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 9 IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

  • Page 10: Important Safety Instructions

    Important safety instructions Read all instructions before using this appliance • All electrical and gas equipment with moving parts can be dangerous. Be sure to read the Important Safety Information in this manual. The instructions must be followed to minimize the risk of property damage, injury, or death. •...

  • Page 11: Commonwealth Of Massachusetts

    WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Commonwealth of Massachusetts This product must be installed by a licensed plumber or gas fitter qualified or licensed by the State of Massachusetts. When using ball-type gas shut-off valves, you must use the T-handle type.

  • Page 12: Fire Safety

    Important safety instructions • To avoid fires/explosions if storing combustibles (e.g., dishtowels, paper, cleaning supplies) or packaged/canned food under the cooktop, be sure these items do not contact the bottom of the cooktop. • To prevent gas leaks or inefficient function, make sure the gas line is not compressed or kinked.

  • Page 13: Gas Safety

    Gas safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: Checking for gas leaks Leak-testing the appliance must be done according to the manufacturer’s instructions. Do not use a flame to check for gas leaks. Use a brush to spread a soap-and-water solution around the area you are checking.

  • Page 14: Electrical And Grounding Safety

    Important safety instructions Electrical and grounding safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: • Plug the power cord into a grounded 3-prong outlet. • Do not remove the grounding prong. •...

  • Page 15: Installation Safety

    Installation safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: • The cooktop should be installed and properly grounded by a qualified installer, as specified in the Installation Instructions. Adjustments and service should be performed only by qualified gas cooktop installer or service technician.

  • Page 16: Location Safety

    Important safety instructions Location safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: • This cooktop is for indoor household use only. Do not install the cooktop outdoors or anywhere that it will be exposed to weather/water or wind/strong drafts. •...

  • Page 17: Cooktop Safety

    Cooktop safety WARNING To reduce the risk of fire, electric shock, personal injury, or death, observe these precautions: • Select cookware that is designed for cooktops and that is large enough to cover the grates. Burner flames should not extend beyond the bottom of the cookware. •...

  • Page 18: Usage In High Altitude Area

    Important safety instructions • Always let the oil/fat in the cookware to cool to room temperature before moving the cookware. • To avoid delayed-eruptive boiling, let hot oil/fat stand at least 20 seconds after turning off the burner so the temperature can stabilize. In the event of scalding, follow these first-aid instructions: 1.

  • Page 19: Overview

    Overview Layout 30” Model: DTG30M954F* 36” Model: DTG36M955F* Center Center English 19...
  • Page 20 Overview 30” Model: DTG30M954F* 01 Left Rear 02 Left Front Rapid burner 13000 BTU Dual burner 18500 BTU 03 Right Front / Rear 04 iQ Connect module Semi rapid burner 9500 BTU 05 Grate (2 pcs) 06 Surface burner knobs (4 pcs) 07 iQ Connect button (below knob) 08 Bluetooth button (below knob) 36”...

  • Page 21: What's Included

    What’s included 30” Model: DTG30M954F* Surface burner grates (2)* Surface burners and porcelain caps (4) brass caps (4) 36” Model: DTG36M955F* Surface burner grates (3)* Surface burners and porcelain caps (5) brass caps (5) NOTE If you need an accessory marked with an asterisk(*), you can buy it from the 833-353-5483(USA), 844-509-4659(Canada) English 21...

  • Page 22: Using The Cooktop Burners

    Using the cooktop burners Ignition CAUTION The knob LED indicates if a burner knob has been turned on. It does not indicate if the burner flame is on. Check for an actual flame, although the knob LED is on or off. Make sure all cooktop burners are properly installed.
  • Page 23 Manual ignition If there is a power failure, you can ignite the burner manually. Use caution when doing this. 1. Hold a long, gas-grill lighter to a burner. 2. Push in, and turn the corresponding control knob to Lite, then click the lighter to ignite the burner.

  • Page 24: Cookware

    Using the cooktop burners Cookware Requirements • Flat bottom and straight sides • Tight-fitting lid • Well-balanced, with the pot/pan having the bulk of the weight. Material characteristics Material Heat conduction Comment Some types of food may cause the aluminum to Aluminum Excellent darken.
  • Page 25 Size limitations CAUTION 10 inches 10 inches Do not place a pan or pot with a bottom or more or more 10 inches 10 inches diameter of about 10 inches or more on or more or more the RF or LF burner. 6 inches or 6 inches or CAUTION...

  • Page 26: Installing The Grates

    Using the cooktop burners Installing the grates NOTE The grates are designed for specific placement on the cooktop. For best results, longest life, and maximum stability, install the grates as instructed below. (The openings at the center of each section should be directly over their corresponding burners.) The back of the right grate is notched to help you orient the grates correctly.

  • Page 27: Using The Iq Connect Feature

    Using the iQ Connect feature The cooktop has a built-in Wi-Fi module that you can use to sync the cooktop with the SmartThings app. This app lets you: • Monitor the operating status and the power level settings of the cooktop elements. •...
  • Page 28 Using the cooktop burners NOTE The cooktop’s iQ Connect button is under the LR control knob. If you need to press this button, grasp the LR knob, and pull straight up. iQ Connect LED Indicator iQ Connect button To monitor the cooktop remotely 1.
  • Page 29 • The cooktop continues operating even if the Wi-Fi connection is lost. • iQ Connect will not work properly if the Wi-Fi Connection is unstable. • See the SmartThings app’s user manual for details. You can also visit www.dacor.com where you can view the iQ Connect web manual.

  • Page 30: Using The Hood Control Feature

    Using the cooktop burners Using the hood control feature NOTE The cooktop features a Bluetooth device that connects a hood-control cooktop to certain hood models. In this table, either of the listed hood-control cooktops at left will work with any of the hood models at right.
  • Page 31 NOTE The Bluetooth button is below the RF control knob. If you need to press the Bluetooth button, remove the RF knob by pulling it straight up. Bluetooth button Bluetooth on/off Press the Bluetooth icon on the hood control panel. NOTE •...

  • Page 32: Care And Maintenance

    Care and maintenance WARNING Be sure electrical power is off and all surfaces are cool before cleaning any part of the cooktop. Cleaning the cooktop surface You should clean up spills immediately. 1. Turn off all burners. 2. When the grates have cooled sufficiently, remove them.

  • Page 33: Stainless Steel Surfaces

    Stainless steel surfaces 1. Remove any spills, spots, and grease stains using a soft, wet cloth. 2. Apply an approved stainless steel cleanser to a cloth or paper towel. 3. Clean one small area at a time, rubbing with the grain of the stainless steel if applicable.

  • Page 34: Control Knobs

    Care and maintenance Control knobs Turn off all burner knobs. 1. Pull the knobs off their valve stems. 2. Clean the knobs in warm, soapy water, then rinse and dry them thoroughly. 3. Clean the stainless-steel surfaces using stainless-steel cleaner. 4.

  • Page 35: Burner Grates And Components

    Burner grates and components Turn off all surface burners and make sure they have all cooled down. 1. Remove the burner grates. 2. Remove the burner caps from the burner heads. 3. Remove the burner heads from the valve manifolds to reveal the starter electrodes.

  • Page 36: Burner Caps And Heads

    Care and maintenance Burner caps and heads NOTE Before removing the burner caps and heads, remember their size and location. Replace them in the same location after cleaning. Wash burner caps and burner heads in hot, soapy water and rinse with clean running water.

  • Page 37: Burner Bases

    NOTE • The included dual burner head is not a substitute. One is for LP gas and the other is for LN gas. Use appropriate gas type. - Dual burner head for LP gas is packed with a plastic bag. - The letter For LP or For NG is engraved on the dual burner head.

  • Page 38: Electrodes

    Care and maintenance Electrodes CAUTION Do not attempt to remove the electrode from the cooktop or burner bases. You should never be cooking while you’re cleaning the cooktop. Make sure the white ceramic electrodes are clean and dry. Clean the metal portion with a soft cloth.

  • Page 39: Grates

    Grates CAUTION Do not clean the grates in a dishwasher. They will be damaged. You should wash the grates regularly and after spillovers. They are not dishwasher- safe. To clean the grates, wait until they are cool enough to touch safely, then remove them from the cooktop, and wash them with hot, soapy water.
  • Page 40 Care and maintenance 3. Match the burner caps to the burners by size, and then re-install the caps on the burner heads. CAUTION Each cap fits on a specific burner head. Verify that each cap is installed and lies flat on the correct head. Round Burner head / caps 1.
  • Page 41 NOTE After installing the burners, verify that they will work properly. Improperly installed components will result in poor ignition or uneven flames (as shown in the illustrations). English 41...

  • Page 42: Troubleshooting

    Troubleshooting If the cooktop malfunctions, before calling for service, review the tables in this section for a possible resolution of the issue. Checkpoints Gas safety Problem Possible cause Action You smell gas. The surface burner knob is Turn the burner knob to OFF. not in the OFF position and the burner is not lit.
  • Page 43 Surface burner Problem Possible causes Action All burners do not The cooktop is unplugged. Make sure the power cord is plugged light. into a live, grounded outlet. A fuse may have blown; the Replace the fuse or reset the circuit circuit breaker may have breaker.

  • Page 44: Warranty And Service

    Dacor Authorized Dealer, or other seller authorized by Dacor. If your Dacor product fails to function within two years of the date of delivery to the original consumer purchaser, due to a defect in material or workmanship, Dacor will remedy it without charge to you.
  • Page 45 OUTSIDE THE FIFTY STATES OF THE U.S.A., THE DISTRICT OF COLUMBIA, AND CANADA: LIMITED TWO-YEARS WARRANTY If your Dacor product fails to function within two years from the date of delivery to the original consumer purchaser due to a defect in material or workmanship, Dacor will furnish a new part, F.O.B.
  • Page 46 Out of Warranty Should you experience a service issue beyond the standard warranty period, please contact us. Dacor reviews each issue and customer concern to provide the best possible solution based on the circumstances. THE REMEDIES PROVIDED IN THE ABOVE EXPRESS WARRANTIES ARE THE SOLE AND EXCLUSIVE REMEDIES.

  • Page 47: Appendix

    Appendix Model name & serial number Both the model name and the serial number are labeled underneath the cooktop base. For later use, write down the information onto the current page. Model Name Serial Number English 47...

  • Page 48: Open Source Announcement

    Open Source Announcement The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:oss.request@samsung.com. It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM;...
  • Page 49 We truly hope you enjoy many years of great cooking with your Dacor. If we can be of service, please contact our team at 833-353-5483(USA), 844-509-4659(Canada), extension 2813.
  • Page 50 DG68-00927A-05 Dacor ∙ Phone: 833-353-5483(USA), 844-509-4659(Canada) ∙ www.dacor.com...
