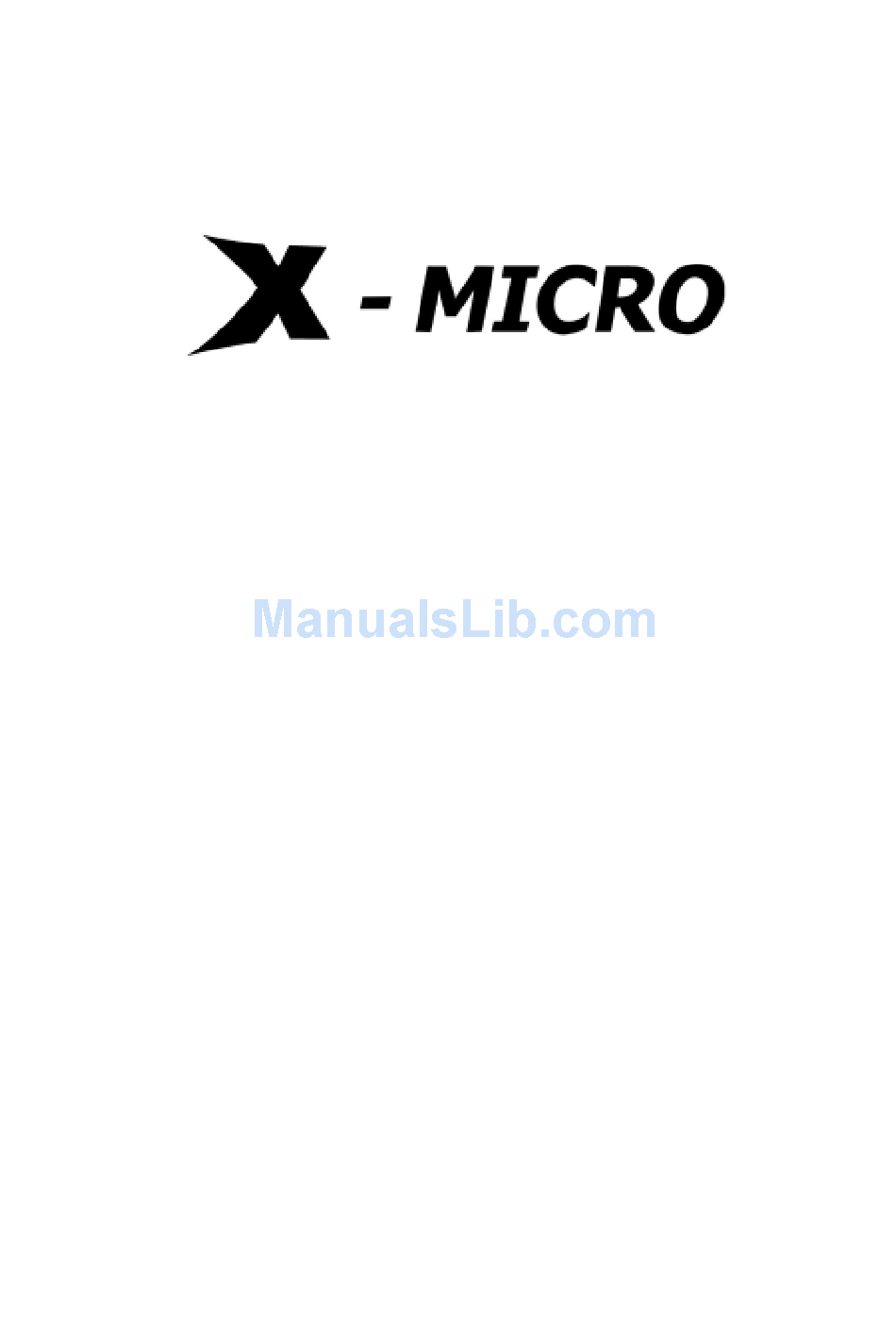

- Page 1 X-Micro EPIC MP3 Player MP3 Music Player+Digital Voice Recorder+USB Flash Drive User Manual V1.2...
-
Page 2: Table Of Contents
5.1 Windows 98 / 98SE Installation ------------------------------------------------------------------------13 5.2 Windows 2000 / ME / XP Installation ------------------------------------------------------------------15 Remove X-Micro EPIC MP3 Player from computer ------------------------------------------------------ 15-16 Linux 2.4.0 + / Mac 8.6 + Installation------------------------------------------------------------------------- 16 MobileMail Function and Installation ------------------------------------------------------------------------- 16-17... -
Page 3: Introduction
X-Micro EPIC MP3 Player is the brand new multi-function MP3/WMA player from our EPIC series. Compared with the single-function MP3 Player, X-MICRO EPIC MP3 PLAYER owns not only the stylish outlook with an EQ built in LCD, but also a high quality digital voice recording function. We successfully combined well-known USB flash drive, popular MP3/WMA player and delicately designed digital voice recorder in one stick. -
Page 4: Illustration Of Function Keys And Lcd Display
-CE and FCC certificate of approval. 2. Illustration of function keys and LCD display USB JACK S1鍵: 開機/多功能按鍵 SW1: Key Lock S2鍵: 音量控制桿 (Write Protect / Button Lock) S3鍵:錄音操作鍵/ S4鍵: 選單控制鍵 S4: Mode Key SW1鍵: 按鍵鎖 S3: Record Button (Record / Repeat Section settings) S2: Volume Control S1: Switch Controller (Power On / Multi-function... - Page 5 Repeat Play: Single / All Play Mode: Play / Pause / Stop Player function: WMA,MP3,DVR Repeat Section Battery Status Key Lock Selection and play time Record Mode Equalizer Settings...
-
Page 6: Quick Start
3. Quick Start MP3/WMA Playback Steps: 1. Press 3 seconds on Switch Controller to turn on the player. 2. LED will blink when you press Switch Controller. After blinking, LCD will show 「HELLO」. 3. If there are already MP3 or WMA files in the Flash Memory, the LCD will show「01 0:00」, and the LED will light up. - Page 7 4. Function & Operation 4.1. MP3/WMA Playback (1) Press Switch Controller to turn on the player. LED will blink. The display will show ｢HELLO｣as Figure 4.1.1. (2) The player will automatically read the content of the Flash Memory. If there are already MP3 or WMA files in the Flash Memory, the display will show as Figure 4.1.2.
-
Page 8: Recording Operation
(8) If no operations occurred for 60 seconds in stop mode, the player will turn off automatically. 4.2. Recording Operation (1) Press Record Button to start recording. LED will keep blinking, and the ”REC” icon will flash, too. Elapsed recording time will be shown in the display. (Figure 4.2.1) (2) To stop record, press Record Button again. -
Page 9: Selection / Fast Forward / Fast Backward
4.3. Selection / Fast Forward / Fast Backward (1) To select during playback, slide Switch Controller upward once for the previous file, and downward for the next one. Playback will start from the beginning of the selection. (Figure 4.3.1) (2) To select in stop mode, slide Switch Controller until the desired selection shows up in the display. -
Page 10: Volume Control
4.5. Volume Control (1) During playback, slide Volume Controller to the left to turn down and right to turn up the volume which will be shown in the display. (Figure 4.5.1) -- Sound Level: 0 ~ 63 (2) To continuously increase or decrease the volume, slide Volume Controller to the right / left and hold. -
Page 11: Menu Operation
4.7. Menu Operation (1) In stop status, press Mode Key to enter Menu selection which contains 3 functions: (i) Equalizer Settings (EQ) (ii) Playback Settings (REP) (iii) File Deletion (DEL) To select, slide Switch Controller up and down and the function will change cyclically as follows: EQ. -
Page 12: Connect To Computer
(4) DEL Menu(Figure 4.7.5): Under file deletion, slide Switch Controller to select among the deletion of a single file or all files with the following cycle: DEL ONE DEL ALL DEL ONE Press Switch Controller again to confirm the setting. (Figure 4.7.6) (5) To delete single file: Choose the file to be delete then select DEL Mode, select DEL ONE and LCD will display “DEL___”... -
Page 13: Key Lock
(5) Remove the unit from the USB port of PC to return the player back to stop mode, and the removable disk will disappear from My Computer. Playing time of the 1 be displayed in the display. (Figure 4.8.3) ※ When file copy / delete through PC is finished, make sure the USB operation has come to a complete stop and the display appears “--PC--“... -
Page 14: Windows 98/98Se Installation
5. How to install driver 5.1 Windows 98/98SE Installation： (1) Plug X-Micro EPIC MP3 Player into USB port. System will detect one new hardware and search for proper driver to install. (2) Choose the first recommend to install. (3) Choose setting up from CD ROM. - Page 15 (4) To execute installation by press “Next”. (5) Press “Finish” to complete installation.
-
Page 16: Windows 2000 / Me / Xp Installation
For these three operating systems, NO Driver is needed, because Windows has built-in driver to support USB removable disk. Simply plug X-Micro EPIC MP3 Player into the USB port and it will be recognized by the system. System will setup X-Micro EPIC MP3 Player automatically without any further installation of driver. -
Page 17: Linux 2.4.0 + / Mac 8.6 + Installation
If you install the driver with X-Micro EPIC MP3 Player plugged, it may cause setup error or failure. (ii) If you plug X-Micro EPIC MP3 Player into the USB port. System can find X-Micro EPIC MP3 Player, but you are unable to access it. Please FORMAT X-Micro EPIC MP3 Player. - Page 18 No part of this document may be reproduced or transmitted in any form by any means without the express written permission of the manufacturer. All brand names and product names used in this document are trademarks or registered trademarks of their respective holders.
- Page 19 www.x-micro.com...
