Summary of Contents for X-Micro XMP3X-F512

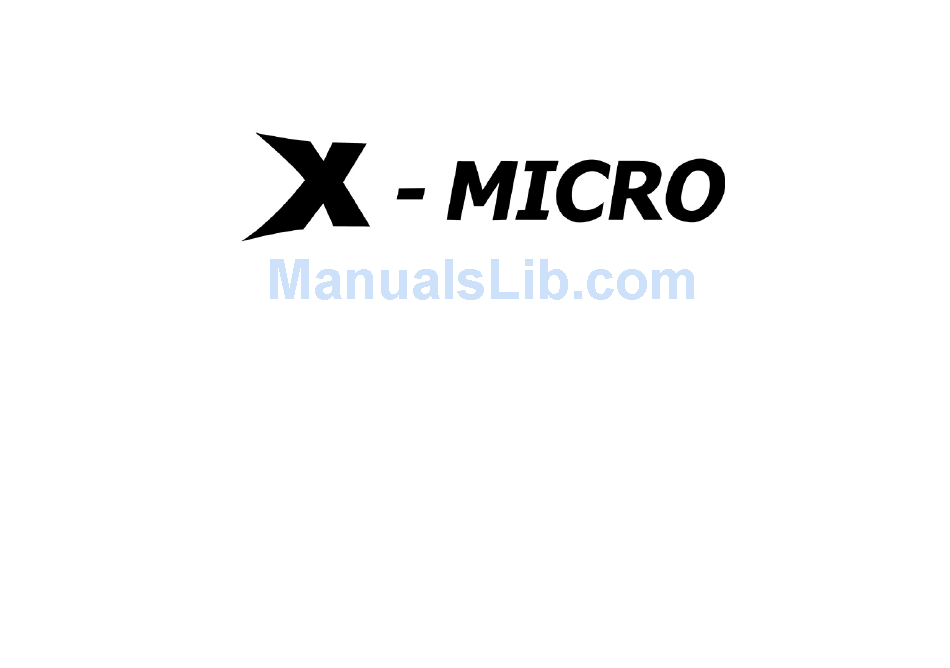

- Page 1 X-Micro EVA 310 MP3 PLAYER User Manual V1.0...
-
Page 2: Table Of Contents
4.1 Connect to PC………………………………………………………………………………….……………5 4.2 Download …………………………………………………………………………………………………6 4.3 Removing USB device…………………………………………………………….………………………6 5. Basic operation…………………………………………………………………………….……………………8 5.1 Buttons and functions…………………………………………………………………….…………………8 5.2 Power on/off……………………………………………………………………………..….…………..……9 5.3 Main menu setup…………………………………………………………………………….………………9 6. How to use the MP3 player……………………………………………………………………………………10 6.1 Playing MP3 files………………………………………………………………...…………………………10 6.2 Voice mode…………………………………………………………………………………………………11 6.2.1 Record function………………………………………………………………..………………………11 Contents... - Page 3 6.2.2 Play voice files…………………………………………………………………………………………11 6.3 FM Tuner………………………………………………………………………………………..…..………12 6.3.1 Playing FM……………………………………………………………………………………..………12 6.3.2 Recording FM………………………………………………………………………………….………13 6.3.3 Setting FM……………………………………………………………………………………..………13 6.4 Function Setting…………………………………………………………………………………….………15 6.4.1 Setting EQ mode………………………………………………………………………………………15 6.4.2 Setting Play mode ……………………………………………………………………………….……15 6.4.3 Setting Contrast………………………………………………………………………………………16 6.4.4 Setting Backlight………………………………………………………………………………………16 6.4.5 Setting Power set……………………………………………………………………………..………16 6.4.6 tting Recording…………………………………………………………………………………..……16 6.4.7 Setting Language……………………………………………………………………….……………17 6.4.8 Back to setting……………………………………………………………………..…………………17 6.5 Preview function…………………………………………………………………………….………………17...
- Page 4 7. Other function…………………………………………………………………………………….……………20 7.1 A-B play mode……………………………………………………………………….……………………20 7.2 Lock function………………………………………………………………………………………………21 7.3 Lyric sync……………………………………………………………………………………….….………21 8. FAQ………………………………………………………………………………………………………………22 9.Technical specifications……………………………………………………………...…………………………24...
- Page 5 Notice: Thank you for choosing our products! Please read this manual carefully to ensure proper operation. Attention: 1. We are trying to perfect everything on this manual when we writing the description, however we cannot ensure there is not any miss or loss. 2.
-
Page 6: Precautions
1. Precautions Never use the player during driving or operating other vehicles to avoid traffic accident, which is also restricted by the law in some districts. Even on foot, it is still dangerous to listen in extremely high volume especially during crossing the street. Wherever with potential risks, please stop using the player for safety purpose. - Page 7 As the software provided by the original equipment manufacturer has the optimum flash storage speed, all players with memory less than 128MB cannot be formatted as FAT-32 in the operating system. Attention: Because of the different memory calculating method and the player software (firmware) is stored in the device flash memory and, it will cause the difference between flash memory marked capacity and real capacity.
-
Page 8: System Requirement
2. System requirement System requirement of MP3 player: Microsoft Windows 98se/2000/Me/XP Pentium 200MHZ or above. USB port 120MB hard disk space Mouse installed CD-ROM drive... -
Page 9: Installation Instruction
3.1Installing driver for Windows 98se (not required for Windows ME or above) Connect the MP3 Player to the USB port of a PC, "Find new hardware" appears on the screen, then click "Search latest driver for this device" and insert the driver CD into CD-ROM, and then click "Next". -
Page 10: Download
4.2 Download Copy the files from other device and paste them into this movable device.LCD screen may display relative icon when transmitting files between the Player and PC. Data transferring 4.3 Removing USB device Double click the Safely Remove Hardware icon in taskbar: From Safely Remove Hardware screen, highlight "USB Mass Storage Device"... - Page 11 Then click "Stop" button. "Stop a Hardware Device" window appears on the screen as shown in the picture below. Click “OK”. After the "Safe to Remove Hardware" window appears, the player can be disconnected from PC safely. Notice: Never unplug the USB cable when transmitting data with PC to avoid damaging the Player; after data transmitting, please do not disconnect the player from PC until "Device now be safely removed"...
-
Page 12: Basic Operation
5. Basic operation 5. 1 Buttons and functions Microphone Earphone jack Hold REC button Next VOL+ Previous VOL- MENU button (10) Play/Pause/Stop (11) USB port... -
Page 13: Power On/Off
5.2 Power on/off From power off mode, press button to power the player on and enter the MP3 standby mode. Keep holding button 3 seconds to power off, the player will save the data and enter power off mode. MP3 standby mode Power off Importance：If the power is directly cut off in standby mode or play back process, all the data set can’t be saved! -
Page 14: How To Use The Mp3 Player
6. How to use the MP3 player 6.1Playing music From MP3 standby mode, you can press the button again to pause. To resume playing, please press the From play or pause mode, press and hold the standby mode, press and hold the... -
Page 15: Voice Mode
6.2 Voice mode 6.2.1Record function From MP3 mode or voice standby mode, keep pressing REC button to begin recording, press the button to pause recording. Repress the REC button to stop and save the voice file in wav format then come into the voice standby mode. -
Page 16: Fm Tuner
From voice standby or play mode, you can press the file. From STOP status, you can push and hold the From Play mode, you can push and hold From voice standby mode, press the 6.3 FM Tuner 6.3.1 Playing FM From MP3 playing, voice playing or standby mode, you can press the MENU button to enter the main menu, and push the select FM tuner mode, press the... -
Page 17: Recording Fm
6.3.2 Recording FM From FM playing mode, you can keep pressing the REC button 2 seconds to begin recording. The FM track will be recorded in WAV format. Press the button to pause recording. Repress the REC button to finish recording and the player will return to the FM Tuner screen. - Page 18 Save station: Under the FM menu, push the button to enter. Repress the Delete station: Under the FM menu, push the button to enter. Repress the Auto scan: Under the FM menu, push the button to begin scanning the stations automatically and playing under the nearest station. Exit: Return to FM playing mode.
-
Page 19: Function Setting
6.4 Function Setting From MP3 mode or voice standby mode, press the MENU button to enter the main menu, and push the button to select and press the EQ mode, Play mode, Contrast, Backlight, Power set, Record set, Language and Exit. You can press the button to save. -
Page 20: Setting Contrast
6.4.3 Setting Contrast Under the setting mode. Push the Press the button to save the selected setting. 6.4.4 Adjusting Backlight Under the setting mode. Push the including: Off, 5s, 10s, on. Press the 6.4.5 Setting Power set Under the setting mode. Push 2m, 10m, 30m, off. -
Page 21: Setting Language
6.4.7 Setting language Under the setting mode. Push the selected language.This function depends on the software. 6.4.8 Back to setting Return to the setting menu. 6.5 Preview function From MP3 mode or voice standby mode, you can press the MENU button to enter the main menu, and push the then press the button to begin previewing. -
Page 22: Folder Function
6.7 Folder function From MP3 mode or voice standby mode, you can press the MENU button to enter the main menu setting, push the button to select folder function, press the the root directory appears on the screen, and then you can push the or and folder. - Page 23 d. To return to the upper directory, please select the e. To exit from folder mode, please select the f. To play the tracks in MTP MEDIA, please refer to the DRM function to learn how to transform the DRM tracks first.
-
Page 24: Exit
6.8 Exit Return to MP3 mode. Note: From setting mode, you can press the MENU button to exit the setting mode quickly. 7. Other functions 7.1 A-B Play Mode From MP3 or voice mode: Press the REC button to select starting point A. Press the REC button to select end point B, then it will repeat between A-B. -
Page 25: Lock Function
7.2 Lock function From MP3 and voice standby/ play/ pause/ record mode, you can push the HOLD switch opposite the arrow to lock all the other buttons with a Lock icon on the LCD accordingly. If you want to use other buttons, please push the HOLD switch to the opposite direction of arrow. -
Page 26: Faq
8. FAQ Problem No display after Without installing battery or pressing the power battery low. button. Without sound 1. Volume is too low or when playing without music in your player. music. 2. Battery low. 3. MP3 or WMA file is corrupt. Can’t download 1. - Page 27 Can’t play the The MP3 files currently are private compressed compressed with different MP3 files. compress rate and format, while this Player supports standard compressed MP3 only, please do not adopts layer one or two compression. No response after HOLD switch is on, buttons pressing button.
-
Page 28: Technical Specifications
9. Technical specifications Bit rate Dynamic range Distortion Output Condition of storage USB interface Memory Size Working condition Battery life Weight 32~320Kbps(MP3)32-192Kbps(WMA) >90db >80(1KHZ) <0.05% (REFERENCE LEVEL:0dB（MP3） 1 mW, 4mW -52dB/-62dB（VOICE, REFERENCE FREQUENCY:1KHZ） 5mW*2 Humidity<90%, normal temperature USB2.0High speed 128MB/256MB/512MB/1GB/2GB 82*27*20mm Humidity <85%, -10~40℃... - Page 29 www.x-micro.com...
