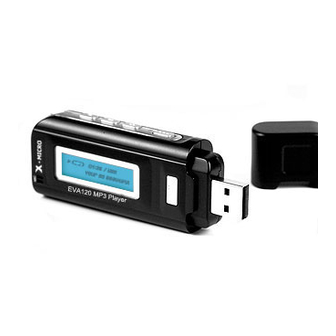

- Page 1 X-MICRO EVA 120 MP3 PLAYER User’s Manual V1.0 Downloaded from ManualMPlayer.com Manuals...
-
Page 2: Information To User
INFORMATION TO USER Product Name: X-MICRO EVA 120 MP3 PLAYER Model Name: XMP3A-F512, XMP3A-F1G, XMP3A-2G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accpt any interference received, including interference that may cause undesired operation. - Page 3 Copyright Copyright 2006 by X-Micro Technology Corp., All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means,...
-
Page 4: Table Of Contents
INDEX Introduction ……………………………………………..……4 Installing the MP3 Player………………………………..….5 Transfer data to and from the MP3 Player……………….6 Listen to WMA/MP3 music files with the MP3 Player ….. 7 MP3 Player Controls………………………………………….8 LCD Display …………………………………………………...9 Voice Recorder………………………………………………10 Advanced Settings………………………………………….15 Upgrade the Firmware………………………………………20 Removing the MP3 Player from your computer……….21 Trouble Shootings ………………………………………….22... -
Page 5: Introduction
1. Introducing The MP3 Player incorporates a portable WMA/MP3 Player, Voice Recorder , FM tuner(Optional) and USB Mass Storage Device . MP3 Player Features: • WMA/MP3 player. • Synchronous lyric display with WMA/MP3 music. • Voice recorder. • FM Radio with 20 preset •... -
Page 6: Installing The Mp3 Player
2. Installing the MP3 Player Installation of drivers for computers using Windows Me/2000/XP is not necessary. Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is required only if you wish to upgrade the firmware of the player. Note for Windows 2000 users: Windows Service Pack 3 must be installed . -
Page 7: Transfer Data To And From The Mp3 Player
3. Transfer data to and from the MP3 Player. 1. Make sure that the MP3 Player is turned off. 2. Remove the USB port cover & disconnect the earphone. 3. Plug the MP3 Player into the USB port of your computer. -
Page 8: Listen To Wma/Mp3 Music Files With The Mp3 Player
4. Listen to WMA/MP3 music files with the MP3 Player 1. Follow the instructions for the transfer of data to and from the MP3 Player to copy WMA/MP3 music files to the MP3 Player. 2. Install 1 AAA/LR03 battery into the battery compartment. 3. -
Page 9: Mp3 Player Controls
5. MP3 Player Controls A. USB Port Cover B. Headphone Socket C. A-B / Menu Button D. Skip Previous / Fast Rewind E. Skip Next / Fast Forward F. Power Off/Stop G. Power On/Play/Pause H. Hold Switch I. Volume Down J. -
Page 10: Lcd Display
6. LCD Display a. Track Number / Total Tracks b. Repeat all c. Random d. Hold e. Play/Pause/Stop/Rec. f. Music Type g. ID3 Tag display h. Elapsed Time/ Track Time i. Music Mode/ Voice Mode j. Repeat one k. Equalizer l. -
Page 11: Voice Recorder
7. Voice Recorder Record voice 1. Select Record in the LCD menu list to begin recording. 2. Press the Stop or Menu button to stop the recording and enter Voice mode. The voice recording will have been saved as a file named Vxxx.WAV in the Voice folder. - Page 12 disappears from the display. To exit FM radio mode, press and hold the A- B/Menu button. Exit to music mode from FM mode Press and hold the A-B/Menu button for a while and release it. The MP3 Player will exit FM tuner mode and go back to music mode. Listen to FM radio After the FM tuner finishing the automatic seeking, the MP3 Player tuner will stop at the first FM station of preset 01 (P01).
- Page 13 1. Select "Add to Preset" in the FM menu and press the A-B/Menu button. 2. Use the Skip control pad to decide a preset will be used for current FM radio. 3. Press the A-B/Menu button to save. Note: The unit can save 20 preset stations. Load Preset To select a FM radio station from the preset list to listen, 1.
- Page 14 The player searches for the nearest station. When it finds one, it stops and plays the station. Note: If this station is in the preset list, the corresponding preset number (e.g. P02) will display on the LCD. To tune manually, Use the Skip control pad. Each time the Skip control pad is pressed, the player changes the frequency by 0.1MHz.
- Page 15 Hold Function Use the Hold function to deactivate the MP3 Player controls (to avoid accidental activation). 1. To activate the Hold function, slide the Hold switch. 2. Slide the Hold switch back to turn off the Hold function. Note: The MP3 Player will turn off automatically if the key is hold when turning on the power.
-
Page 16: Advanced Settings
8. Advanced Settings To navigate the settings menu. 1. Press & hold the A-B/Menu button for a while and release it to enter the settings menu. 2. Press the Skip buttons to choose a setting. 3. Press the A-B/Menu button to select that setting. - Page 17 Adjust LCD Contrast To adjust the LCD contrast 1. In the settings menu, select Contrast. 2. Press the Skip buttons to adjust the contrast level. 3. Press the A-B/Menu button to go back to setting menu. Backlight To adjust the backlight 1.
- Page 18 1. In the settings menu, select Record . 2. Press the Skip buttons to select "Source". 3. Press the Skip buttons to select "Encoder". Press the A-B/Menu button repeatedly to select a recording format. 4. Press the Skip buttons to select "Rate". Press the A-B/Menu button repeatedly to cycle through the available Recording Sampling Frequencies.
- Page 19 Language select 1. Press the Menu button. 2. Slide the Menu button left or right to select Settings and press the Play button. 3. In the Settings menu Slide the Menu button left or right to select Language and press the Play button. 4.
- Page 20 About Information is available regarding the firmware version, built-in memory size and free memory size. 1. Select About in menu list. 2. The firmware version and Internal Media info appears. 3. Press the Skip buttons to read the Free memory space. 4.
-
Page 21: Upgrade The Firmware
9. Upgrade the Firmware The firmware in the player can be updated through the Firmware Download utility running on your PC. To update the firmware, Please browse X-MICRO website for latest Firmware Download Utility. The Firmware Utility must be installed to use the Upgrade. -
Page 22: Removing The Mp3 Player From Your Computer
10. Removing the MP3 Player from your computer 1. Click on the Safely Remove Hardware icon in the taskbar (next to the clock). 2. Click on Safely remove USB Mass Storage Device. 3. Wait until a Safe to Remove Hardware message is displayed. 4. -
Page 23: Trouble Shootings
11. Trouble Shootings The LCD displays nothing after turning on the MP3 player. 1 Check to see if the battery has been inserted; 2 Check to see if the battery needs replacement: Try reinserting the battery correctly or replace it. 3 If it still does not work, go to next step. - Page 24 In order to play these encrypted WMA files in your MP3 player, you will need to use the Windows Media player to copy them to your MP3 player. The traditional “Drag & Drop” method will not work. Here is what you have to do: ...
-
Page 25: Specifications
12. MP3 Player Specifications • Internal Memory Built-in 128MB, 256 MB, 512 MB, 1 GB or 2GB (10 MB reserved for firmware and system management) • Interface • Power 1 x AAA Battery Battery continuous playing time: Up to 8 hours •... - Page 26 Flash based. User upgradeable. Downloaded from ManualMPlayer.com Manuals...
-
Page 27: Safety
14. Contact Us If you have any problems or questions regarding the player, please visit us at http://www.x- micro.com To contact Technical support: Visit: http://www.x-micro.com E-mail: support@x-micro.com Downloaded from ManualMPlayer.com Manuals... - Page 28 Downloaded from ManualMPlayer.com Manuals...
