OPERATING AND MAINTENANCE MANUAL
Product:
Type:
DESIGNED AND MANUFACTURED BY:
T & R Test Equipment Limited
15-16 Woodbridge Meadows, Guildford, Surrey, GU1 1BJ, United Kingdom
Telephone: 01483 207428
Fax:
01483 511229
High Voltage AC Test Set
KV5-100 mk3
0
e-mail:
sales@trtest.com
Web:
www.trtest.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for T&R KV5-100 mk3
Summary of Contents for T&R KV5-100 mk3

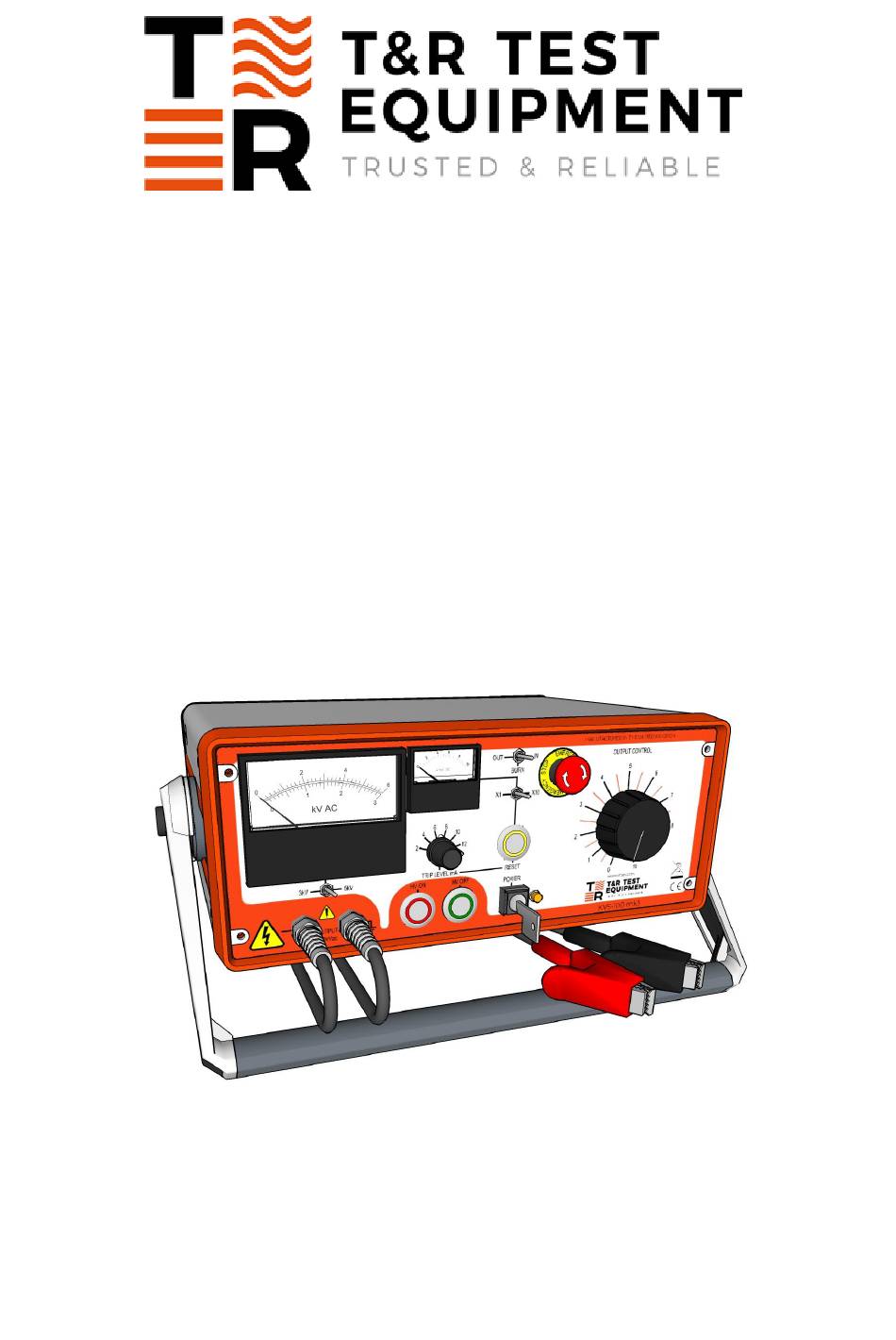

- Page 1 OPERATING AND MAINTENANCE MANUAL Product: High Voltage AC Test Set Type: KV5-100 mk3 DESIGNED AND MANUFACTURED BY: T & R Test Equipment Limited 15-16 Woodbridge Meadows, Guildford, Surrey, GU1 1BJ, United Kingdom Telephone: 01483 207428 e-mail: sales@trtest.com Fax: 01483 511229 Web: www.trtest.com...
- Page 3 GENERAL SAFETY STATEMENT The following safety precautions should be reviewed to avoid injury to the user and damage to the product (and other products connected to it). To avoid potential hazards only use this product as specified. • Only suitably qualified personnel should use this equipment. Servicing of this product should only be carried out by suitably qualified service personnel.
- Page 4 It is essential that the KV5-100 mk3 series test sets are only used in a suitable test environment. EN50191:2010 (Erection and Operation of Electrical Test Equipment) provides information on the installation and use of test installations and is referenced by health and safety law in the EU.
- Page 5 SAFETY TERMS AND SYMBOLS The following safety symbols appear on the equipment: CAUTION/WARNING – Refer to manual DANGER – High voltage Mains off Mains on The following safety symbols appear in this manual: This action or procedure may be dangerous if not carried CAUTION out correctly, and may cause damage to the equipment or connected equipment.
-
Page 6: Table Of Contents
CONTENTS DESCRIPTION OF EQUIPMENT Electrical Specification 1.1.1 Supply Requirements 1.1.2 Output Specifications 1.1.3 Zero Voltage Interlock 1.1.4 External Interlock Output Voltage Control Overload Protection 1.3.1 Variable overload Metering Fault Burn Facility 1.5.1 Fault Burning 1.5.2 Burn Switch High Voltage Connection Construction OPERATION Safety... - Page 7 MAINTENANCE STANDARD ACCESSORIES OVERALL PERFORMANCE SPECIFICATION REVISION...
-
Page 8: Description Of Equipment
DESCRIPTION OF EQUIPMENT Electrical Specification 1.1.1 Supply Requirements KV5-100 mk3 115/230V 10% 600VA max 1.1.2 Output Specifications The output voltage, current and duty cycle are as follows: Output current Unit Output voltage 5 min on/ 1 min on/ 40 seconds on/... -
Page 9: Overload Protection
The trip levels are adjustable in two ranges each of 6 steps giving 2-12% and 20-120% rated current. Trip current ranges Unit KV5-100 mk3 2, 4, 6, 8, 10, 12mA 20, 40, 60, 80, 100, 120mA The range change and selector switches are located on the front panel of the instrument. The circuit will activate when the load current exceeds that set by the trip level selector switch. -
Page 10: Metering
The equipment is provided with the following metering ranges using analogue moving coil meters: Metering Ranges Unit Voltage Current High KV5-100 mk3 10mA 100mA The ranges on both instruments are selected by means of switches located on the front panel. -
Page 11: Fault Burn Facility
Fault Burn Facility The KV5-100 mk3 is provided with an internal current limit circuit which limits the output current from the unit under short circuit conditions. This can be used to “burn” faults. 1.5.1 Fault Burning Fault burn is where the arc is maintained through the failed test object. The product does this by limiting the current and preventing the unit from tripping. -
Page 12: Operation
Remove and rotate fuse carrier until desired supply voltage is seen through the fuse drawer window. The KV5-100 mk3 is suitable for 2 different supply voltages as follows: 240V or 115V. Replace fuse drawer once the desired voltage has been selected. -
Page 13: Operation
Safe working procedures must be implemented to accepted standards. 2.1.2.1 Interlocks The KV5-100 mk3 series is provided with an external interlock circuit that may be used to link to interlock switches on the high voltage test area. An interlock should be considered to be a safety back-up feature. An interlock should not be regarded as a substitute for adequate safety rules and proper operator vigilance. -
Page 14: Front Panel Control Functions
2.2.1 Front Panel Control Functions kV Meter Displays output voltage mA Meter Displays load current mA x1/x10 selector switch Selects mA meter range Burn switch Selects burn facility Trip reset switch Resets the output current trip HV Output lead HV output to object under test kV meter range switch Selects kV meter range Earth output lead... -
Page 15: Rear Panel Layout
Rear Panel Layout Figure 2.2 KV5-100 mk3 rear panel 2.2.2 Rear Panel Control Functions Output fuse Fuse for output voltage Interlock socket For connection to an external interlock system Main power input Selects mA meter range Input fuse/Voltage selector Mains input fuse and selects mains input voltage (see 2.1.1.3.1) -
Page 16: Operation
2.4.2 Operation Switch on the key-operated mains switch. The following will now occur: Power ON lamp will be lit HV OFF lamp will be lit The variable overload reset lamp will be lit Press the variable overload reset push button. This will arm the trip circuit. Select the desired voltage range on the kV meter and set the desired overload trip level. - Page 17 MAINTENANCE Maintenance and repair of the KV5-100 mk3 series must only be carried out by suitably qualified and trained personnel. Potentially lethal voltages are present inside the unit and on the output leads. Ensure that the unit is disconnected from the mains before removing WARNING any covers.
- Page 18 STANDARD ACCESSORIES The following items are provided with the equipment: Mains input lead. 2 keys (for mains ON/OFF switch). Operating & Maintenance Manual. 1x F5A 1¼ inch fuse and 1x T4A 20mm fuse: KV5-100 mk3...
- Page 19 OVERALL PERFORMANCE SPECIFICATION Insulation resistance at 500V DC: >10 megohms between mains input and frame. Applied voltage test: 2.0kV RMS for 1 minute between mains input and frame. Accuracy of instruments kV meter: ±1.5% of FSD mA meter: ±2.5% of FSD Instrument calibration is traceable to national standards.
- Page 20 REVISION Product / Type: KV5-100 mk3 series High Voltage AC Test Systems File: KV5-100mk3 series manual v1 Author: P Cole Issue / Date: 1 18/09/20 Modified By: M. Clancy Checked By: G Bond Date: 06/10/20...
- Page 21 Circuit diagram A2/002174 KV5-100 mk3...
