Summary of Contents for T&R KV30-40D mk3

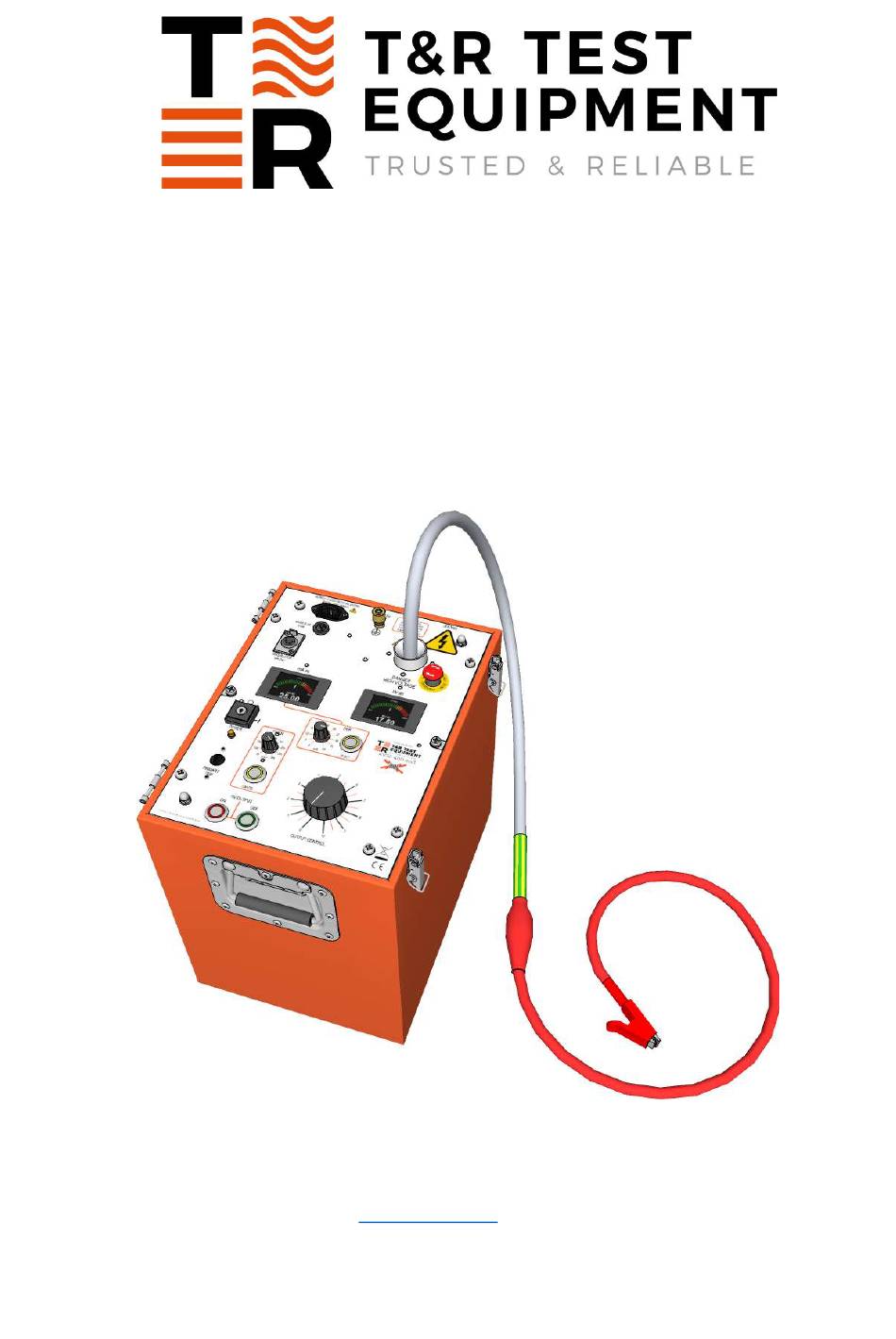

- Page 1 OPERATING AND MAINTENANCE MANUAL Product: High Voltage AC Test Set Type: KV30-40D mk3 or KV15-80D mk3 DESIGNED AND MANUFACTURED BY: T & R Test Equipment Limited 15-16 Woodbridge Meadows, Guildford, Surrey, GU1 1BJ, United Kingdom Telephone: 01483 207428 e-mail: sales@trtest.com...
- Page 3 GENERAL SAFETY STATEMENT WARNING The following safety precautions should be reviewed to avoid injury to the user and damage to the product (and other products connected to it). To avoid potential hazards only use this product as specified. Only suitably qualified personnel should use this equipment. Servicing of this product should only be carried out by suitably qualified service personnel.
- Page 4 It is essential that the KV30-40D mk3 and KV15-80D mk3 series test sets are only used in a suitable test environment. EN50191:2010 (Erection and Operation of Electrical Test Equipment) provides information on the installation and use of test installations and is referenced by health and safety law in the EU.
- Page 5 SAFETY TERMS AND SYMBOLS The following safety symbols appear on the equipment: CAUTION/WARNING – Refer to manual DANGER – High voltage Mains off Mains on The following safety symbols appear in this manual: This action or procedure may be dangerous if not carried out CAUTION correctly, and may cause damage to the equipment or connected equipment.
-
Page 7: Table Of Contents
CONTENTS DESCRIPTION OF EQUIPMENT Front Panel Overview Electrical Specification 1.2.1 Supply Requirements 1.2.2 Output Specifications 1.2.3 Zero Voltage Interlock 1.2.4 External Interlock Output Voltage Control Overload Protection 1.4.1 Variable Overload Metering Construction OPERATION Safety 2.1.1 Installation 2.1.2 Operation Connections (See Figure 2) Method of Operation MAINTENANCE Removal of Unit from Case... -
Page 9: Description Of Equipment
DESCRIPTION OF EQUIPMENT The KV30-40D mk3 is a flexible high voltage AC test system, capable of producing 30kV into a variety of loads with a maximum of 40mA of current. The KV15-80D mk3 is a similar high voltage AC test system, capable of producing 15kV into a variety of loads with a maximum of 80mA of current. -
Page 10: Front Panel Overview
Front Panel Overview Figure 1.1 KV30-40D mk3 front panel... - Page 11 Item Function Earth Terminal Connect the unit to a local ground for safety Mains Input Connector Mains supply Mains Input Fuse Protection Interlock Connector Connect the unit to an external interlock circuit mA Digital Meter Display mA metering Mains On/Off Switch Key operated mains switch Mains Lamp Mains on indicator...
-
Page 12: Electrical Specification
1.2.4 External Interlock The KV30-40D mk3 and KV15-80D mk3 is fitted with a 24Vdc external interlock socket. This interlock prevents the output being energised unless an external circuit is closed. The interlock circuit may also be used to connect normally closed emergency off switches to the unit wired in series with any interlock switches. -
Page 13: Output Voltage Control
Output Voltage Control The output is controlled from zero by means of a regulating transformer. The transformer is operated by means of a control knob which is located on the front panel. To increase the output voltage the knob is turned in a clockwise direction. Overload Protection The equipment is fitted with fixed and variable overload protection circuits as standard. -
Page 14: Metering
HV circuit. It is also fitted with a mA meter that meters the output current in the earthy end of the HV side of the output transformer. KV meter mA meter Unit type Resolution Resolution KV30-40D mk3 40kV 0.01kV 50mA 0.01mA KV15-80D mk3 20kV 0.01kV... -
Page 15: Operation
OPERATION Safety The outputs from the KV30-40D mk3 and KV15-80D mk3 are extremely dangerous, and if used incorrectly could be fatal. The unit must only be installed, operated, and maintained by suitably qualified and trained (skilled) personnel. It is essential to follow accepted safety procedures, and local health and safety regulations and guidelines when installing and operating high voltage equipment. - Page 16 An interlock should be considered to be a safety back-up feature. An interlock should not be regarded as a substitute for adequate safety rules and proper operator vigilance. 2.1.2.2 Grounding of the high voltage output A temporary ground should be applied to the high voltage output when the circuit has been de- energised using the earth stick provided.
- Page 17 The prohibition zone distances for the units are shown below. Unit Voltage Prohibition zone KV30-40D mk3 30kV 170mm KV15-80D mk3 15kV 85mm EN50191:2010 also details suitable barrier types and heights such that the prohibition zone cannot be reached by personnel.
-
Page 18: Connections (See Figure 2)
Connections (See Figure 2) Before making any connections, please ensure that you are aware of all hazards relating to the system and environment in which it is operating. The input lead on the control unit should be connected to a suitable three pin supply connector. Connect the earth lead from a reliable, efficient earth to the earth terminal on the equipment. -
Page 20: Method Of Operation
Method of Operation Connect the equipment as described in Section 2.2. Remove the mains power switch operating key before connecting the equipment to the main supply. This will ensure the equipment is in the OFF position as the key is only removable in that position. -
Page 21: Maintenance
MAINTENANCE The equipment's output cable should be kept clean and inspected regularly for damage. This applies especially to the unscreened portion of the output cable. All cables and equipment in a high voltage test area should be inspected before use. Removal of Unit from Case a. -
Page 22: Standard Accessories
STANDARD ACCESSORIES Spare fuses supplied 1 off T10A The following items are provided with the equipment: Mains input lead. 2 keys (for mains ON/OFF switch). Interlock plug with link fitted. 5 metre earth lead fitted with clip and tag. Type ES30-40 earthing stick. 2 tommy bars. -
Page 23: Overall Performance Specification
OVERALL PERFORMANCE SPECIFICATION Insulation resistance at 1000V DC Not less than 10 megaohms between mains input and frame. Applied voltage test 2kV RMS for 1 minute between mains input and frame Accuracy of instruments KV meter ±1.5% of full scale mA meter ±1.5% of full scale H V Transformer 2.5kV RMS for 1 minute between primary and earth... -
Page 25: Revision
REVISION Product/Type: High Voltage AC Test Set KV30-40D mk3 or KV15-80D mk3 File: KV30-40D mk3 and KV15-80D mk3 manual v1 Author: G. Bond Issue/Date: Issue 1 22/06/2020 Modified By: M. Clancy Checked By: G. Biggs Date: 22/02/20... - Page 26 Drawings required A2/002158 latest issue KV30-40D mk3 A2/002165 latest issue KV15-80D mk3...
