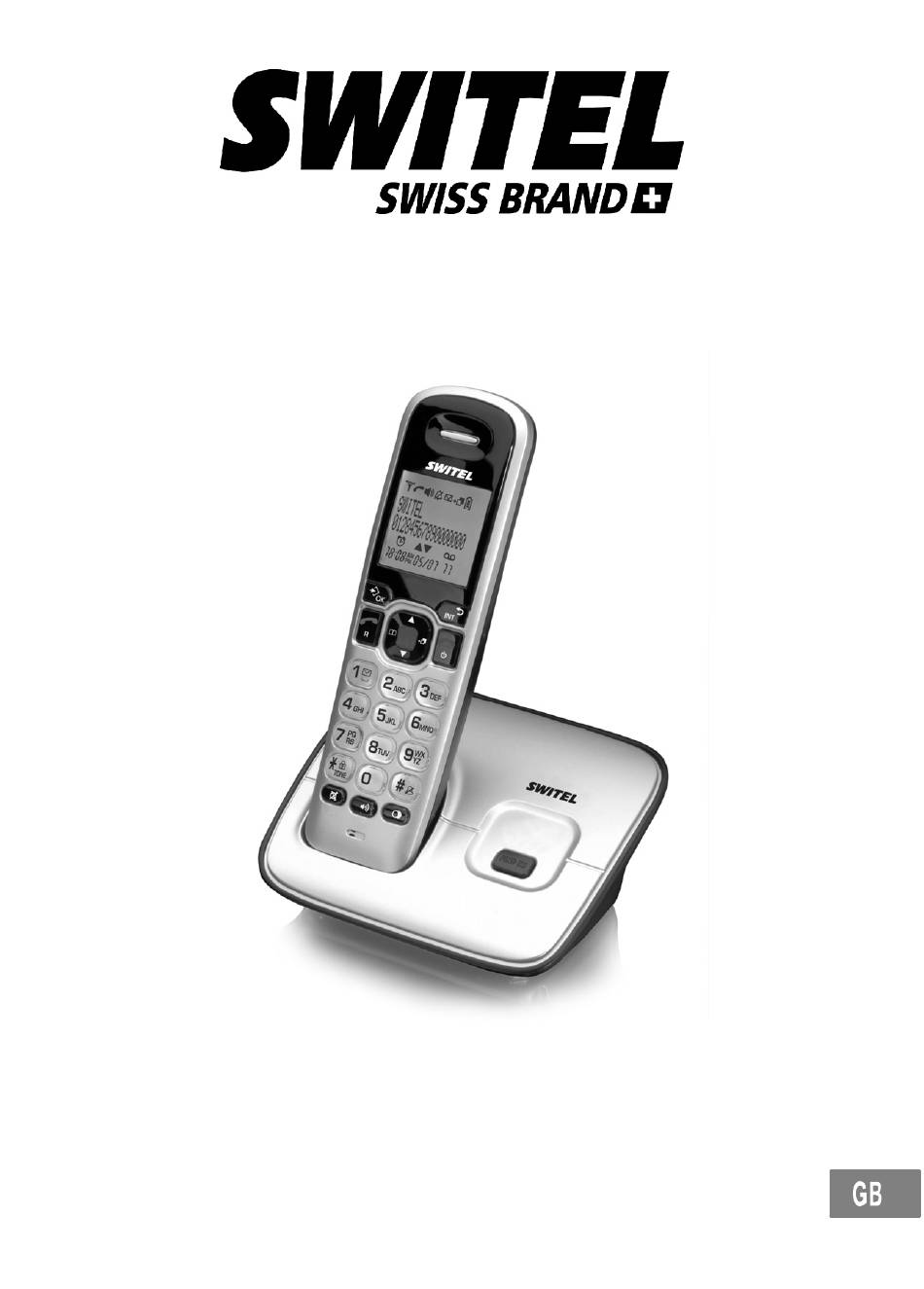

- Page 1 Low radiation cordless DECT/GAP telephone DF150x Operating Intructions...
- Page 2 Safety Information Safety Information Please read this operating instruction manual thoroughly. Intended use The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself. Installation location Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.
- Page 3 Model DF150x Content 1501 1502 1503 1504 Base station with power adapter plug Charging station with power adapter plug − Handset Telephone connection cable Rechargeable battery pack Operating instructions Visit www.switel.com to find out whether the telephone/telephone set is already available.
- Page 4 Preparing the Telephone Connecting the base station Attention: Position the base station at least 1 m away from other electronic de- vices, otherwise there is a risk of mutual disturbance. Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection cable supplied.
- Page 5 Preparing the Telephone Charging the batteries Before the handset is used for the first time, insert it in the base/charging station for at least 15 hours. When the handset is properly inserted in the base station / charging station, you will hear an acoustic signal.
- Page 6 Operating Elements Operating Elements The buttons in this operating manual are subsequently depicted with a uniform contour. Therefore, slight deviations in the appearance of the symbols on the telephone buttons compared to those depicted here are possible. Handset Loudspeaker LC display Back / delete / internal calls On−hook button / Standby mode /...
- Page 7 Preliminary Information Preliminary Information This chapter provides basic information on using the operating instruction manual and the telephone. Description of operating sequences in the manual Display Description Displays the contour of buttons Press the button depicted briefly 3 sec. # Press the button depicted for 3 seconds ë...
- Page 8 Preliminary Information Icon Description On: The connection to the base station is good. Flashing: The connection to the base station is interrupted. Move nearer to the base station. Answering machine provided in the telephone network. VMWI − Sup- plementary service offered by telephone network providers; .
- Page 9 Phone Book Creating phone book entries − example The way in which to navigate through the menus and select settings is explained by means of the example Creating phone book entries. Proceed as in this example for all the set- tings.
- Page 10 Calls List Editing phone book entries Open the phone book K / L Select an entry Open the menu EDIT ENTRY , G Select submenu and confirm ë, G ENTER NAME Edit the name (max. 12 characters) and confirm ë, G ENTER NUMBER Edit the phone number (max.
- Page 11 Telephoning Copying a phone number from the calls list to the phone book A phone number in the calls list can be stored in the phone book directly. Open the calls list K / L, G Select an entry and confirm COPY TO PB , G Open the menu and confirm ë, G...
- Page 12 Telephoning Redialling The telephone stores the last 10 numbers dialled in a redialling list. D, K / L Open the redialling list and select an entry E or C Dials the number Editing phone numbers in the redialling list is identical to editing phone numbers in the calls list (.
- Page 13 Telephoning Holding a call / brokering While a call is in progress, it is possible to dial another handset in order to consult with someone. The external caller is put on hold while you converse with the second, internal person called. You can repeat this procedure as often as required. HS1: H, K / L G Initiate internal call and select a handset HS2: E...
- Page 14 Menu Structure Searching for the handset (Paging) If you have mislaid your handset, you can sound a paging tone to find it. At the base station $, {í} Start the paging tone $ or F Stop the paging tone Switching the handset off and on You can switch the handset off to save the batteries.
- Page 15 Special Functions BS SETTINGS ë NEW PIN CODE ë PIN CODE PIN CODE CONFERENCE ON/OFF WAITING... RESET CONFIRM? LINE SETTINGS COUNTRY UK / ÉIRE / DEUTSCHLAND/ SWITZERLAND / FRANCE / BELGIUM / ITALIA / ESPAÑA/ NEDERLAND RECALL TIME SHORT / MEDIUM / LONG FIRST RING ON/OFF DIAL MODE...
- Page 16 PABX Systems / Supplementary Services PABX Systems / Supplementary Services R−functions on private branch exchanges If your telephone is connected to a private branch exchange (PABX), functions such as call forwarding or automatic call back can be used via the E button. Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions.
- Page 17 PABX Systems / Supplementary Services Dialling pause When using private branch exchanges, it is necessary to dial an access code to obtain the dialling tone for an outside line. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. In the case of such private branch ex- changes, a dialling pause can be inserted after the number for an outside line in order to continue dialling directly without having to wait for the dialling tone.
- Page 18 The internationally approved GAP standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate SWITEL devices and devices from other manufacturers together in one telephone system. It is poss- ible, however, that some functions are not available.
- Page 19 In Case of Problems In Case of Problems Service Hotline Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, Tel. 0900 00 1675 with- in Switzerland (Swisscom fees at time of going to print: CHF 2.60/min).
- Page 20 CE mark on the device. To view the complete Declaration of Conformity, please refer to the free down- load available on our web site at www.switel.com. DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless telephones.
- Page 21 Do not use any cleaning agents or solvents. Guarantee SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble−free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any in- terposed private branch extension system.
- Page 22 Notes Notes...
- Page 23 Notes Notes...
- Page 24 Cet équipement est conforme à la directive européenne R&TTE. Pour obtenir la déclaration de conformité intégrale, veuillez vous servir du téléchargement gratuit de notre site Internet www.switel.com. Quest’apparecchiatura è conforme alla direttiva europea R&TTE. Per la dichiarazione di conformità completa si prega di voler usufruire del servizio gratuito di download dal nostro sito Internet www.switel.com.
