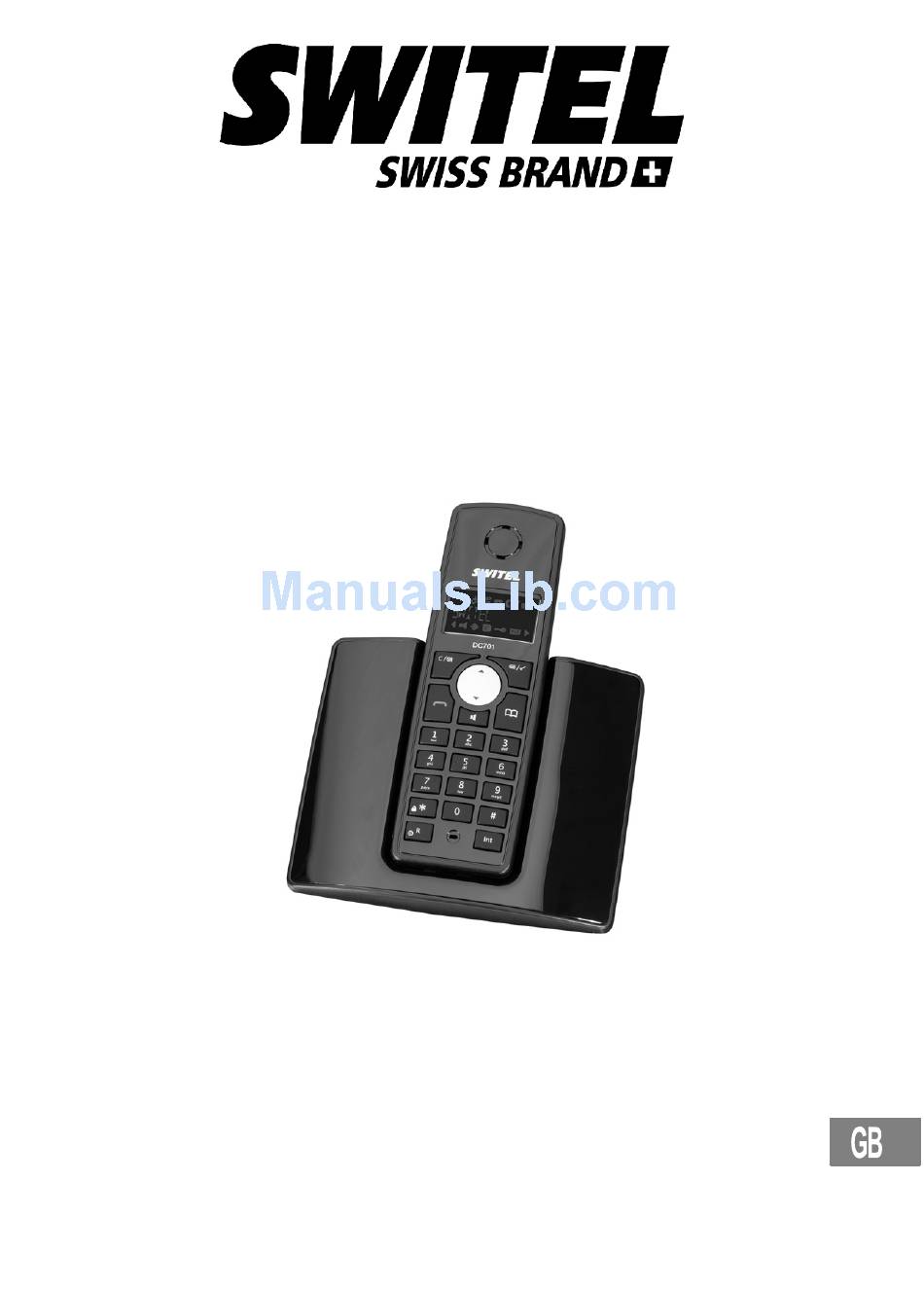

Page 1: Operating Instructions
Low−radiation cordless DECT/GAP telephone DC 70x Operating Instructions... - Page 2 DC 70x Operating Instructions ....Declaration of Conformity ....
-
Page 3: Table Of Contents
Safety Information ....Putting the Telephone into Operation Operating Elements ... . . Operating the Telephone ..Menu Structure . -
Page 4: Safety Information
1 Safety Information Please read this operating instruction manual thoroughly. Intended use The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself. -
Page 5: Putting The Telephone Into Operation
The package contains: DC 70X Contents Base station with power adapter plug Charging station with power − adapter plug Handset Telephone connection cable Batteries Operating instructions Refer to the www.switel.com web site to see if this telephone set is already available. -
Page 6: Connecting The Base Station
Connecting the base station Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance. Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connec- tion line supplied. -
Page 7: Operating Elements
Charging the batteries Before the handset is used for the first time, insert it in the base/charging station for at least 24 hours. When the handset is inserted in the base/charging station properly, you will hear an acoustic confirmation signal. The handset warms up during the charging process. -
Page 8: Base Station
Handset Display Redialling / Scroll upwards Menu / OK button Open calls log / Scroll downwards Phonebook / Cancel process Conference call Internal call R button / Handset on/off Key lock 10 Handsfree 11 Take call / End call 12 Delete / Muting Base station Paging button Charge contacts... - Page 9 Charging station Charge contacts Low radiation operation (ECO mode) Default settings = ECO-MODE → The telephone can be set up so that the radiation power is re- duced; . Page 12. = ECO MODE → ON. Reductions, with ECO mode activated, in comparison to a stan- dard DECT cordless telephone: Both in Call mode as well as in Standby mode, the radiation is re- duced considerably when ECO mode is activated as compared to...
-
Page 10: Operating The Telephone
4 Operating the Telephone Display and notation of operating sequences ë Enter the number ƒ Press the button depicted briefly 3 sec ƒ Press the button depicted for 3 seconds 5678 or Digits or icon in the display Icons in the display Icon Description Internally assigned call number of the handset... - Page 11 Programming the handset ® HANDSET Ringing volume for external calls ® EXT RING VOL ® VOLUME 5 VOLUME OFF Ringing volume for internal calls ® INT RING VOL ® VOLUME OFF VOLUME 5 Ringing melody for external calls ® EXT MELODY ®...
-
Page 12: Menu Structure
Ringing melody of base ® BASE MELODY ® MELODY 1 MELODY 5 Restoring the default settings , ë, ® ® PIN ? DEFAULT ® CONFIRM ? 5 Menu Structure Open the main menu by pressing the button. Use the y/z buttons to move to and select an option then confirm it by pressing the ®... -
Page 13: Telephoning
DATE − TIME DATE SET CLOCK SET ALARM SET REGISTER SELECT BASE REG BASE 6 Telephoning All descriptions in this operating manual assume that the handset is in Standby mode. ƒ Take a call (off−hook) ƒ End a call (on−hook) ƒ, ë... -
Page 14: Other Functions
Other functions Function Button sequence 5 sec ³ Switch the handset on /off 3 sec Key lock on , Key lock off ƒ, y/z Receiver volume Ringing melody volume while phone is ringing — Muting/Activating micro- phone in handset during the call ‘... -
Page 15: Phonebook
7 Phonebook Up to 50 phone numbers can be stored in the phonebook. Each entry can be customised with its own individual ringtone (10 melodies). When the memory capacity is completely full, an existing entry must be overwritten. Creating phone book entries , y/z, PHONEBOOK , ®, y/z, ADD ENTRY , ®, NAME ? , ë, ®, NUMBER ? ,... -
Page 16: Troubleshooting
9 Troubleshooting Should problems arise with the telephone, please refer to the fol- lowing information first. In the case of technical problems, you can contact our hotline service, Tel. 0900 00 1675 within Switzerland (Swisscom fees, via landline, at time of going to print: CHF 2.60/min). -
Page 17: Technical Properties
10 Technical Properties Technical data Feature Value 1− Standard DECT Power supply, base station: Input: 100−240 VAC, 50/60 Hz, 0,2 A max. Output: 7.5 V DC / 300 mA Power supply, charging station: Input: 100−240 VAC, 50/60 Hz, 0,2 A max. Output: 7.5 V DC / 200 mA Range Outdoors: Approx. -
Page 18: Maintenance / Guarantee
Clean the housing surfaces with a soft, fluff−free cloth. Never use cleaning agents or solvents. Guarantee SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen ma- terials and highly developed technologies ensure trouble−free functioning and a long service life. - Page 19 Important note Your phone’s base station is supplied with an energy−efficient switching power supply GTSA−075030WVY3 (Input 230 V Output 7.5 V , 300 mA). The adaptor input power without load is approx. 0.1 W. The average efficiency is approx. 67 %. The electrical consumption of the base is: −...
-
Page 20: Declaration Of Conformity
Quest’apparecchiatura è conforme alla direttiva europea R&TTE. Per la dichiarazione di conformità completa si prega di voler usufruire del servizio gratuito di download dal nostro sito Internet www.switel.com. This equipment complies with the European R&TTE directive. To view the complete Declaration of Conformity, please refer to the free download available at our web site: www.switel.com.
