www.insigniarange.com
Last Modified: 13/02/2017
www.insigniarange.co.uk

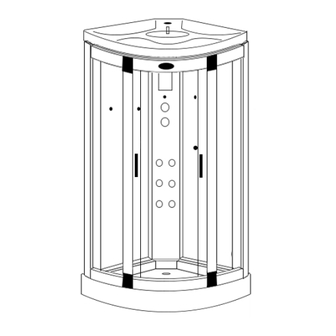

INSTALLATION MANUAL
30 Day Technical Support:
01908 226545
ES004
(NOTE: This service is only available to customers from the day of delivery,
please have your supplier's details and your postcode to hand before calling)
Replacements Parts:
inside of your warranty contact:
www.insigniarange.co.uk/customerService.aspx
Spares/Replacements Parts:
outside of your warranty
contact 0844 800 3069
ATTENTION INSTALLERS:
CHECK ALL CONTENTS BEFORE BUILD COMMENCES. NO RETURNS CAN BE MADE
ONCE THE BUILD HAS STARTED AS IT IS DEEMED ACCEPTANCE OF PRODUCT!
These instructions must be
WARRANTY REG NO: __________________________
left with the customer
To claim your full 5 year warranty, register your shower within 90 days of delivery at: www.insigniarange.co.uk/
warrantyreg.aspx. Standard 12 month warranty applies if outside this time period.
Advertisement
Related Manuals for Insignia ES004
Summary of Contents for Insignia ES004
- Page 1 INSTALLATION MANUAL 30 Day Technical Support: 01908 226545 ES004 (NOTE: This service is only available to customers from the day of delivery, please have your supplier’s details and your postcode to hand before calling) Replacements Parts: inside of your warranty contact: www.insigniarange.co.uk/customerService.aspx...
- Page 2 www.insigniarange.com Last Modified: 13/02/2017 Contents Introduction Electrical Requirements What’s In The Boxes? Screw Pack Contents Plumbing Requirements Schematics Starting The Installation Electric Box Connections Sealing and Water Testing Control Panel Instructions Help Book Information Parts List...
- Page 3 Last Modified: 13/02/2017 Thank you for your recent purchase of an Insignia shower. Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many years to come! Like everything, in order to obtain a first class product that will serve you well for many years, the effort and correctness put into the assembly will reflect in the quality of your finish.
- Page 4 DURING BUILD, LIKE ALL SHOWERS CORRECT SEALING IS IMPERATIVE. If you are using Insignia’s RubberGum, please ensure the product does not come in contact with your silicone as this will cause the RubberGum to fail and will not adhere as intended.
- Page 5 www.insigniarange.com Last Modified: 13/02/2017 TOTAL ELECTRICAL REQUIREMENTS Voltage Rating 220 -240AC Frequency Rating 50HZ Power Rating Your electrical contractor should understand ALL legal requirements of connection before undertaking any work or installation. UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! Note for electrician. This product comes with 3 amp plug. We leave it this way for you to connect this your own way due to continued additions to current regulations.
- Page 6 www.insigniarange.com Last Modified: 13/02/2017 Tool Requirements None Supplied Scissors Stanley Blade Silicone Gun Spirit Level Tape Measure Philips Screwdriver Electric Drill Adhesive Requirements Bacteria Resistant Sanitary Silicone - (for vertical joints) RubberGum Plumbers Mait (for waste joints) Not Supplied Not Supplied Not Supplied Hardware Requirements A Steam Shower requires 2 x 1 Metre Braided Hose...
- Page 7 www.insigniarange.com Last Modified: 13/02/2017 Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. Therefore our advice is to follow the instructions and perform a dry run to ensure you are confident with the build and you understand fully how the unit is assembled. When we use the word “DRY RUN”...
- Page 8 Note: In some cases you may have more screws than needed, this is done so you have spares! VERY IMPORTANT Have you got everything? If not please contact the Insignia Support Line on 01908 226545. Remember NEVER book your tradesman until everything has arrived, been checked and is present.
- Page 9 www.insigniarange.com Last Modified: 13/02/2017 Pressure Requirements from your house supply We recommend a bar pressure between 2.5 and 3.4 BAR. If you have a combi boiler system no problem should be experienced. If you have a gravity feed older type installation (hot water tank type usually less than 1 bar) you will almost certainly need a pump.
- Page 10 Please note the ‘U’ shaped channel is meant to face inwards to allow the glass to fit correctly. (Thinner rail without Insignia logo on) PLEASE NOTE The screw head needs to bypass the OUTER hole. If this does not occur...
- Page 11 www.insigniarange.com Last Modified: 13/02/2017 Step 2 Push the “U Shape” glass seal onto the glass panel prior to insertion into the frames. Please ensure the thin seal is on the entrance side of the panels with the thicker to the rear side. The next step is to attach both front fixed glass panels.
- Page 12 www.insigniarange.com Last Modified: 13/02/2017 Step 4 Apply RubberGum to the bottom of the remaining back panel and position the panel to the completed front frame in the position shown in the image marked “1” Once you have met the back panel inside the front upright as per the close up image walk the panel around to the position shown in the image marked “2”...
- Page 13 www.insigniarange.com Last Modified: 13/02/2017 Step 6 Align the roof with your shower walls and using the ST25 screws fix the back walls to the roof by screwing upwards from the rear of the shower. NOTE: If a small gap exists silicone seal later Step 7 Fit the adjustable wheels to the top and bottom of the glass doors and ensure the wheels are at their lowest position and hang on the inner curved rails with the wheels facing the...
- Page 14 www.insigniarange.com Last Modified: 13/02/2017 Accessory Installation Please Note Ensure all grey backing film on the rear of the glass panels are pierced through the existing glass holes with a knife to provide an efficient smooth fitting and location of the accessories. We recommend using a screwdriver on the smaller holes.
- Page 15 www.insigniarange.com Last Modified: 13/02/2017 Hand Shower Attach the chrome riser bar to the glass wall ensuring the water inlet is inserted through the lower large hole and hand tightened from the rear side. Now tighten the chrome shower holder ensuring that this will take the hand shower itself without falling (please note over tightening will prevent the holder from sliding up and down) Thermostatic Probe...
- Page 16 Connect the corresponding hoses to the rear of the valve as shown. Device output may differ from the image. Please refer to your outer chrome faceplate inside your Insignia shower as a reference point. IF YOUR DIAL DOES NOT CORROSPOND TO THE APPROPRIATE DEVICE: Turn on your water to the shower and note which output the water exits from then turn off the wa- ter and swap over the relevant hose.
- Page 17 www.insigniarange.com Last Modified: 13/02/2017 Electric Box Connections Connect the cables below to the corresponding devices on the shower Roof Light Speaker Antenna Speaker...
- Page 18 www.insigniarange.com Last Modified: 13/02/2017 Silicone Seal (vertical joints) RubberGum (horizontal joints) TESTING FOR WATER LEAKS LEAVE THE SHOWER 24 HOURS AFTER BUILD TO ALLOW SEALANT TO CURE AND ENSURE THE SHOWER IS AWAY FROM ITS FINAL POSITION TO ALLOW REAR VIEWING Ensure all connections are tight and sealed including the waste, body jets and steam outlet (model dependent) on your shower.
- Page 19 www.insigniarange.com Last Modified: 13/02/2017 TL-2070GS Control Panel Instructions Button 1 (+ VOL) Button 7 (FM) Volume Up Radio On/Off Button 2 (Down Arrow) Button 8 (LIGHT) Radio Search Down On/Off Button 3 (Up Arrow) Button 9 (FAN) On/Off Radio Search Up Button 4 (- VOL) Volume Down Button 5 (Power)
- Page 20 Last Modified: 13/02/2017 Need Help? If so then simply download Insignia’s free comprehensive help and troubleshooting brochure now! Simply visit: www.insigniarange.co.uk/help.aspx...
- Page 21 www.insigniarange.com Last Modified: 13/02/2017 Parts List Internal Items External Items Framework Part Code Part Description Part Code Part Description Part Code Part Description Bottom Rail SP063 Monsoon Shower head SP300 Waste hose Top rail SP048 Massage jet—2 open ends SP251 Transformer Left upright SP048A...
- Page 22 All images are registered with ImageTraker Insignia™ is a registered trademark of Maclean International Ltd All images are subject to copyright. Images may not be used in any way shape or form with out written permission from Maclean International Ltd. Images are NOT permitted...
