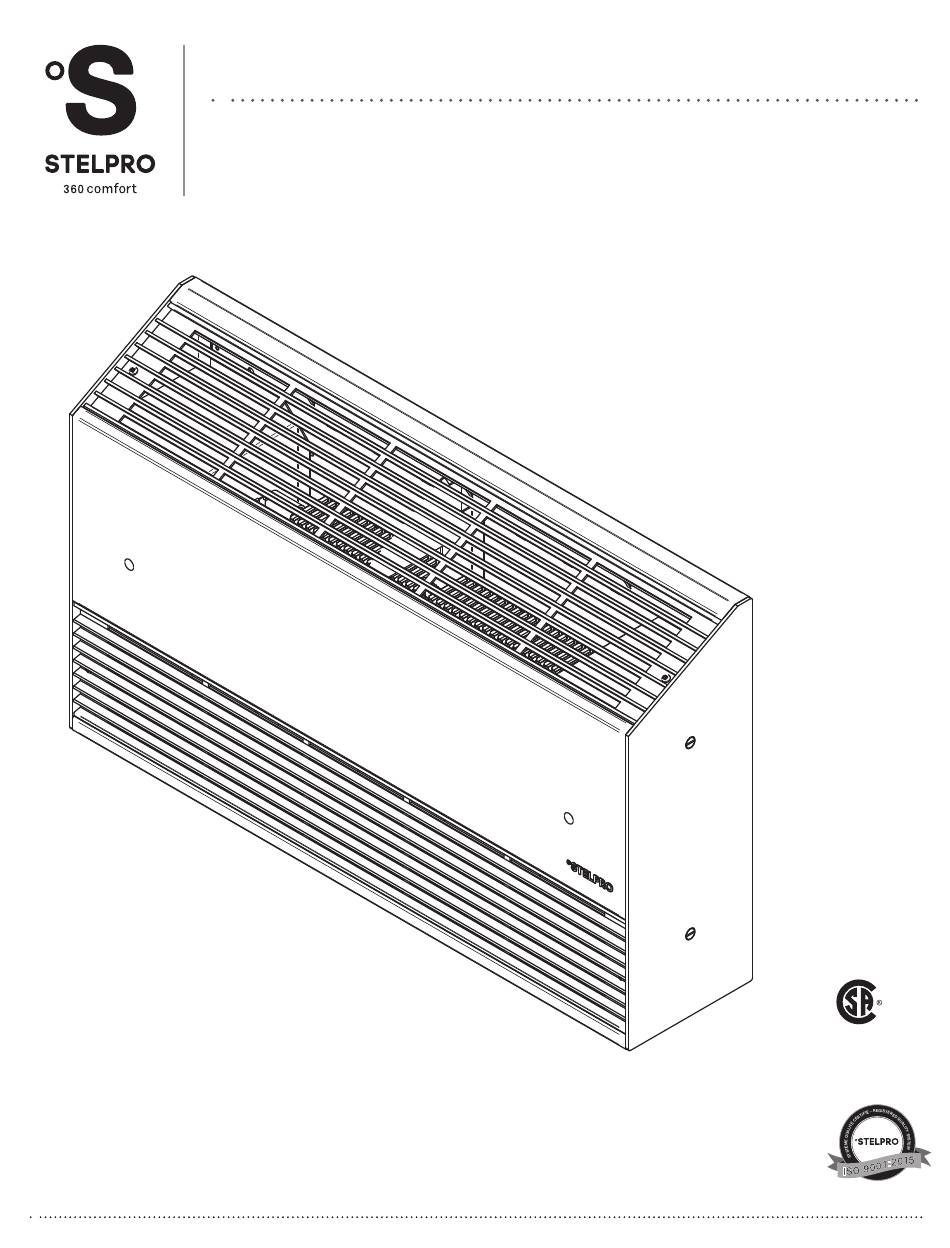

  • Page 1 USER’S GUIDE CWS750 SERIES ARCHITECTURAL CABINET REPLACEMENT COMPONENT LIST INCLUDED This unit complies with the CSA standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSCWS7500917...

  • Page 2: Important Instructions

    If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one.
  • Page 3 SPECIFICATIONS, TECHNICAL DRAWINGS & INSTALLATION SPECIFICATIONS 750 W DENSITY 600 W DENSITY 450 W DENSITY PER LINEAR FOOT PER LINEAR FOOT PER LINEAR FOOT VOLTS 1500 W CWS750612x 1200 W CWS750609x 900 W 23 5/8 12.7 2250 W CWS750918x 1800 W CWS750913x 1350 W 35 7/16...

  • Page 4: Operation & Troubleshooting

    OPERATION & TROUBLESHOOTING ELECTRICAL DIAGRAM Thermal Element protection Disconnect Thermostat switch double pole (optional) (optional) Thermal Element protection Disconnect Thermostat switch single pole (optional) (optional) L2/N Thermal Element Relay protection (optional) L2/N OPERATION Warning: the heater must be properly installed before it is used. TROUBLESHOOTING PROBLEM DEFECTIVE PART OR PART TO CHECK...
  • Page 5 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION REF. # PART # DESCRIPTION EA0300-06- ELEMENT 300W (600mm) M-GRI42512Z1 ALUMINUM GRILLE (1200mm) EA0400-06- ELEMENT 400W (600mm) M-GRI42515Z1 ALUMINUM GRILLE (1500mm) EA0450-09- ELEMENT 450W (900mm) M-GRI42518Z1 ALUMINUM GRILLE (1800mm) EA0600-09- ELEMENT 600W (900mm) M-GRI42521Z1...

  • Page 6: Maintenance

    Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
