Page 1: Table Of Contents

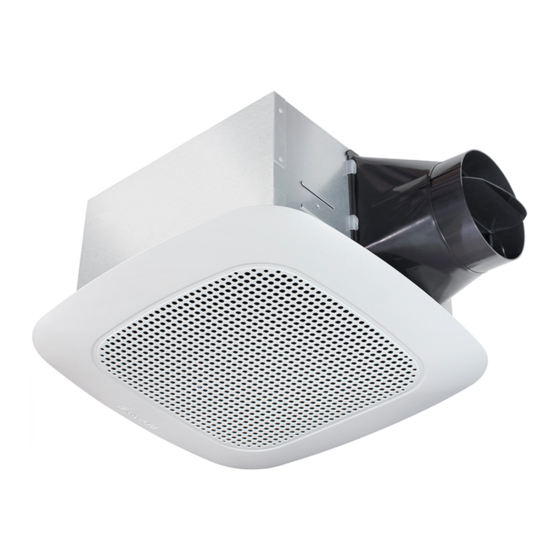

VENTILATION FAN WITH BLUETOOTH SPEAKER MODEL VFB25ADBT TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille & Speaker Installation Operation Care and Maintenance Troubleshooting Dimensions Warranty... -
Page 2: Package Contents
❸ Suspension Bracket I ❹ Suspension Bracket II ❺ Suspension Bracket III ❻ Duct Connector ❼ Bluetooth Speaker HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅ 4 x 25mm) Short Machine Screw (M4 x 12mm) Model: VFB25ADBT... -
Page 3: General Safety Information
Protection Association (NFPA), and the American Society floor Equipment for Heating Refrigeration and Air Conditioning Engineers (ASHRAE), and local code authorities. Fig. B 5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. Model: VFB25ADBT... - Page 4 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Delta Electronics, Inc. is under license. Other trademarks and trade names are those of their respective owners. ®...
-
Page 5: Preparation And Wiring Diagrams
Use a roof cap or wall cap that has a built-in damper However, most are available at your local home to reduce backdrafts. improvement or hardware store. External timer can be used please contact Delta DIMENSION REQUIREMENTS Breez customer service and consult with a licensed Ceiling... -
Page 6: Assembly Instructions - New Construction
❸ , ❹ , ❺ using long wood screws. Hardware Long wood screw 4. Secure the suspension brackets ❹ , ❺ to the fan body ❶ using a short machine screw. Hardware Short machine screw Short machine screw Short machine screw Model: VFB25ADBT... -
Page 7: Assembly Instructions - Existing Construction
(10 1/4 in. x 10 1/4 in.). 3. If this fan is not replacing an old fan, be sure to cut a 10 1/4 in. x 10 1/4 in. opening for the fan body ❶ . Model: VFB25ADBT... - Page 8 Long wood screw 8. Insert fan body ❶ into the ceiling cut out making sure to align the duct connector with the fan body ❶ . 9. Turn on the power source. Check fan for any abnormal sound or vibration. Model: VFB25ADBT...
- Page 9 (not supplied) and vent to the outside. Secure it with duct tape (not supplied) or clamp (not supplied) to make the connection secure and air tight. 6. Turn on power source. Check fan for any abnormal sound or vibration. Model: VFB25ADBT...
-
Page 10: Grille & Speaker Installation
"DeltaBreez SIG", and enter a passkey or PIN (0000) if prompted. 7. When pairing is completed, the blue LED indicator will solid on, you can use the Bluetooth speaker to play music or audio files with your device. Model: VFB25ADBT... -
Page 11: Care And Maintenance
4. Dampen cloth with dust detergent and wipe the fan body ❶ . Then wipe dry with a clean cloth. 5. Replace grille ❷ back onto fan body ❶ . 6. Turn on power source to operate fan again. Model: VFB25ADBT... -
Page 12: Troubleshooting
The fan is not clearing 1. Be sure a door or window is slightly ajar or opened the room airfow within room 2. Be sure the CFM rating on the fan matches the requirements for your room size. Model: VFB25ADBT... -
Page 13: Dimensions
DIMENSIONS UNIT:INCH PRODUCT SPECIFICATIONS SPECIFICATIONS Air Flow Noise Power Duct Model No. Voltage Frequency Weight Max Current @0.1” SP @0.1” SP Consumption Diameter VFB25ADBT 110-220V 50-60Hz 110 CFM 1.0 Sone 21.4W 4 in. 7.52 lbs. 0.3 AMPS Model: VFB25ADBT... -
Page 14: Warranty
6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
