SMART-AVI DV-SW2 Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
DV-SW2S 1 DVI-D 2x1 Switch
Power Supply 1 PS5VDC2A
User Manual 1
Technical Specifications
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (2) DVI-D 29-pin female
Output Interface (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
OTHER
Control RS-232, IR, and Front Panel
Power External 5VDC2A
Dimensions 10.5"W x 1.875"H x 6"D
Weight 5 lbs.
Approvals UL, CE, ROHS Compliant

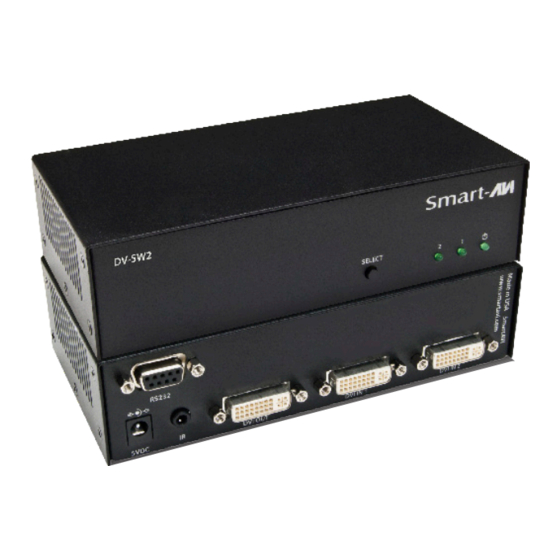

DV-SW2 Front
DV-SW2 Rear
