Owner's Manual and Assembly Instructions
Model #: W348
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary. Call 1-800-224-094 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

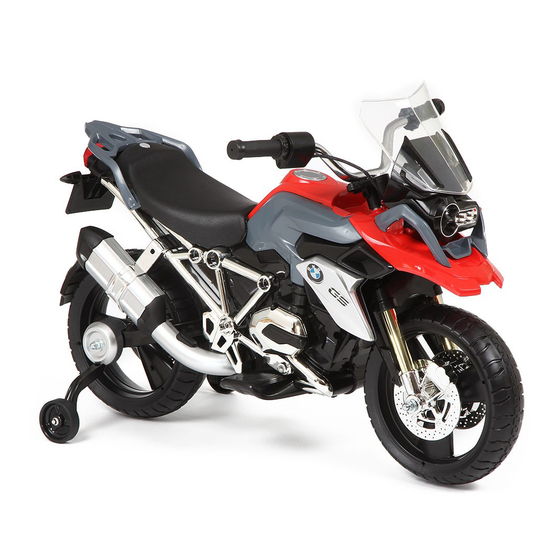

6V BMW Motorcycle
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rollplay W348
Summary of Contents for Rollplay W348
- Page 1 6V BMW Motorcycle Owner’s Manual and Assembly Instructions Model #: W348 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colours may vary. Call 1-800-224-094 for assistance and replacement parts.
- Page 2 Introduction Thank you for purchasing this RollPlay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Hunter Products Pty Ltd at www.electricrideon.com.au or Call at 1800 224 094 with any enquiries or questions.
-
Page 3: Table Of Contents
Table of Contents Safety ............4 Parts ............6 Charging Instructions .......7 Assemble the Front Wheel ...... 8 Assemble the Rear Fork ......9 Assemble the Rear Wheel.......10 Assemble the Support Wheels ....11 Attach the Mud Guard ......12 Attach the License Plate ......13 Assemble the Handle Bars .....14 Assemble the Windshield .......15 Assemble the Baggage Rack ....16... -
Page 4: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35kg (77 lbs). •... -
Page 6: Parts
Parts 1. Manual 14. Front Wheel 27. Right Support Wheel 2. License Plate 15. Right Brake 28. Inner Wheel Spacer 3. Baggage Rack 16. Front Axle 29. Rear Axle Cover 4. Rear Mud Guard 17. Washers (5) 30. Rear Axle 5. -
Page 7: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3. -
Page 8: Assemble The Front Wheel
Assemble the Front Wheel 1. Place the left (13) and right brake (15) onto either sides of the front wheel (14). 2. Slide the front wheel assembly into the front fork. 3. Align the holes on the brakes with the holes on the front fork. Insert a self tapping screw (22) into both holes on the fork to secure the wheel. -
Page 9: Assemble The Rear Fork
Assemble the Rear Fork 1. Align the slot on the rear wing bracket (5) with the inner side of the rear fork 2. Insert a self tapping screw (22) through the wing bracket and rear fork to secure... -
Page 10: Assemble The Rear Wheel
Assemble the Rear Wheel 1. Insert the rear axle (30) into the left hole of the rear fork. Do not slide all the way through. 2. Slide the gear box (31) onto the rear axle. Connect the white connector on the gear box with the white engine connector. -
Page 11: Assemble The Support Wheels
Assemble the Support Wheels 1. Slide the left support wheel (7) onto the left side of the rear axle. 2. Slide the right support wheel (27) onto the right side of the rear axle. 3. Slide the rear shield (8) onto the left side of the rear axle. Align the slots on the rear shield with the protrusions on the left fork and snap into place. -
Page 12: Attach The Mud Guard
Attach the Mud Guard 1. Align the slot on the back of the mud guard (4) with the back of the rear wing bracket (5). 2. Snap the mud guard onto the rear wing bracket. -
Page 13: Attach The License Plate
Attach the License Plate 1. Align the top of the license plate (2) with the slot on the bottom of the back of the motorcycle body. 2. Slide the license plate onto the slot until it snaps into place. -
Page 14: Assemble The Handle Bars
Assemble the Handle Bars 1. Remove the screw (26) and nut (24) from the steering axle. 2. Slide the handle bars (9) onto the steering axle. Ensure the holes on the handle bars align with the holes on the steering axle. 3. -
Page 15: Assemble The Windshield
Assemble the Windshield 1. Connect the handle bar wire connector to the motorcycle body wire connector. 2. Align the windshield assembly (10) with the slots on the wire compartment and snap into place taking care not to damage the wires in the process. -
Page 16: Assemble The Baggage Rack
Assemble the Baggage Rack 2. Remove the seat (6) by lifting on the back of the seat. 1. Align the front bar of the baggage rack (3) with the gap on the rear of the battery compartment and snap into place. 2. -
Page 17: Attach The Exhaust Pipe
Attach the Exhaust Pipe 1. Align the top and front of the exhaust pipe (21) with the slots on the right side of the motorcycle body and snap into place. 2. Use a self-tapping screw (22) to secure. -
Page 18: User Information
User Information Sound Button ON/OFF Button Turn Accelerator to Move Forward battery for 8-12 hours each additional recharge. 2. ON: Press the power button on the front of the motorcycle dashboard to turn ON the motorcycle. The motorcycle will make a revving noise when it is turned ON 3. -
Page 19: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours. -
Page 20: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 21 for more information. -
Page 21: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors are securely attached. - Page 22 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
- Page 23 Intentionally blank...
-
Page 24: Service And Repairs
Service and Repairs If your product requires service, repairs or replacement parts, please contact Customer Service. Business name: Hunter Products Pty Ltd Business address: Level 2, 424 Warrigal Road, Moorabbin VIC 3189,Australia Telephone number: Australia wide (local call cost) 1800224094 (Monday to Friday 9.00 to 5.00pm AEST) Web: www.electricrideon.com.au... -
Page 25: Warranty
Warranty One-Year Limited Warranty Hunter Products warrants that your 6v BMW Motorcycle will be free from defects in materials and workmanship for the vehicle (except for the 6-volt battery) for a period of 12 months, from the date of purchase. This warranty only applies where the product is completely and correctly assembled and used in accordance with all accompanying recommendations and users instructions.
