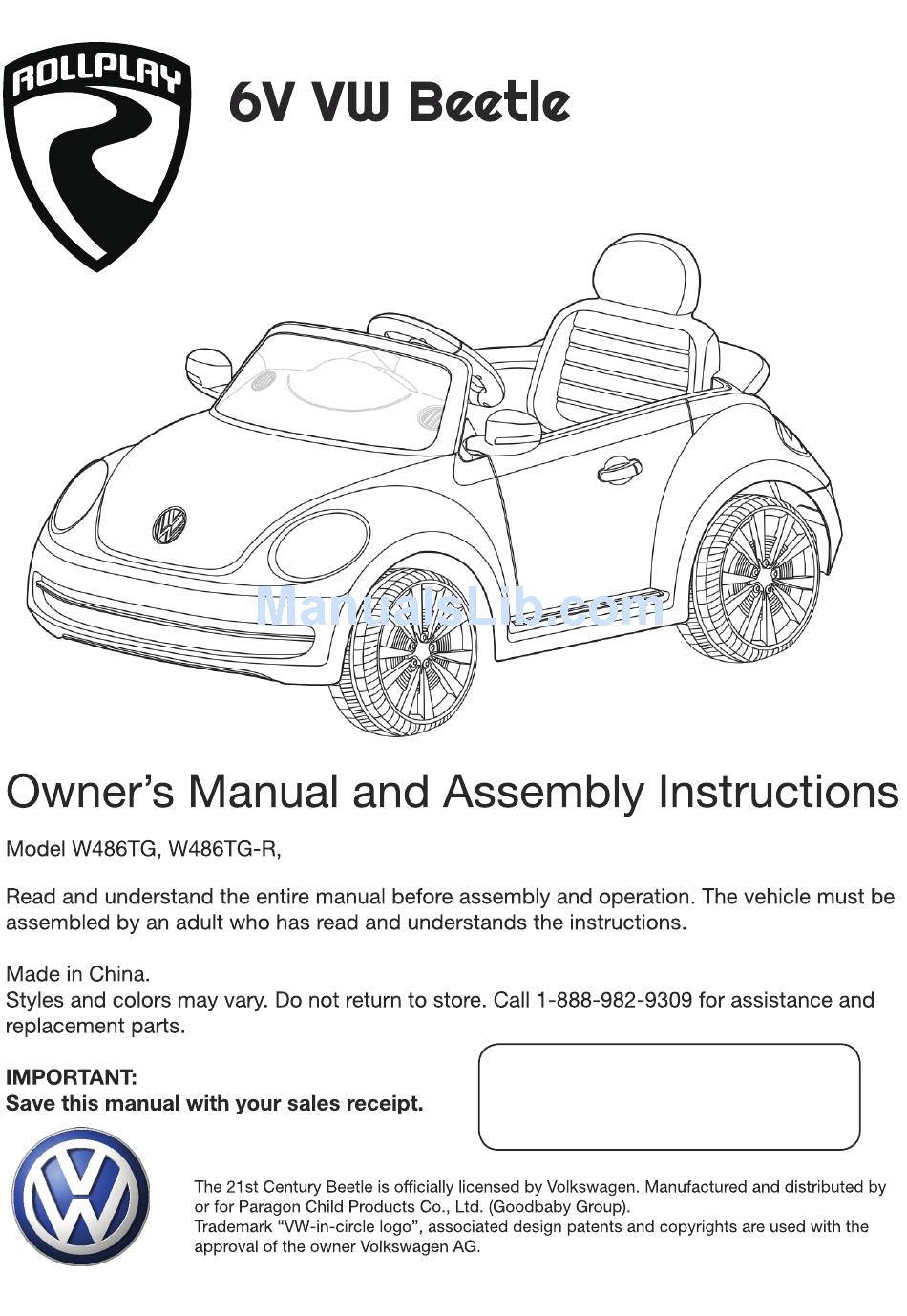

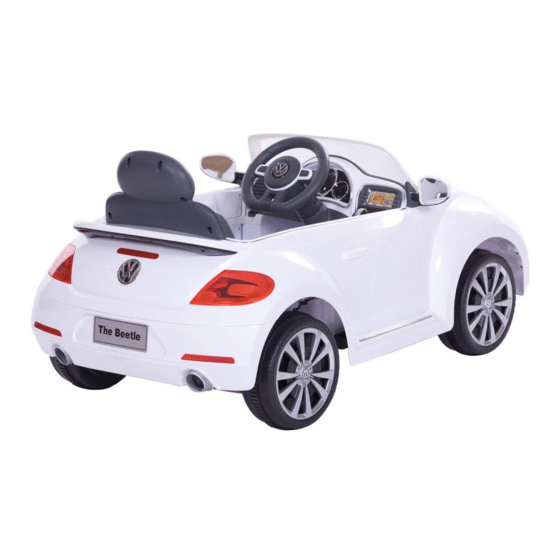

- Page 1 ® W486TG-OB...
-
Page 2: Specifications
Introduction Thank you for purchasing this vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase. - Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.RollPlay as we may require proof of purchase. 1-888-982-9309 Read this entire manual to ensure proper assembly and safe operation of the vehicle.
- Page 4 This page is intentionally left blank.
-
Page 5: Table Of Contents
Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Windshield and Spoiler..13 Attach the Steering Wheel ......14 Attach the Mirrors ........15 Attach the Seat ........16 Battery Removal ........17 Operating Instructions ......18... -
Page 6: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs). •... - Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...
-
Page 8: Parts
Parts 13.3 13.6 13.1 13.8 13.4 13.2 13.5 13.7 13.9 Not Included: 13.1. Steering Wheel Screw (1) 1. Manual 13.2. Steering Wheel Nut (1) 2. Steering wheel assembly 3. Battery charger 13.3. Snap pin (4) 4. Mirrors (2) 13.4. Φ10 Washer (4) •... -
Page 9: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. 2. Unlock and remove the seat. 3. -
Page 10: Assemble The Front Wheels
Assemble the Front Wheels 13.3 13.4 13.4 1. Locate the two Φ10 washers (13.4) and a snap pin (13.3) from blister pack. 2. Slide a (13.4) onto the front axle. Φ10 washer 3. Slide the front wheel (7) onto the front axle. 4. -
Page 11: Assemble The Left Rear Wheel
Assemble the Left Rear Wheel 13.3 13.5 13.5 13.6 Left Rear Wheel: Locate the two Φ 12 washers (13.5), an inner wheel spacer (13.6) and a snap pin (13.3) from blister pack. 2. Slide a Φ 12 washer (13.5) onto the left rear axle. 3. -
Page 12: Assemble The Right Rear Wheel
Assemble the Right Rear Wheel 13.3 13.5 Right Rear Wheel: Locate a Φ12 washer (13.5) and a snap pin (13.3) from blister pack. Slide the right rear wheel (8) onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 3. -
Page 13: Attach The Windshield And Spoiler
Attach the Windshield 1. Align the windshield (5) with the two side slots between the dashboard and the body. 2. When evenly aligned, push lightly on the windshield while holding at each end until it clicks. (Note: the two sides of the windshield must be pushed in evenly.) 3. -
Page 14: Attach The Steering Wheel
Attach the Steering Wheel Locate steering wheel screw (13.1) and steering wheel nut (13.2) from blister pack. 2. Plug the black steering wheel connector (A) into the black dashboard connector (B). 3. Insert the steering wheel (2) into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod. -
Page 15: Attach The Mirrors
Attach the Mirrors Locate a mirrors screw (13.8) and a mirrors nut (13.9) from blister pack. 2. Insert the left side mirror into the slot on the side of the body. Push it into the slot. 3. Insert the screw and fasten the nut to secure the mirror. 4. -
Page 16: Attach The Seat
Attach the Seat 1. Position the seat (6) over the battery compartment. 2. Slide the seat onto the guides located in front of the rear spoiler. 3. Turn the thumb screw clockwise on the seat to lock it properly in position. -
Page 17: Battery Removal
Battery Removal Battery strap Screw Battery 1. Disconnect the red battery connector (A) from the red engine connector (B) . 2. Loosen and remove the screw. 3. Unfasten the battery from the strap. 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. -
Page 18: Operating Instructions
Operating Instructions • To turn on the vehicle, turn the power switch to “I.” To turn off the vehicle, turn the power switch to “O.” • Push the shifter forward to move forward. Pull the shifter backward to go in reverse. •... -
Page 19: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time. -
Page 20: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information. -
Page 21: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 22 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 23: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 24: Service And Repairs
Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com. -
Page 25: Warranty
This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you. - Page 26 This page is intentionally left blank.
-
Page 27: Product Registration
City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchased: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
