Owner's Manual and Assembly Instructions
Model #: W416AC
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

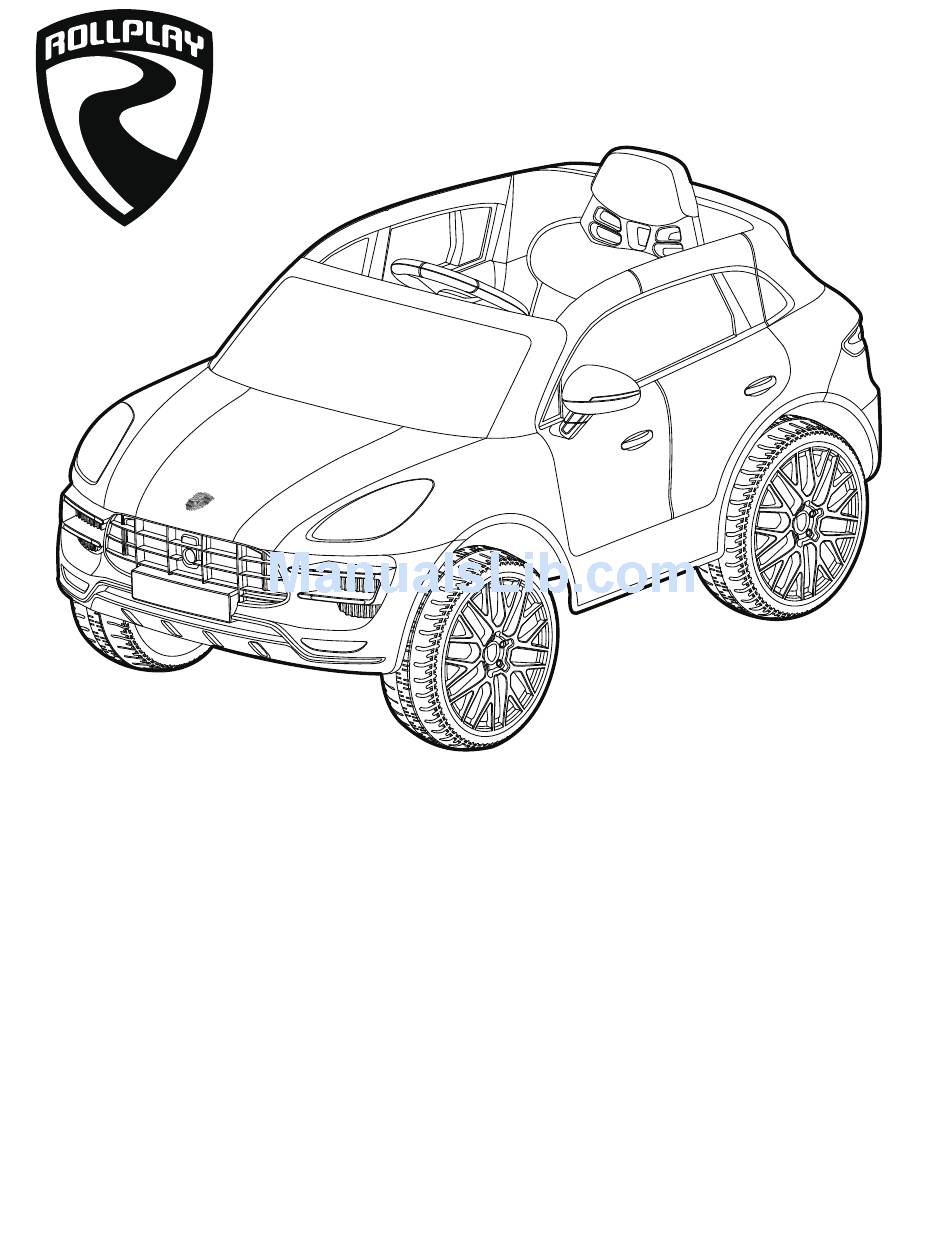

PORSCHE MACAN TURBO
Advertisement
Table of Contents
Related Manuals for Rollplay PORSCHE MACAN TURBO W416AC
Summary of Contents for Rollplay PORSCHE MACAN TURBO W416AC
- Page 1 PORSCHE MACAN TURBO ® Owner’s Manual and Assembly Instructions Model #: W416AC Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary.
- Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
- Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. 1-888-982-9309 Read this entire manual to ensure proper assembly and safe operation of the vehicle.
-
Page 4: Table Of Contents
Table of Contents Safety ............5 Parts ............7 Charging Instructions ......8 Assemble the Front Wheels ....9 Assemble the Left Rear Wheel ....10 Assemble the Right Rear Wheel ..... 11 Attach the Seat ........12 Attach the Steering Wheel ...... 13 Attach the Mirrors ........ -
Page 5: Safety
Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 year old and weigh no more than 35 kg (77 lbs). •... - Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...
-
Page 7: Parts
Parts 1. Steering wheel 7. Large washers 13. Charger 2. Seat 8. Small washers 14. Manual 3. MP3 Jack 9. Snap pins 15. Steering wheel nut 4. Car body 10. Wheel covers (4) 16. Steering wheel screw 5. Rear wheels (2) 11. -
Page 8: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and the Seat power switch is turned off. 2. -
Page 9: Assemble The Front Wheels
Assemble the Front Wheels Correct Snap Pin Installation Small washer Small washer Front wheel Snap pin Wheel cover 1. Slide the small washer onto the front axle. 2. Slide the front wheel onto the front axle. 3. Slide the small washer onto the front axle. 4. -
Page 10: Assemble The Left Rear Wheel
Assemble the Left Rear Wheel Rear wheel Snap pin Large washer Inner wheel spacer Large washer Wheel cover Left Rear Wheel: 1. Slide the large washer onto the rear axle, then slide the inner wheel spacer onto the axle. 2. Slide the left rear wheel onto the left rear axle. The side with the gear teeth faces inward. -
Page 11: Assemble The Right Rear Wheel
Assemble the Right Rear Wheel Large washer Wheel cover Snap pin Rear wheel Right Rear Wheel: 1. Slide the right rear wheel onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.) 2. -
Page 12: Attach The Seat
Assemble the Seat Seat Seat release button 1. Insert the two hooks on the back of the seat into the slots on the car body. Push down on the seat until it clicks into place. 2. Press the seat release button to unlock the seat. -
Page 13: Attach The Steering Wheel
Attach the Steering Wheel 1. Locate the steering wheel screw and nut from blister box. 2. Plug the steering wheel connector (A) into the dashboard connector (B). 3. Insert the steering wheel onto the steering rod, and align the holes on the wheel with the holes on the rod. -
Page 14: Attach The Mirrors
Attach the Mirrors 1. Insert the left mirror into the slot on the left door near the windshield 2. Push down on the mirror until it clicks into place 3. Repeat steps 1-2 for the right mirror... -
Page 15: Operation Instructions
Operating Instructions Sound Buttons Shifter Battery Life MP3 Jack lndicator Tuning Reset Volume Dial Power lndicator Button Power Switch Pedal • Push the power switch to turn on the car. The power indicator light will turn on when the car is on. Press the power switch again to turn off the car. -
Page 16: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours. -
Page 17: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 21 for more information. -
Page 18: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 19 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 20: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 21: Service And Repairs
Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com. -
Page 22: Warranty
This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you. -
Page 23: Product Registration
Product Registration First Name: Last Name: Title: Address: City: State: Zip Code: Email: Phone: Date of Purchase: Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
