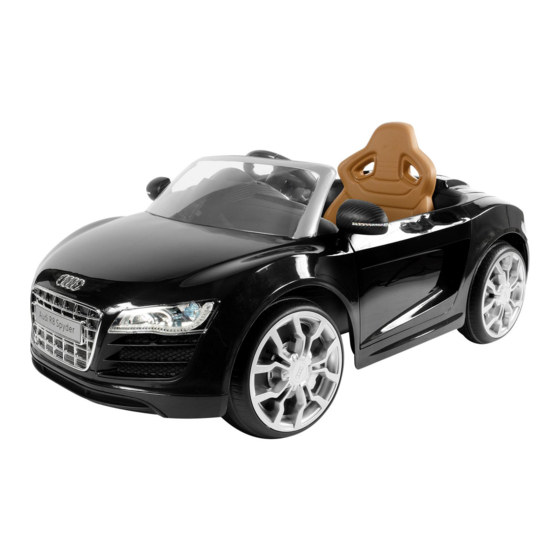

6V Audi R8 Spyder (W458AC)
MMXV © Copyright Aria Child Inc.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W458AC and is the answer not in the manual?

Questions and answers

Summary of Contents for Rollplay W458AC

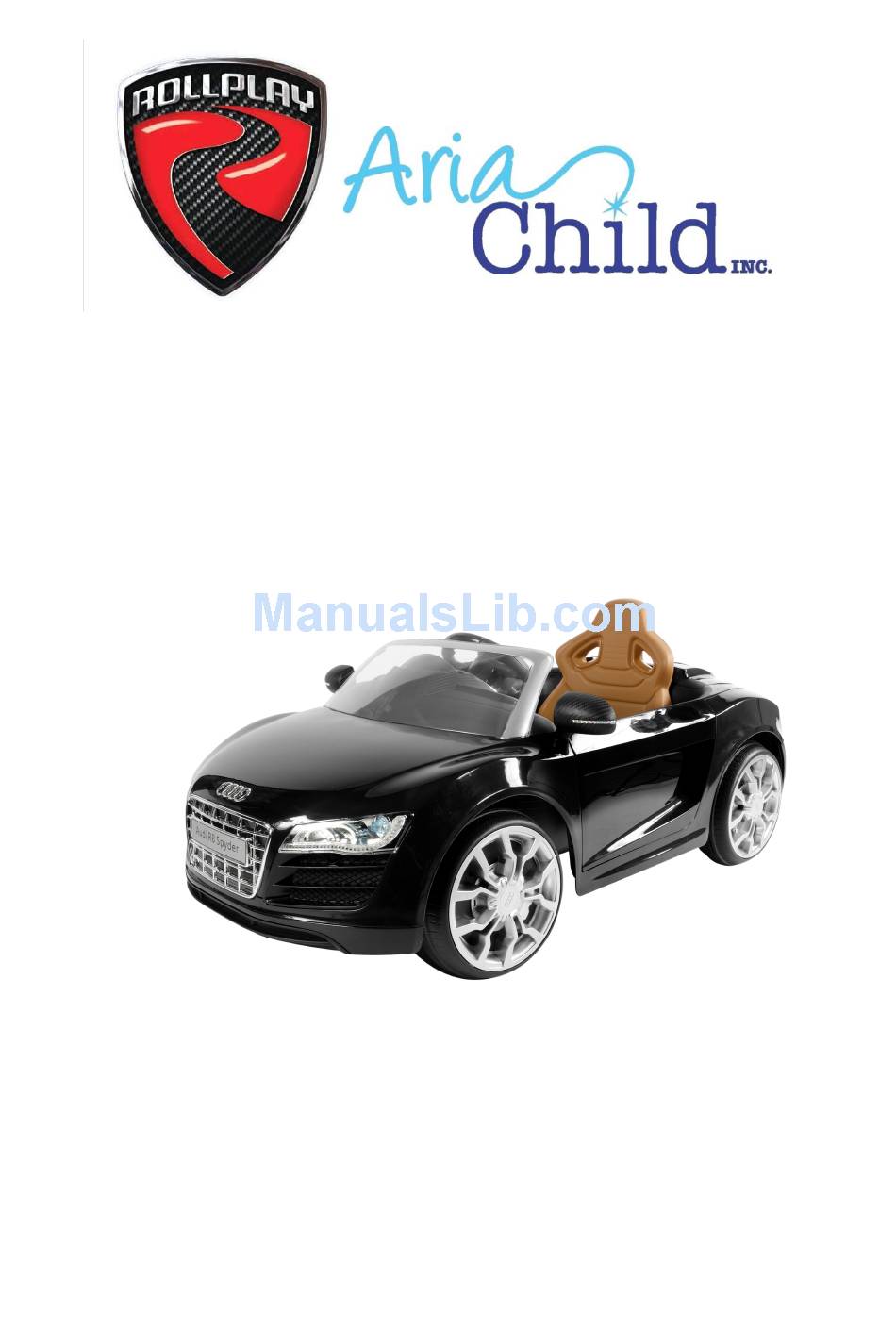

  • Page 1 6V Audi R8 Spyder (W458AC) Customer Service Guide MMXV © Copyright Aria Child Inc.
  • Page 2 Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 6 III) Check Foot Pedal ………………………………………………………..….….. 11 IV) Gearbox Replacement …………………………………………..…………… 13 V) Exploded View …………….…………..…..….……….……..…….…… 20 CAUTION : Disconnect the battery before proceeding with any of the following steps...
  • Page 3 Battery Troubleshooting: How to Access and Check the Battery 1. Use a flat head screwdriver to unlock the seat 2. Lift the seat from the bottom to remove 3. Locate the battery, and unplug the red connectors 4. Use a volt meter to check the battery. See page 5 for volt reading tips Step (1) Unlock position Turn and unlock this plastic knob...
  • Page 4 Battery Troubleshooting: How to Access and Check the Battery Step (3) Unplug the battery connector (RED) underneath seat...
  • Page 5 Battery Troubleshooting: How to Access and Check the Battery Step Volt Meter Results: 6.0 V ~ 6.5 V – Good condition 5.6 V ~ 5.9 V – Proceed to Recharge 5.5 V – Recharged battery for 8-10 hours. If after the charging time, voltage has not increased, the battery needs replacement Below 5.5 V –...
  • Page 6 Battery Troubleshooting: Check the Wiring Connections 1. Check the Gearbox Connection: Follow the above steps to remove the seat. Locate the white gearbox connectors in the battery compartment. 2. Disconnect and reconnect these connectors. Try reconnecting the battery, and pressing the gas pedal to check for power.
  • Page 7 Battery Troubleshooting: Check the Wiring Connections 1.Flip the car on its side. 2. Locate the black wiring harness. Use a screwdriver to remove the screws on either side of the cover. 3. Check the wiring connections to ensure they are pushed in completely and fully intact.
  • Page 8 Battery Troubleshooting: Check the Wiring Connections Rear side Shifter Front side Single Blue Double Black Single Red Black Black Step (3) Double Black Single Red Double White Power switch (leave the empty blade at the front side) Reverse above procedures to re-assemble the vehicle...
  • Page 9 Sound and Steering Troubleshooting 1. Unscrew the steering wheel screw, and remove the steering wheel from the steering column. 2. Unscrew the screws on either side of the dashboard. Lift up the dashboard and windshield assembly. 3. Check the wiring connection from the dashboard to the car body to ensure the connection is secure.
  • Page 10 Sound and Steering Troubleshooting Step (2) Unscrew these two screws to remove the dashboard Step (3) Check the 2-pin plug for any loose connections...
  • Page 11 Checking the Foot Pedal Connection 1. Turn the vehicle on its back and located the foot pedal harness underneath the car. 2. Use a flat head screwdriver to snap out the foot pedal. 3. Turn the car back over and check the wires on the foot pedal.
  • Page 12 Checking the Foot Pedal Connection Snap back in place Step Slide in the Foot Pedal into Chassis from right side...
  • Page 13 Replacing the Gearbox Follow the below steps to remove and replace the gearbox. Use a flat head screwdriver to remove the wheel cap from tabs (Rear right wheel only) Step (1)
  • Page 14 Replacing the Gearbox Step (2) Use the same screwdriver to remove the snap- pin from axle as show Step (3) Slide the rim and rear wheel out from axle...
  • Page 15 Replacing the Gearbox Step (4) Step (5)
  • Page 16 Replacing the Gearbox Flip the car over to access the wiring harness (Follow steps on page 7) Step (6) Unscrew the wiring cover Unplug the headlight connector plugs located near the front end Step (7)
  • Page 17 Replacing the Gearbox Step (8) Unscrew the two wiring clips as shown Step (9) Cut this ziptie to release the gearbox...
  • Page 18 Replacing the Gearbox Step (10) Slide the gearbox off axle...
  • Page 19 Replacing the Gearbox Step (11) Reverse above procedures to replace the gearbox...
  • Page 20 Customer Service Guide VII) Exploded View...
