Summary of Contents for SOUNDMASTER ICD3030

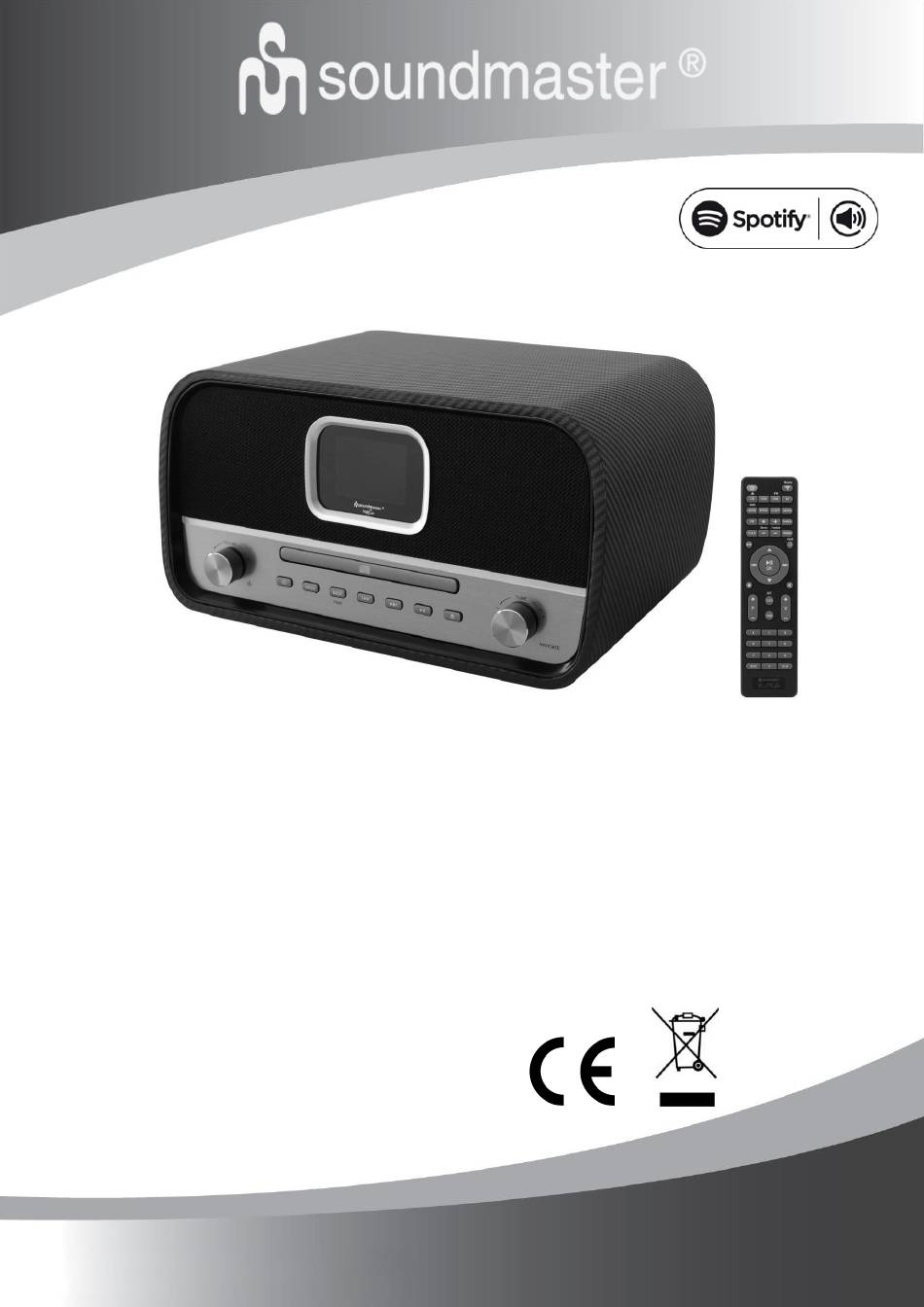

- Page 1 DEUTSCH ESPANOL ENGLISH DANSK FRANÇAIS NORSK NEDERLANDS SVENSKA ITALIANO SUOMI Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.soundmaster.de ICD3030...
- Page 2 Safety, Environmental and Setup Instructions No objects filled with liquids, such as vases, ENVIRONMENTAL PROTECTION shall be placed on the apparatus. Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection ...
-
Page 3: Table Of Contents
ICD3030 / English Instruction Manual TABLE OF CONTENT LOCATIONS OF CONTROLS ..................2 REMOTE CONTROL ....................3 OPERATION YOUR REMOTE CONTROL ..............3 CONTENT OF DELIVERY ..................3 GETTING STARTED / SET UP ................... 4 GET THE NETWORK ENVIRONMENT READY ............4 MAIN MENU ........................ -
Page 4: Locations Of Controls
ICD3030 / English Instruction Manual LOCATIONS OF CONTROLS FRONT VIEW Display Menu Remote sensor PAIR/BACK On/Off, VOL+/VOL- Disc Tray NAVIGATE, OK, TUNE+/TUNE- Main menu (Source) BACK VIEW 13 USB jack 16 Antenna socket 14 Headphone jack 17 DC IN 15 AUDIO IN... -
Page 5: Remote Control
ICD3030 / English Instruction Manual REMOTE CONTROL POWER ON/OFF INTRO/AMS REPEAT BASS +/- USER (MY EQ) MENU 11 P +/- 12 0-9 13 INFO 14 RADIO / 15 SLEEP 16 Source button 17 RANDOM 18 TREBLE +/- 19 PROGRAM 20 PAIR /... -
Page 6: Getting Started / Set Up
Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection. You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and ICD3030. Check if the light indicators on the network device are in appropriate status. MAIN MENU Under the main menu, you can select the following modes: ®... - Page 7 Select the WLAN region to obtain the optimal WLAN connectivity: Europe. Scanning for the network ICD3030 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you. There will be hints for the type of network – if your network devices support WPS function, it will be [WPS] before the SSID (the name of the network device).
-
Page 8: Equaliser
WPS encrypted network WPS encrypted networks are identified by WPS at the start of the network name when the ICD3030 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit. -
Page 9: Network
Network profile ICD3030 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete. -
Page 10: Language
From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set ICD3030 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. -
Page 11: Spotify
SPOTIFY The ICD3030 is compatible with Spotify Connect, so the ICD3030 device can act as a wireless speaker controlled by the Spotify App, which is available for iOS, Android smart devices and a desktop client for PCs. - Page 12 From this point on, the menus are generated from the shared media server. The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. ICD3030 can only play music and playlists. There is also a search function which finds tracks in a similar way to Internet radio search.
- Page 13 DMR (DLNA Streaming) Shared music is a way of music streaming which you look for the music list and control playback from ICD3030. This topic will introduce another way to do the music streaming which is not necessary to control playback on ICD3030.
- Page 14 ICD3030 / English Instruction Manual Right click any music in the library and choose Play to ICD3030. Then a box of music playback pops up for the streaming. Then a box of music playback pops up for the streaming. ...
-
Page 15: Dab
Scanning for stations The first time you select DAB radio mode, or if the station list is empty, ICD3030 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: ... - Page 16 ICD3030 / English Instruction Manual Press the “BACK” button to view a list of stations and press “OK” to select. Once selected, the station plays and the screen shows information about station, track or show as broadcast. Presets To store an DAB radio preset, press and hold the “PROGRAM” on Remote Control until the display shows the “Save preset”...
-
Page 17: Bluetooth
When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash. Turn on your smartphone, tablet or other Bluetooth devices to search for the device. The Bluetooth pairing name is “ICD3030”. -
Page 18: Aux In
ICD3030 / English Instruction Manual When pairing is successful, the Bluetooth indicator will light up and stop flashing. To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices. Press “ ” on the radio or Remote Control to start or pause the playback. You can press “... -
Page 19: Sleep
ICD3030 / English Instruction Manual CD Program 1. Set the unit in Stop mode 2. Press the “PROGRAM” button on the Remote Control. The display will show “T01 P01” and “T01” flash. 3. Choose with “ ” or “ ” or 0 to 9 on the Remote Control, the track which should be programmed and confirm the track by pressing the “PROGRAM”... -
Page 20: Undok
• Adjust volume for an entire group or for individual products within a group • Control products which have not been assigned to any group • Control all the modes of the ICD3030, including Internet Radio, Media Player, USB playback, DAB, FM, Bluetooth, CD and AUX-In •... -
Page 21: Troubleshooting
ICD3030 / English Instruction Manual TROUBLESHOOTING Error Remedy The device does not Check it the power adaptor is connected properly. switch on. Switch automatically off Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes. -
Page 22: Technical Specifications
ICD3030 time, it may cause crash, reboot ICD3030 and/or your device. All other undetermined ICD3030 may process large amount of data after a period of cases. operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot ICD3030 if necessary. - Page 23 HERSTELLER / IMPORTEUR Wörlein GmbH Tel: +49 9103 71 67 0 Gewerbestraße 12 Fax: +49 9103 71 67 12 D 90556 Cadolzburg, Germany E-Mail: info@woerlein.com Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät in Wörlein GmbH potrjuje, da je ta naprava v skladu z Übereinstimmung mit den grundlegenden Anforderungen bistvenimi zahtevami in drugimi ustreznimi določbami und den übrigen einschlägigen Bestimmungen der Richtlinie...
