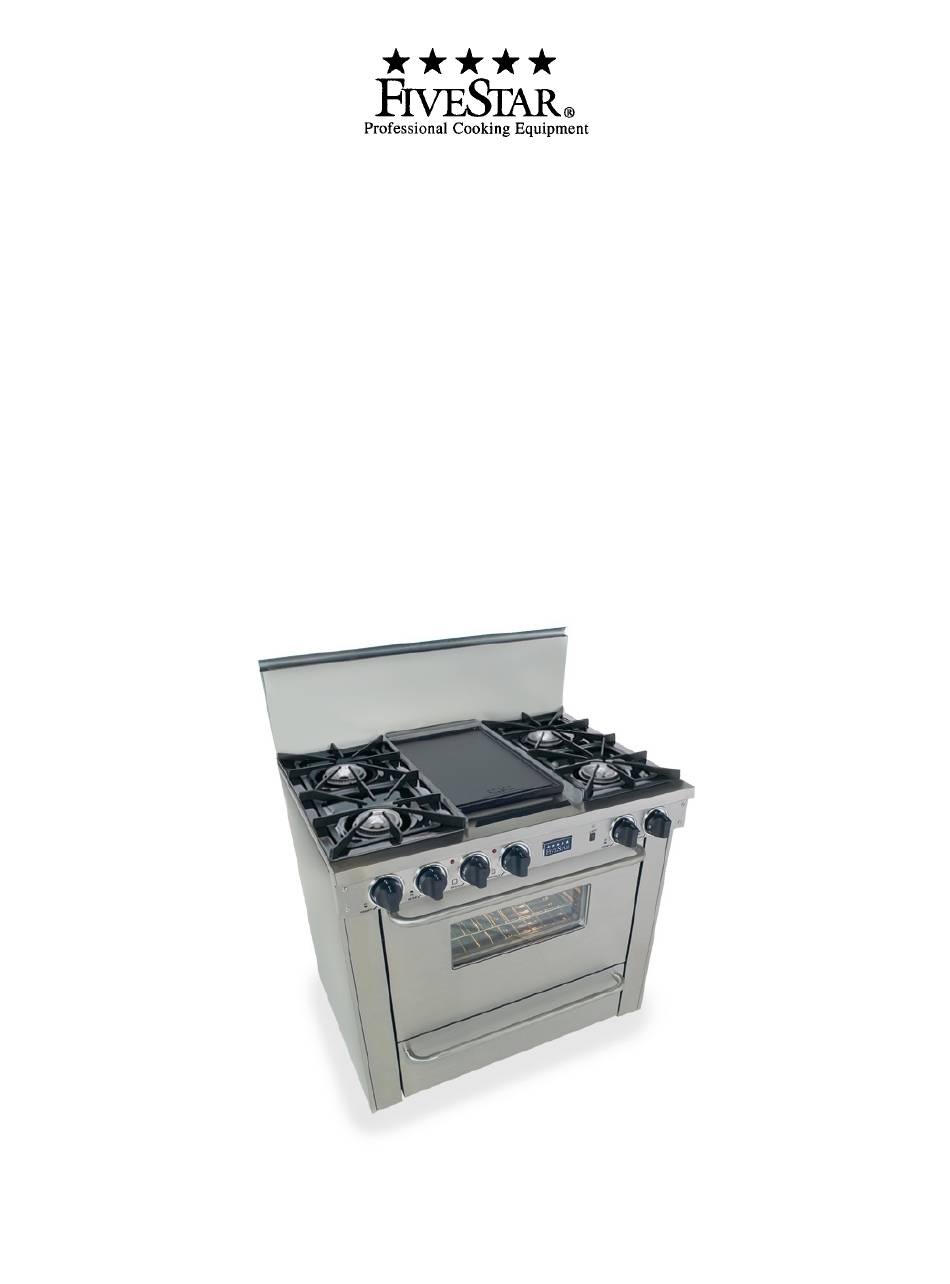

NSTALLATION NSTRUCTIONS ROFESSIONAL ANGE ODELS 36” A ANGE WITH URNERS 36” N ATURAL ODELS *TN310-7BW *TN310-7W LP/P HESE MODELS ARE FIELD CONVERITBLE FOR ROPANE GAS 36” LP/P ROPANE ODELS *PN310-7BW *PN310-7W HESE MODELS ARE FIELD CONVERTIBLE FOR ATURAL GAS 800-251-7224, 8 F YOU HAVE QUESTIONS CALL AM TO...
Page 2
Be sure to leave these instructions with the Consumer. Hoods should be 24" min. deep and at least the same width as the cooktop. FiveStar hoods may be installed from 24” to 30” above the Note to Consumer • Keep these instructions for future cooking surface.
Page 3
NSTALLATION NSTRUCTIONS Please read these instructions before attempting to install this range Inspection & Unpacking Check the range carton for visible damage. If there is damage or even creases in the carton, contact the carrier, request an inspection and file the appropriate freight claim.
STEP 1 REMOVE PACKAGING Before moving the range indoors: Remove outer carton and packing material from the shipping base. The range is now ready for removal from the wooden base. STEP 2 Due to the weight of these ranges, use a dolly with soft wheels to move this range.
STEP 6 ELECTRIC CONNECTION This range must be supplied with 120 volt, 60 Hz. and connected to an individual, properly grounded branch circuit protected by a 15 amp circuit breaker or time delay fuse. The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong grounding wall receptacle to minimize the possibility of shock hazard from this...
STEP 7 CONNECTING THE RANGE TO GAS Because hard piping restricts When using test pressures greater movement of the range, the use of an than ½ psig to pressure test the gas A.G.A. certified flexible metal supply system of the residence, appliance connector is recommended disconnect the range and individual unless local codes require a hard-...
STEP 8 LEVEL THE RANGE 1. Remove shipping tape from the leveling legs. 2. Carefully slide the range into position. Be careful not to damage the floor or entangle power cord and gas flexible tubing. 3. To adjust leveling legs, turn counter- clockwise to raise the range;...
STEP 11 ASSEMBLE SURFACE BURNER COMPONENTS • Remove shipping screw from each surface burner. • Remove each surface burner. • Place drip pan in position under each burner. Locate “dimples”. • Re-install surface burners. • Install burner pans. • Install burner grates. STEP 12 SURFACE BURNER OPERATION OPEN SURFACE BURNERS...
Page 11
STEP 15 CHECKLIST FOR OPEN BURNER INSTALLATION MAKE SURE ALL CONTROLS ARE IN THE “OFF” POSITION. Gas supply is “on” Electric power is “on” Burner drip pans in position under burners Surface burners in position Burner pans in positions Burner grates in position Oven and broiler racks installed Surface burner ignition test Griddle/Grill burner ignition test...
