Instruction
Manual
Model
DBSI325
Allparts Equipment Inc 1-877-475-5660
www.allpartsinc.com
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
PROFESSIONAL POWER TOOLS
IMPORTANT
Please make certain that the person who is to use this equipment
carefully reads and understands these instructions before starting
operations.
The Model and Serial No. plate is located on the frame. Record these
numbers in the spaces below and retain for future reference.
Model No.
Type
Serial No.

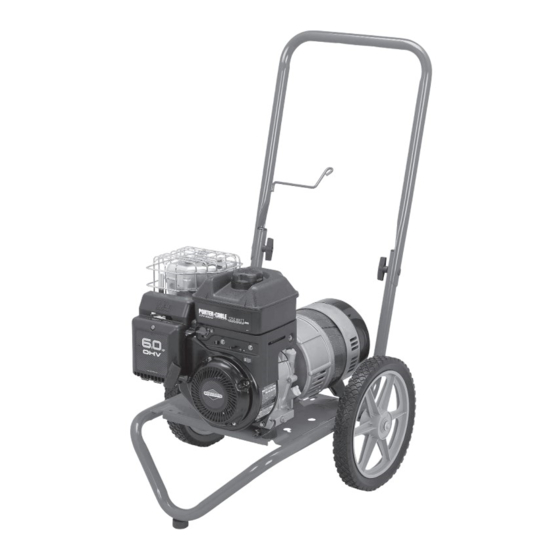

Generator
Part No. D24368-024-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Porter-Cable DBSI325-1
Summary of Contents for Porter-Cable DBSI325-1
- Page 1 To learn more about Porter-Cable The Model and Serial No. plate is located on the frame. Record these numbers in the spaces below and retain for future reference. visit our website at: http://www.porter-cable.com...
-
Page 2: Specification
SPECIFICATION MODEL DBSI325 HORSE POWER RATED/SURGE WATTS 3250/8500 VOLTAGE AMPERAGE 27.1A PHASE SINGLE FREQUENCY 60 Hz ENGINE SPEED 3600 RPM MAX. AMBIENT TEMP. 104° F FUEL CAPACITY .75 GALLON RUN TIME @ 50%/100% 2.3/1.5 HRS • This product is equipped with a spark arresting muffler. If the product will be used around flammable materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or other similar items, then an approved spark arrester must be installed and is legally required in the state of California. -
Page 3: Warranty
WARRANTY PORTER-CABLE CORPORATION warrants to the original purchaser that each new electric generator and service part is free from defects in material and workmanship, and agrees to repair or replace under this warranty any defective product or part as follows from the original date of purchase. -
Page 4: Risk Of Electrocution And Fire
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and un- Information for preventing damage to URGENT SAFETY INFORMATION - A HAZARD derstand. This information relates to THAT WILL CAUSE SERIOUS INJURY OR protecting YOUR SAFETY and PRE- equipment. - Page 5 READ AND UNDERSTAND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE GENERATOR. RISK OF ELECTROCUTION AND FIRE (cont’d) WHAT COULD HAPPEN HOW TO PREVENT IT HAZARD Operation of generator in rain, Water is an excellent conductor of Operate generator in a clean, dry, wet, icy, or flooded conditions.
-
Page 6: Risk Of Fire
READ AND UNDERSTAND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE GENERATOR. RISK OF FIRE HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Attempting to fill the fuel tank while Gasoline and gasoline vapors can Turn engine off and allow it to cool the engine is running. -
Page 7: Risk Of Breathing - Inhalation Hazard
READ AND UNDERSTAND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE GENERATOR. Risk of Injury and Property Damage When Transporting Generator HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT If generator is equipped with a fuel Fire, Inhalation, Damage to Vehicle Fuel or oil can leak or spill and could shut-off valve, turn the valve to the Surfaces result in fire or breathing hazard, seri-... - Page 8 READ AND UNDERSTAND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE GENERATOR. RISK OF UNSAFE OPERATION HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Operation of generator in careless All sources of energy include the po- • Review and understand all of manner.
-
Page 9: Risk Of Hot Surfaces
READ AND UNDERSTAND ALL WARNINGS BEFORE ATTEMPTING TO OPERATE GENERATOR. RISK OF HOT SURFACES WHAT COULD HAPPEN HAZARD HOW TO PREVENT IT Contact with hot engine and gener- Contact with hot surfaces, such as en- During operation, touch only the ator components. -
Page 10: Grounding The Generator
ASSEMBLY OBTAINING ELECTRICITY FROM THE GENERATOR Read this manual. Do not attempt to operate There are basically 2 ways to obtain electricity from a generator: equipment until you have read this Manual for Safety, Operation, and Maintenance Instruc- 1. Use of extension cords directly from the generator tions. -
Page 11: Operation
OPERATION KNOW YOUR GENERATOR Read this General Manual and Safety Rules before operation of your Generator. Compare the illustration Never fill fuel tank completely. Fill tank to 1/2" in your parts manual with your generator to familiarize below the bottom of the filler neck to provide yourself with the location of various controls and ad- space for fuel expansion. -
Page 12: To Start The Engine
Overloading the generator will cause power fluctu- ations and can damage equipment and appli- ances. Porter-Cable Corporation will only be responsible for damage to customer's equipment when the generator is determined to be defective. This determination will only be made by an authorized... -
Page 13: Maintenance
MAINTENANCE CUSTOMER RESPONSIBILITIES TABLE Before each Every 25 Every 50 Every 100 Hours of Every Hours of Every Hours of Every Season Season Season MAINTENANCE TASK See Note 2 Check oil level See Note 1 Change oil Clean Air Filter Assembly Check Spark Plug Prepare Unit for Storage Prepare unit for storage if it is to remain idle for more than 30 days. -
Page 14: Wattage Calculations
WATTAGE CALCULATIONS IMPORTANT Never exceed the rated capacity of your generator. Serious damage to the generator or appliance could result from an overload. 1. Starting and running wattage requirements should always be calculated when matching a generators wattage capacity to the appliance or tool. 2. - Page 15 WATTAGE CALCULATIONS STARTING WATTAGE REQUIREMENTS 2. To determine the approximate starting wattage requirement for most appliances and tools with 1. Some appliances and tools will list on the motor inductive type motors, multiply the wattage that name plate the starting and running voltage and was calculated by 2 to 4 times to assure adequate amperage requirements.
- Page 16 WATTAGE CALCULATIONS HOUSEHOLD WATTAGE CALCULATOR DEVICES WITH HIGH STARTING (INDUCTIVE)LOADS APPLIANCE OR TYPICAL DEVICE LOAD DEVICE* WATTAGE** RUN WATTS TIMES (X) START FACTOR TOTAL REFRIGERATOR/ 2400 FREEZER 1800 SMALL REFRIGERATOR 2400 AIR COND.(ROOM) 7200 1000 2000 SUMP PUMP 1/2 HP 2400 FURNACE FAN 1/3 HP 1000...
-
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION Engine will not start 1. Add fuel or oil. 1. Low on fuel or oil. 2. Turn to "ON" position 2. Ignition switch in "Off" position. 3. Replace spark plug. 3. Faulty spark plug. 4. Choke in wrong position. 4. - Page 18 NOTES 18 — ENG...
- Page 19 NOTES 19 — ENG...
- Page 20 If the generator is operating equipment that is drawing half of the rated watts it is considered 50% load. Using all of the rated watts is considered 100% load. ALWAYS REFER TO THE MANUALS SUPPLIED WITH THIS UNIT Porter-Cable Corporation 4825 Highway 45 North P.O. Box 2468 Jackson, TN 38302-2468...
