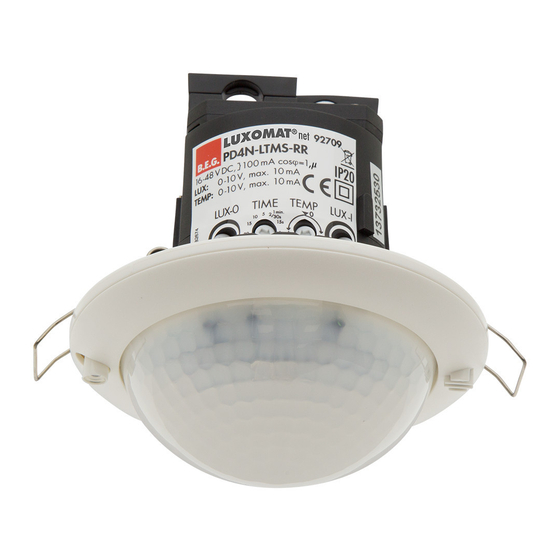

Installation and Operating Instruction for B.E.G. - occupancy detector PD4N-LTMS-RR-FC

1. Product information

• Multisensor (presence, temperature, brightness detection)
for connection to proprietary bus systems
• Output of the current light and temperature value as
analog voltage
• Low noise Reed Relays
• Other functions via remote control adjustable

2. Operation

The presence detector has sensors for presence;
Temperature and brightness detection which are suitable for
connection to proprietary bus systems. The output of the signals
takes place by analog voltage values 0-10V (10LUX = 0.1 V,
0.5 ° C = 0.1 V) at the output terminals. For evaluating the
motion detection a floating reed relay is still available.

3. Safety information

Work on the mains supply may only be carried out by
qualified professionals or by instructed persons under the
!
direction and supervision of qualified skilled electrical
personnel in accordance with electrotechnical regulations.
! Disconnect supply before installing!
! This device is not suitable for disconnection.

4. Montage

A circular opening of diameter 68 mm must first of all be
produced in the ceiling.
68 mm
4 4
3
1) Using the sensor
1
2) Cover slat (if necessary)
3) Protective cover
4) Ceiling
(68 mm diameter hole, drilled)
2
Having connected up the cables in accordance with regulations,
the detector is inserted into the opening as shown in the
drawing opposite and fixed into position with the assistance
of the spring clip.

5. Hardware configuration FC

Position LED's and potentiometer
LUX-I
LUX-0 TIME TEMP
0
1min.
5 2
10
30s
15 15s
+ (C) −
(B) 1s
30
(A)
I
Potentiometer (A): Potentiometer Brightness adjustment LUX-0
Potentiometer (B): Potentiometer Follow-up time
Potentiometer (C): Potentiometer Temperature setting TEMP
Potentiometer (D): Potentiometer Brightness adjustment LUX-I
LED I: red
Sensor (LUX-0): Brightness
Sensor (LUX-I) : Brightness
Sensor
6. Self test cycle/Startup behavior
The product enters an initial 60-second self-test cycle, when the
supply is first connected. During this time the device does not
respond to movement and stays on.

7. Putting into operation / Settings

TIME
1min.
5
10 2
30s
15
15s
30
1s
LUX-0
LUX- I
TEMP
0
+

8.1 Brightness adjustment

With the potentiometers LUX 0 and LUX-I, the output voltage of
the 0-10V output of + / - 10% change and the slope of the lux /
VDC curve can be adjusted. Losses caused by cable lengths can
be compensated.
VDC
10 V
5 V
(D)
PD4N-LTMS-RR
LUX-0
Sensor
LUX-I
1
(1) : Temperature
Adjustment follow-up time "motion detection"
The follow-up time can be set from 1 sec to 30 min.
Brightness adjustment LUX-0
The potentiometer LUX-0 can set fine adjustment of
the light output value
Brightness adjustment LUX-I
The potentiometer LUX-I can set fine adjustment of the
light output value
Temperatur Offset
With potentiometer TEMP, an offset can be set
(+4 ° C to -4 ° C)
Potentiometer 2
(LUX)
LUX
500 lux 1000 lux
8.2 Brightness value output as a voltage value`the LUX-terminal
The brightness value output corresponds each 10LUX = 0.1 V
The brightness measurement includes the area between 0 LUX =
0V to 10V = 1000 lux
An update of the measured values are approximately every
0.5 s
VDC
10
5
0
500

8.3 Temperature adjustment

With the TEMP potentiometer output voltage can be offset bet-
ween -4ºC (-0.8V) to 4ºC (0.8V) regarding to the temperature
measured by the temperature sensor in order to compensate
the measurement of the sensor depending where the device
is placed. The neutral position of the potentiometer is marked
with an arrow where the 0 offset is.
VDC
10 V
5 V
25

8.4 Temperature value output as a voltage value

to the TEMP terminal
The temperature value output corresponds each 0.5 ° C = 0.1
V. The temperature range is the range between 0 ° C = 0 V
and goes to 50 ° C = 10V is done to update the readings
approximately every 10s
VDC
10
5
0
25

9. Motion detection

The motion sensor turns on the relay with active motion and
turns off when the unit detects no movement and the follow-up
time has expired. After switching off the motion detection for
about 2s is deactivated to prevent an unwanted power up
again. An update of the measured values are approximately
every 20ms.
