Summary of Contents for Hytera PD355LF
- Page 1 DIGITAL PORTABLE RADIO OWNER’S MANUAL...
- Page 3 Preface Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the product. This manual is applicable to the following product: PD365LF Digital Portable Radio...
- Page 4 RF radiation. Hytera Communications Corporation Limited (the Company) endeavors to These standards consist of: achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given.
- Page 5 Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/ controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures: RF energy will be generated only when the radio is transmitting.
-
Page 6: Table Of Contents
Contents Items in the Package ----------------------------------------1 Features and Operations ----------------------------------10 Product Overview --------------------------------------------2 Home Screen -------------------------------------------------------10 Product Controls ---------------------------------------------------2 Contact ----------------------------------------------------------10 Programmable Keys ----------------------------------------------3 Message ---------------------------------------------------------10 Before Use ------------------------------------------------------3 Call Log ----------------------------------------------------------10 Assembling the Radio --------------------------------------------3 Scan -------------------------------------------------------------------11 Charging the Battery ----------------------------------------------4 Radio Settings -----------------------------------------------------11 Status Indication ---------------------------------------------6 Device Information ------------------------------------------------12... -
Page 7: Items In The Package
Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. All pictures in this manual are for reference only. Note... -

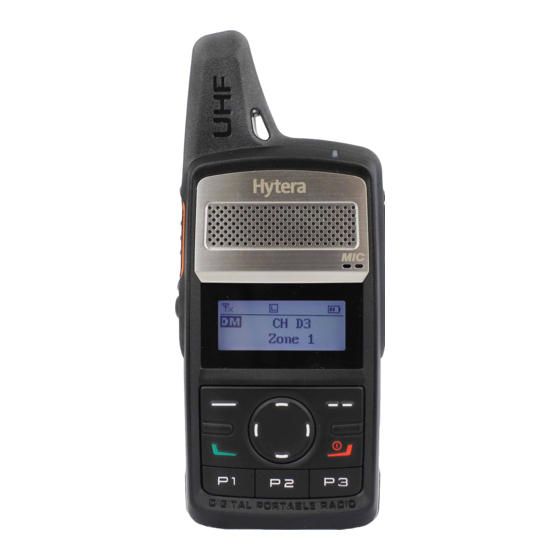

Page 8: Product Overview
Product Overview Product Controls... -
Page 9: Programmable Keys
Product Overview Before Use Assembling the Radio Programmable Keys For enhanced convenience, you may request your dealer to program the 1. Attaching the Battery SK1, P1, P2 and P3 as shortcuts to certain feature. To attach the battery, perform the following steps. “click”... -
Page 10: Charging The Battery
Before Use Turn off the radio before removing the battery. Note 2. Attaching the Earpiece 1. Open the connector cover as ① shown. 2. Align the index of the earpiece with that of the radio and connect the earpiece to the radio as ② shown. 3. - Page 11 Before Use Using the Power Adapter (Standard) Using the Rapid-rate Charger (Optional) Please use the power adapter specified by the Company to charge the Please use the rapid-rate charger specified by the Company to charge radio (with battery attached). Charging Diagram is listed below. the battery.
-
Page 12: Status Indication
Status Indication Status Indication LCD Icon No signal. RSSI Icon More bars indicate better signal con Name Icon Radio Status strength. Battery More bars indicate more battery Speaker Icon The speaker is unmuted. Power Icon power. TX Power Indicates Private Call during a call. ●... -
Page 13: Menu Navigation
Status Indication Menu LED Indication Radio Status T h e L E D i n d i c a t o r Powering on. flashes green. T h e L E D i n d i c a t o r Receiving. -
Page 14: Selecting A Zone
Basic Operation Locking and Unlocking the Keypad Selecting a Zone When the keypad is not in use, you can lock the keypad to avoid mishandling. You can lock/unlock the keypad through any of the following You can include a group of channels with the same property into a zone methods: for convenient management. -
Page 15: Call Services
Call Services All call: It is a one-way voice call from any user to all users on a If Radio B does not respond it, the radio will display appropriate ● channel. indications. 5. Radio A can receive the call without any operation. When receiving, the LED indicator glows green and the radio displays the icon Radio A can hold down the PTT key to talk when the LED indicator glows orange and the radio displays the icon... -
Page 16: Calling On Analog Channel (No Signaling)
Call Services Favorite Contact You can add or delete a contact in the “Favorite Contact” menu. Message The duration of LED indicator glowing orange (Call Hang Time) is preset by your dealer. The call will end if neither You can send the Quick Text message directly. In the inbox, you can Note party talks before this duration expires. -
Page 17: Scan
Features and Operations It can store up to 10 call logs. When the Call Log is full, the earliest call If your radio stays on a non-priority channel, you can see the icon log will be overwritten by the latest one automatically. on the LCD. -
Page 18: Device Information
Features and Operations You can adjust the squelch threshold required for the radio to be indications set by your dealer, such as the LED indicator, vibration and unmuted. tone. This feature is mainly used in special missions. Generally, the higher squelch level requires stronger signal. If the squelch If an audio accessory is connected to the radio, it will level is set to “Open”, the speaker will keep unmuted irrespective of the output the tone when the Covert Mode is enabled. -
Page 19: Time-Out-Timer
Features and Operations Time-Out-Timer CTCSS/CDCSS Match: The radio is allowed to transmit when ● CTCSS/CDCSS is matched. The feature is to prevent you from occupying a channel for an extended CTCSS/CDCSS Mismatch: The radio is allowed to transmit when ● period. -
Page 20: Troubleshooting
Troubleshooting If the solutions below cannot fix the problems, or there are other questions, please contact us or your local dealer for more technical support. Phenomena Analysis Solution The battery may be improperly installed. Remove the battery and then attach it. The battery power may be used up. -
Page 21: Care And Cleaning
Care and Cleaning Product Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Turn off the product and remove the battery before Product Care cleaning. Caution Clean up the dust and fine particles on the product surface and ●... -
Page 22: Optional Accessory
Optional Accessory Fixed Frequency The following item is the main optional accessories for the radio. For Channel Frequency(MHz) more information of other accessories, please consult your local dealer. 446.00625 446.01875 Use the accessories specified by the Company only. If not, the Company shall not be liable for any loss or 446.03125 Caution damage arising out of use of unauthorized accessories. - Page 23 Hytera Communications Corporation Limited. 2014 Hytera Communications Corporation Limited. O10745 C10524 L07157 8 1 1 PD3 6 0 0 0 3 0 0...
