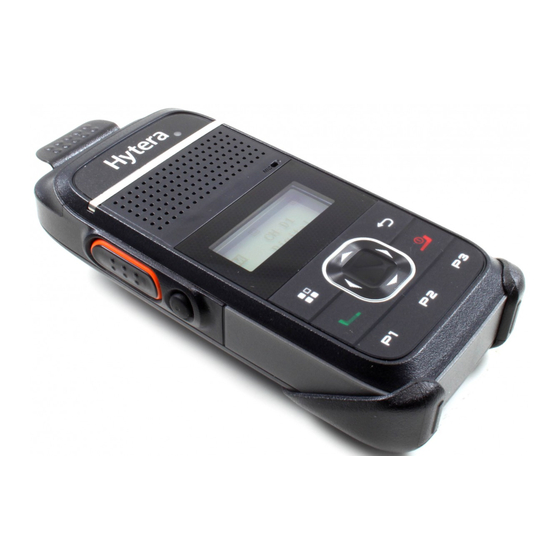

Hytera PD-355 Owner's Manual
Hide thumbs Also See for PD-355:

Advertisement

Quick Links

DIGITAL PORTABLE RADIO
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-355 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hytera PD-355

  • Page 1 DIGITAL PORTABLE RADIO OWNER’S MANUAL...
  • Page 3 Preface Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the product. This manual is applicable to the following product: PD35X Digital Portable Radio (X may represent 2, 5, 6 or 8)
  • Page 4 RF radiation. Hytera Communications Corporation Limited (the Company) endeavors to These standards consist of: achieve the accuracy and completeness of this manual, but no warranty of accuracy or reliability is given.
  • Page 5 Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/ controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit not more than 50% of the time and always adhere to the following procedures: RF energy will be generated only when the radio is transmitting.
  • Page 6: Table Of Contents

    Contents Items in the Package ----------------------------------------1 Home Screen -------------------------------------------------------12 Contact ----------------------------------------------------------12 Product Overview --------------------------------------------2 Message ---------------------------------------------------------12 Product Controls ---------------------------------------------------2 Programmable Keys ----------------------------------------------3 Call Log ----------------------------------------------------------12 Before Use ------------------------------------------------------3 Scan -------------------------------------------------------------------13 Radio Settings -----------------------------------------------------13 Assembling the radio ---------------------------------------------3 Device Information ------------------------------------------------14 Charging the Battery ----------------------------------------------4 One Touch Call -------------------------------------------------15...
  • Page 7: Items In The Package

    Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Power Adapter Manual Strap Battery Radio Unit Belt Clip All pictures in this manual are for reference only. Note...
  • Page 8: Product Overview

    Product Overview Product Controls LED Indicator Belt Clip Speaker PTT (Push-to-Talk) Key Microphone SK1 (Side Key 1) LCD Display OK/ Menu Cancel/Return Key Power On/Off/ESC Call Key Strap Hole RF Test Port (for Up Key technician only) Charging/Data Battery Latch Volume +/Right Volume -/Left Connector...
  • Page 9: Programmable Keys

    Product Overview Before Use Assembling the radio Programmable Keys 1. Attaching the Battery For enhanced convenience, you may request your dealer to program the SK1, P1, P2 and P3 as shortcuts to certain feature. To attach the battery, perform the following steps. “...
  • Page 10 Before Use 2. Attaching the Earpiece 1. Open the connector cover as ① shown. 2. Align the index of the earpiece with that of the radio and connect the earpiece to the radio as ② shown. 3. Turn the earpiece clockwise as ③ shown to fasten it. 3.
  • Page 11: Charging The Battery

    Before Use Charging the Battery Charging Status Indication on the radio : Charging Radio Status Icon Make sure the radio is powered off before charging. Status ● Display in a cycle: Read the Safety Information Booklet in advance to get Charging necessary safety information.
  • Page 12: Status Indication

    Status Indication Before Use LCD Icon Icon Name Icon Radio Status Battery Power M o r e b a r s i n d i c a t e m o r e battery power. Icon Low power for the current channel.
  • Page 13: Led Indicator

    Status Indication LED Indicator M i s s e d C a l l A call is missed. Icon Unread message(s). Message Icon Inbox is full. No signal. RSSI Icon More bars indicate better signal strength. LED Indication Radio Status Speaker Icon The speaker is unmuted.
  • Page 14: Menu Navigation

    Menu Navigation The following menu list shows all the menus of the radio. You can customize the menu item in the radio via your dealer. To select and confirm the options shown in the menu, press the OK/Menu key and then press the Up or Down key to select your needed option, finally press the OK/Menu key.
  • Page 15: Basic Operation

    Basic Operation Selecting a Channel Powering On/Off Adjusting the Volume Long press the Power On/Off/ESC key Locking and Unlocking the Keypad Selecting a Zone When the keypad is not in use, you can lock the keypad to avoid You can include a group of channels with the same property into a zone mishandling.
  • Page 16: Call Services

    Basic Operation Enable: The keypad will be locked if there is no radio operation » within the preset time. Disable: The keypad will not be locked automatically. But you can » lock/unlock the keypad via methods mentioned above. Call Services After the radio is powered on, you can make and receive calls.
  • Page 17: Calling On Analog Channel (No Signaling)

    Call Services glows orange and the radio displays the icon If Radio B does not respond it, the radio will display appropriate indications. Radio B can hold down the PTT key to talk when the LED indicator 7. Radio A can receive the call without any operation. When glows orange and the radio displays the icon receiving, the LED indicator glows green and the radio displays the If Radio B does not respond it, the radio will display appropriate...
  • Page 18: Features And Operations

    Features and Operations Home Screen The radio supports a maximum of 10 Quick Text messages programmed by your dealer. You can select a Quick Text message and send it directly. The feature allows the radio to return to the home screen directly. Inbox To return to the home screen directly, press Contact...
  • Page 19: Scan

    Features and Operations to initiate a call or delete it. To delete all the call logs, go to “Call Log -> on the LCD. If your radio is on Priority Channel 1 or Priority Channel 2, Outgoing/Incoming/Missed -> Delete All”. you can see the icon on the LCD accordingly.
  • Page 20: Device Information

    Features and Operations Power Level Timed: If no operation or signal transmission/receipt occurs within the ● time preset by the dealer, the backlight will be turned off automatically. You can set the TX power level to high or low. High power can extend LED Indicator the signal coverage, enabling you to communicate with farther radios.
  • Page 21: One Touch Call

    Features and Operations Transmission Management This feature can prevent your radio from interfering with other Operation: Go to “Settings -> Device Info”. transmitting radios on the same channel. If you hold down the PTT key One Touch Call while the channel is in use, your radio will keep beeping, alerting you to This feature allows you to make calls or send messages to the predefined transmission prohibition.
  • Page 22: Squelch Off Momentary

    Features and Operations Operation Press the programmed Monitor key to enable the feature, then the ● radio displays the icon press this key again to disable the feature. Hold down the programmed Monitor Momentary key to enable the ● feature, then the radio displays the icon ;...
  • Page 23: Troubleshooting

    Troubleshooting If the solutions blow cannot fix the problems, or there are other questions, please contact us or your local dealer for more technical support. Phenomena Analysis Solution The battery may be improperly installed. Remove the battery and then attach it. The battery power may be used up.
  • Page 24 Troubleshooting You may be too far away from other members. Move towards other members. You may locate in an unfavorable position. For example, your communication may be blocked Move to an open and flat area, and restart the radio to try again. The noise is too loud.
  • Page 25: Care And Cleaning

    Care and Cleaning Product Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care Turn off the product and remove the battery before cleaning. Caution Do not pierce or scrape the product. Clean up the dust and fine particles on the product surface and ●...
  • Page 26: Optional Accessory

    Optional Accessory The following item is the main optional accessories for the radio. For more information of other accessories, please consult your local dealer. Use the accessories specified by the Company only. If not, the Company shall not be liable for any loss or Caution damage arising out of use of unauthorized accessories.
  • Page 27 Hytera Communications Corporation Limited. 2014 Hytera Communications Corporation Limited. O10745 C10524 Z04313 8 1 1 PD3 5 0 0 0 1 2 0...
