All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes MKD6219M
Summary of Contents for Acnodes MKD6219M

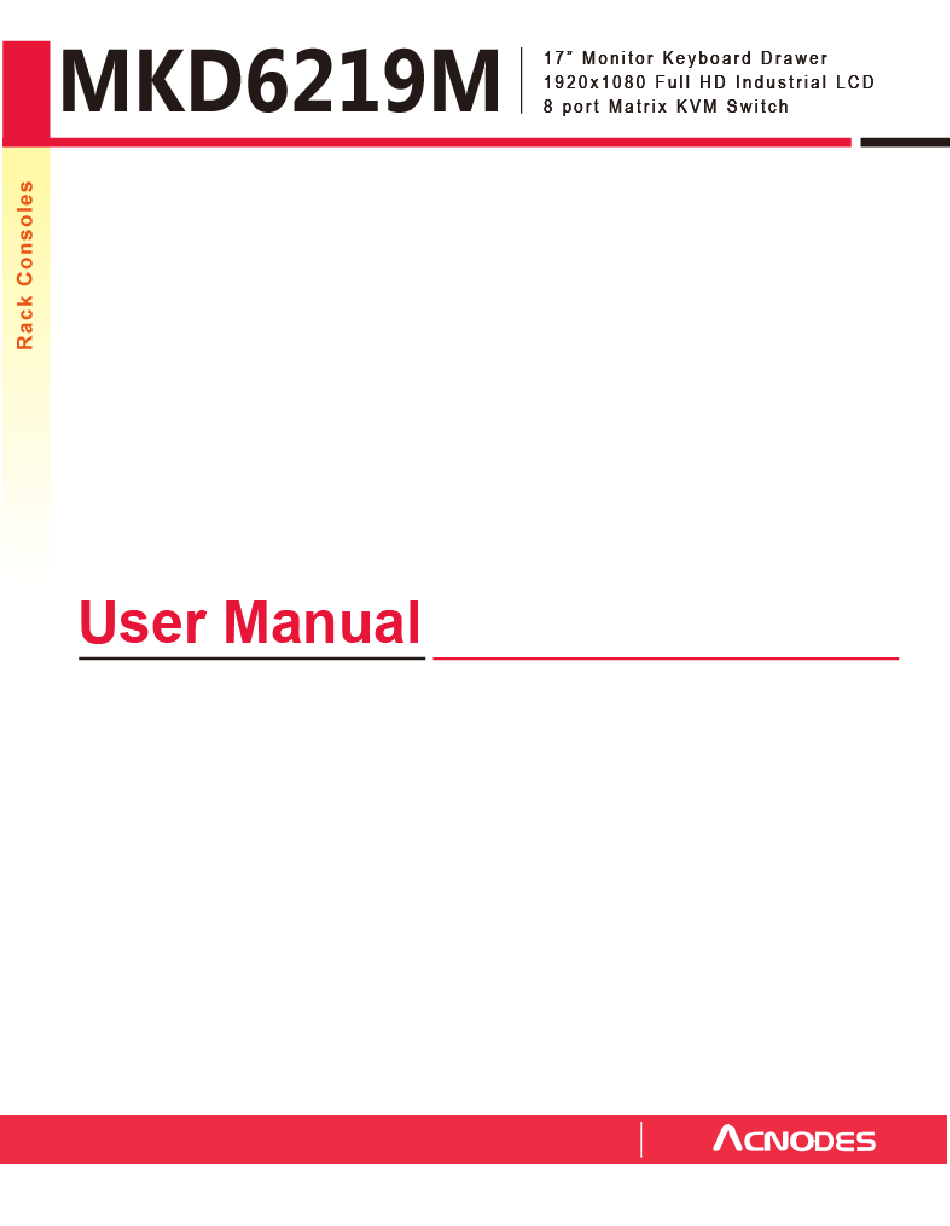

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Kvm Integration
On-screen Display Operation ( OSD ) P.9 - 10 < Part. 3 > Options P.11 Audio P.12 48V, 24V or 12VDC power < Part. 4 > KVM Integration htt p:// www. acnodes.com/files/downloads/MKVM-UM.pdf Matrix Loc al Rem ote 8- port 16-port DB-15 KVM MKP813 MKP1613 MKP824... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Package Content
< Part 1 > < 1.1 > Package Content MK D6219M unit X 1 - 6ft VGA console cable X 1 - Power cord X 1 - M6 s crew, cage nut & cup w asher X 8 < 1.2 > Structure Diagram LCD interchangeable module kit Keyboard interchangeable module kit Installation S lides... - Page 6 (W x D x H) (W x D x H) Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 11.5 kg 16.5 kg MKD6219M 17.4 x 22.84 x 1.73" 23.2 x 32.4 x 5.5” 25 lb 36 lb...
- Page 7 < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
- Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications Manufacturer Panel Panel Size ( diagonal ) 19-inch W idescreen TFT color LCD Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 11 Physical Product ( W x D x H ) 441.6 x 580 x 44 mm Specification 17.4 x 22.84 x 1.73 inch Packing ( W x D x H ) 590 x 823 x 140 mm 23.2 x 32.4 x 5.5 inch Net Weight 11.5 kgs / 25 lbs Gross W eight...
-
Page 12: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 15 < Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
- Page 16 < 3.2 > Options : DC Power Model Input rating Inp ut voltage: 1 2-Volt 24-Volt 48-Volt Inp ut range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Inp ut current - No load 50 mA 50 mA 5 0 mA - Full load 4950 mA 2450 mA...
