Acnodes MKD6220D User Manual

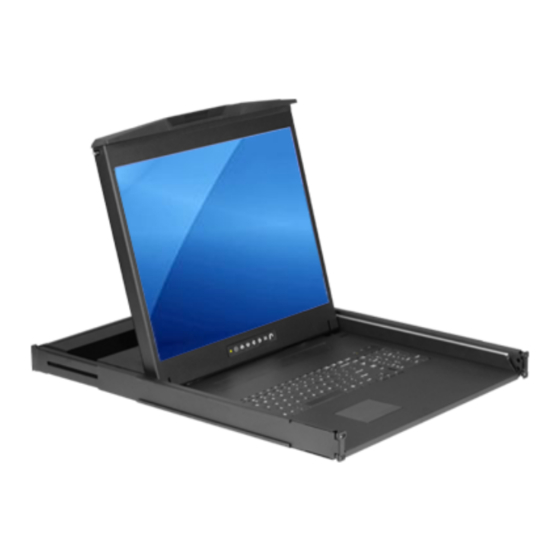

20.1" 1600 x 1200 lcd keyboard drawer 104-key keyboard with touchpad 8-port vga db-15 kvm switch
Hide thumbs Also See for MKD6220D:
Table of Contents

Advertisement

Quick Links

Download this manual
MKD6220D
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.
20.1" 1600 x 1200 LCD Keyboard Drawer
104-Key Keyboard with Touchpad
8-Port VGA DB-15 KVM Switch
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKD6220D and is the answer not in the manual?

Questions and answers

Related Manuals for Acnodes MKD6220D

Summary of Contents for Acnodes MKD6220D

  • Page 1 8-Port VGA DB-15 KVM Switch User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, July 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents MKD6220D < Part. 1 > Package Content Structure Diagram & Dimension P.1-2 Installation P.3-4 < Part. 2 > Specifi cations / OSD Product Specifi cations P.5-6 Keyboard / Mouse Specifi cations < Part. 3 > Options DC Power : 12V / 24V / 48V / 125V <...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part. 1 > Mkd6220D

    < Part 1 > < 1.1 > Package Content MKD6220D unit X 1 - 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 < 1.2 > Structure Diagram...
  • Page 6 (W x D x H) (W x D x H) Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 15.5 kg 23.4 kg MKD6220D 17.3 x 25.6 x 1.73 inch 23.4 x 33.9 x 5.5 inch 34.1 lb 51.5 lb...

  • Page 7: Installation

    < 1.3 > Installation - How to install 1U 20" LCD Tray Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. ■...
  • Page 8 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer.

  • Page 9: Product Specifi Cations

    < Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M...
  • Page 10 Physical Product ( W x D x H ) 439.6 x 650 x 44 mm Specifi cation 17.3 x 25.6 x 1.73 inch Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch 15.5 kg / 34.1 lb Net Weight 23.4 kg / 51.5 lb...

  • Page 11: Keyboard / Mouse Specifi Cations

    < 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
  • Page 12 < 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...

  • Page 13: Part. 3 > Options

    < Part 3 > < 3.1 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 14: Part 4 > Kvm Integration

    < Part 4 > KVM Integration < 4.1 > VGA DB-15 KVM Switch https://acnodes.com/files/downloads/Integrated VGA KVM Switch-UM.pdf DB-15 Local Remote 8-port 16-port 32-port Combo KP802 KP1602 KV802 KV1602 KVS801 KVS1601 P.11...
