All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MKD6220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acnodes MKD6220

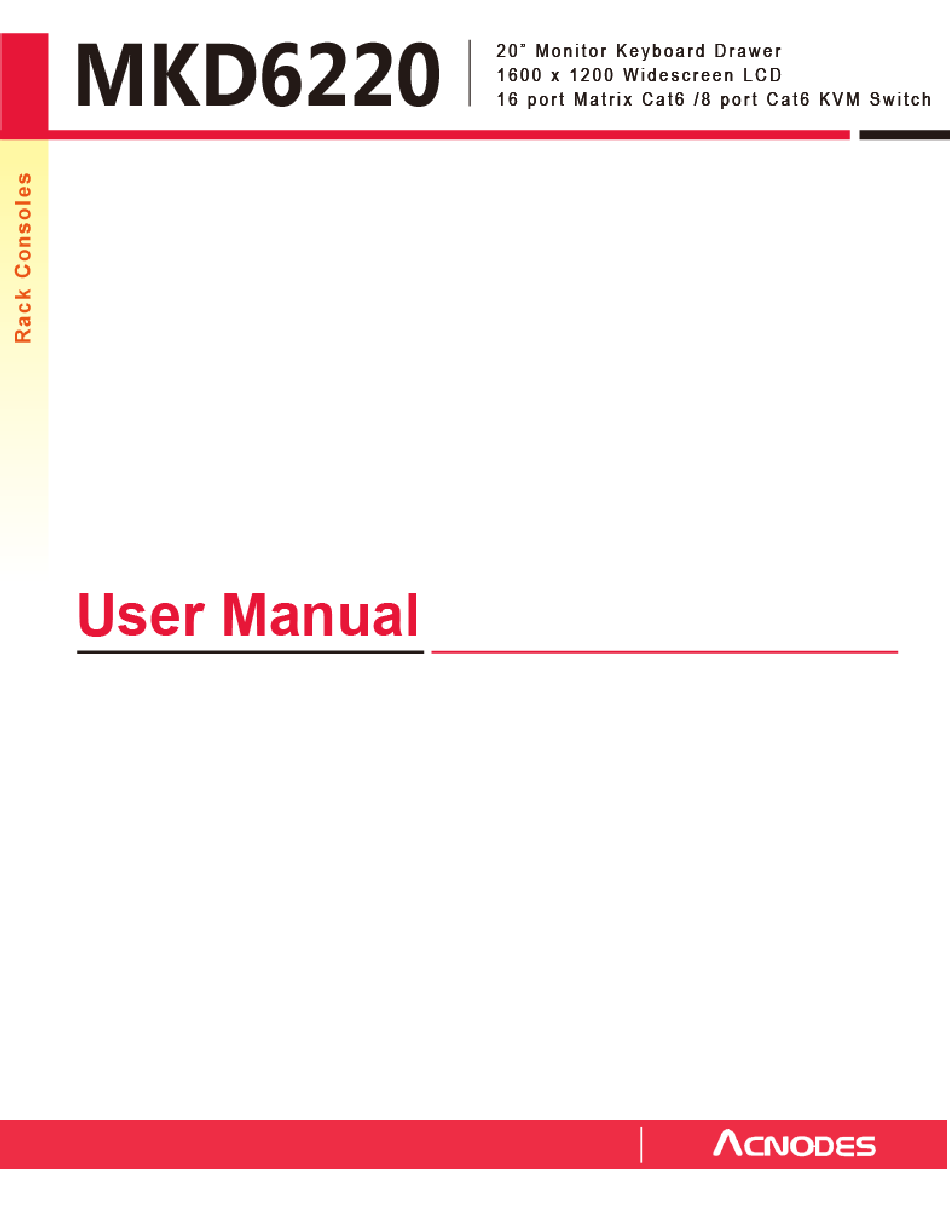

  • Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents < Part. 1 > MKD6220 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 < Part. 2 > Specifications / OSD Product Specifications P.5 - 6 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.8 - 9...
  • Page 4 < Part. 4 > KVM Integration htt p:// www. acnodes.com/files/downloads/CMKVM-UM.pdf Matrix Local Remote 16-port 32-port Cat6 KVM MKCP1613 MKCP3213 MKCP1624 MKCP3224 MKCS1602 MKCS3202 MKCS1603 MKCS3203 MKCS1604 MKCS3204 htt p:// www. acnodes.com/files/downloads/CKVM-UM.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM KCP802...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 6: Package Content

    < Part 1 > < 1.1 > Package Content MK D6220 unit X 1 - 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup was her X 8 < 1.2 > Structure Diagram Carry handle to release the 2-p t lock Membrane switch (KVM option) LCD int erch ang eab le module kit...
  • Page 7 (W x D x H) (W x D x H) Weight Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 14.5 k g 22 kg MKD6220 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 32 lb 48 lb...
  • Page 8: Installation

    < 1.3 > Installation - How to install 1U 20" LCD Tray Step ¦ Attach the left and right mounting bracket to Rear s ide r ack 19" mounting rails. Right bracket ¦ Adjust the mounting bracket to fit your rack. ¦...
  • Page 9 < 1.3 > Installation- How to use the drawer Press the handle button and slide out the drawer. Flip up the LCD to a suitable angle. Operate the LCD console drawer.
  • Page 10: Product Specifications

    < Part 2 > < 2.1 > Product Specifications Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M Viewing Angle ( L/R/U/D )
  • Page 11 Physical Product ( W x D x H ) 439.5 x 650 x 44 mm Specification 17.3 x 25.6 x 1.73 inc h Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch Net W eight 14.5 kgs / 32 lbs Gros s Weight...
  • Page 12: Keyboard / Mouse Specifications

    < 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle tim e Software support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America...
  • Page 13: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r...
  • Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
  • Page 15: Part. 3 > Options

    < Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) < 3.2 > Options : DC Power Model Input rating Inp ut voltage: 1 2-Volt 24-Volt 48-Volt Inp ut range: 9 ~ 18V...
