All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Related Manuals for Acnodes MKD6117M
Summary of Contents for Acnodes MKD6117M
- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 P.13 - 14 < Part. 3 > Options Audio P.15 48V, 24V or 12VDC power P.15 < Part. 4 > KVM Integration htt p:// www. acnodes.com/files/downlo ads/MKVM-UM.pdf Matrix Loc al Rem ote 8- port 16-port DB-15 KVM MKP813 MKP1613 MKP824...
- Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

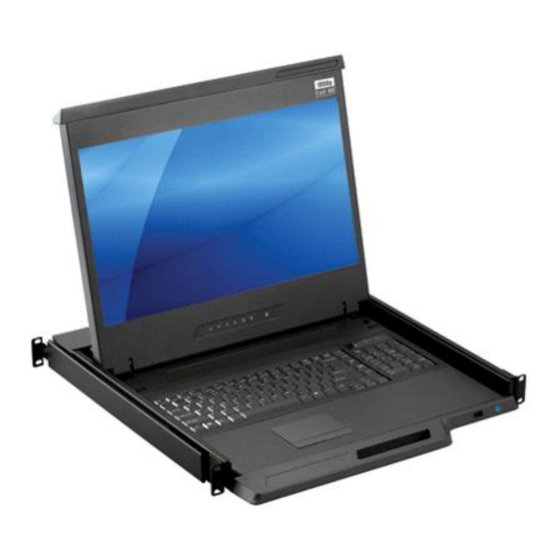

- Page 5 < Part 1 > < 1.1 > Package Content MK D6117M unit X 1 - 6ft VGA console cable X 1 - Power cord X 1 - M6 s crew, cage nut & cup w asher X 8 < 1.2 > Structure Diagram LCD interch angeable module kit Keyboard interchangeable module kit Installation Slides...
- Page 6 (W x D x H) (W x D x H) Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 15 kg 19 kg MKD6117M 17.4 x 22.8 x 1.73" 23.2 x 32.4 x 5.5” 33 lb 42 lb...
- Page 7 < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
- Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
- Page 10 < Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D )
- Page 11 Physical Product ( W x D x H ) 441.6 x 580 x 44 mm Specification 17.4 x 22.84 x 1.73 inch Pac king ( W x D x H ) 590 x 823 x 140 mm 23.2 x 32.4 x 5.5 inch Net Weight 15 kgs / 33 lbs Gross W eight...
- Page 12 < 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts...
- Page 13 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with track ball Supporting layouts America United States How to Use "MAC" Keyboard Keyboa rd Features Decrease display brightness Fast-forward Increase display brightness Mute sound Missio n control * Only works with OS X Lion Decrease volume...
- Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball N um C ap s S cr o l l C om p ose N u m C a ps Sc r o l l C o m p os e S keyboard integrated with touchpad / trackball ¦...
- Page 15 < 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r...
- Page 16 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Auto mat ically ad just sizes, centers and fine tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
- Page 17 < 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub s creen in the M ain screen. OSD M enu > MISC > PIP Mode > Large / Small / OFF Main screen Sub screen Positi on...
- Page 18 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu > MISC > PIP Mode > PBP Main scree n Sub s creen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
- Page 19 < Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V...
