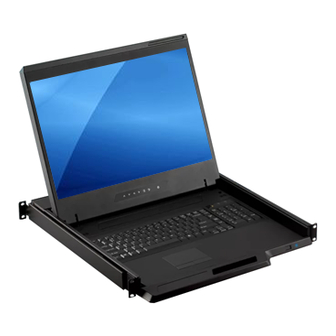

MKD6219: 1U Rackmount 19" Industrial Widescreen Monitor
Keyboard Drawer
14628 Central Ave,
Chino, CA 91710
tel:909.597.7588, fax:909.597.1939
MKD6219
1U Rackmount LCD Keyboard Drawer
© Copyright 2013 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes' web site at www.acnodes.com.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes MKD6219
Summary of Contents for Acnodes MKD6219
- Page 1 MKD6219 1U Rackmount LCD Keyboard Drawer User Manual MKD6219: 1U Rackmount 19” Industrial Widescreen Monitor Keyboard Drawer © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939...
- Page 2 ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
-
Page 3: Table Of Contents
48V, 24V or 12VDC power © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com. - Page 4 KC1601 KC3201 © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
- Page 5 Wait until your monitor is com pletely dry before plugging it in and powering it up. © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content MK D6219 unit X 1 - 6ft VGA console cable X 1 - Power cord X 1 - M6 s crew, cage nut & cup w asher X 8 < 1.2 > Structure Diagram LCD interchangeable module kit Keyboard interchangeable module kit Installation S lides... - Page 7 (W x D x H) (W x D x H) Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 11.5 kg 16.5 kg MKD6219 17.4 x 22.84 x 1.73" 23.2 x 32.4 x 5.5” 25 lb 36 lb...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 9 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 10 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 11: Product Specifications
5~500Hz 1G RMS random © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com. - Page 12 640 x 350 x 70Hz © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 14: On-Screen Display Operation ( Osd )
Light up all membran e bu tton s, please press any button for 1 - 2 seconds ( excep t the Power © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com. - Page 15 OSD position, graphic mode, ratio, reset and timer © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
- Page 16 ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
- Page 17 ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. © Copyright 2013 Acnodes, Inc. 14628 Central Ave, All rights reserved. Product description and product specifications Chino, CA 91710 are subject to change without notice. For latest product information, tel:909.597.7588, fax:909.597.1939 please visit Acnodes’ web site at www.acnodes.com.
