All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes MKD6019D

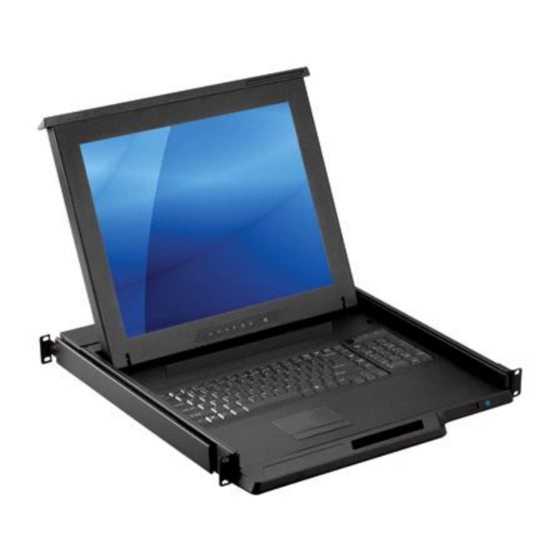

Summary of Contents for Acnodes MKD6019D

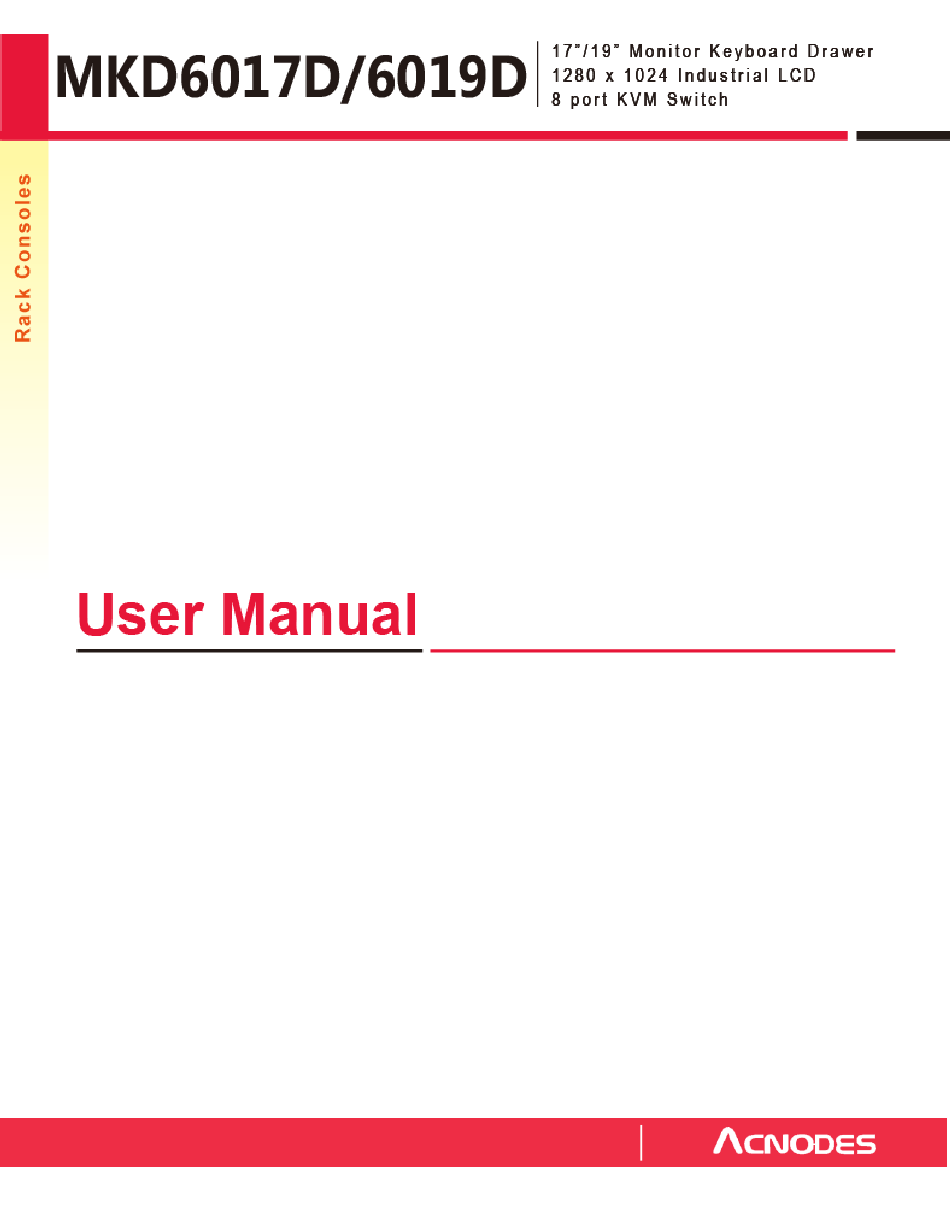

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
On-screen Display Operation ( OSD ) P.9 - 10 < Part. 3 > Options P.11 Audio P.11 48V, 24V or 12VDC power < Part. 4 > KVM Integration htt p:// www. acnodes.com/files/downloads/SKVM-UM.pdf Combo Local Remote 8-port 16-port DB-15 KVM KP802 KP1602 KV802... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content MKD601 7D/6019D unit X 1 - 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup was her X 8 < 1.2 > Structure Diagram LCD interchangeable module kit Keyboard interchangeable module kit Installation Slides... - Page 6 Sid e View 1mm = 0.03937 inch 58 0 Top View Product Dimension Packing Dimension Model (W x D x H) (W x D x H) Weight MKD6017D 17.3 x 22.84 x 1.75" 23.2 x 32.4 x 5.5” 35lbs MKD6019D...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications MKD6017D MK D6019D Panel Manufactur er Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 11 Physical Product ( W x D x H ) 17.3 x 22.84 x 1.75 inch Specification Packing ( W x D x H ) 23.2 x 32.4 x 5.5 inch Weight 35lbs Applicable VGA Input PC Signal 1280 x 1024 x 60 / 75Hz Format 1280 x 960 x 60Hz 1280 x 760 x 60 / 75Hz...
-
Page 12: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 14 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 15 < Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V...
