Glacier bay KHWHT30D Use And Care Manual

TOOLS REQUIRED
Claw hammer Safety goggles
Power drill Measuring tape Wall hardware Keyhole saw
Installation
1

PREPARING FOR INSTALLATION

NOTE: Before installation, make
sure all parts are present. Compare
parts with the Hardware Included list.
If any part is missing or damaged, do
not attempt to install the product.
□ Determine the desired mounting location,
and mark the wall where the unit will be
installed.
NOTE: For secure installation, the
unit must be mounted to at least one
wall stud.
4

INSTALLING THE CABINET

□ For wall stud installation, insert #12 x 3 in. screws with
washers into the stud locations (not included).
□ For drywall installation, drill holes at the appropriate
locations and insert toggle bolts with washers (not included).
□ For concrete wall installation, drill 1/4 in. holes at the
appropriate locations and insert #12 wall anchors, followed
by #12 x 3 in. screws (not included).
5

INSTALLING THE HARDWARE

□ Attach the handles (AA) and the knobs (BB) to the door
the top drawer on the vanity with short screws (CC) and
to the two lower drawers on the vanity with long screws
(DD).
6

REMOVING THE DRAWER

□ Press release levers in opposite directions while pulling drawer out of the vanity.
Phillips
Caulk/sealant
Screwdriver
2
□ Locate and mark plumbing on the back panel.
□ Drill a pilot hole through the back panel.
□ Use a keyhole saw to cut an opening for the
Item #
Item #
Item #
Item #
Item #
Item #
Use and Care Guide
HARDWARE INCLUDED
AA - Handle
x 4
Level
CUTTING THE OPENING FOR
PLUMBING FIXTURES
NOTE: This step applies to vanity
cabinets with full back panels only.
plumbing fixtures.
KHG30D
KHG36D
1002 835 295 Model #
1002 835 317 Model #
1002 835 320 Model #
1002 835 323 Model #
1002 814 804 Model # KHDCOG30DY
1002 814 817 Model # KHDCOG36DY

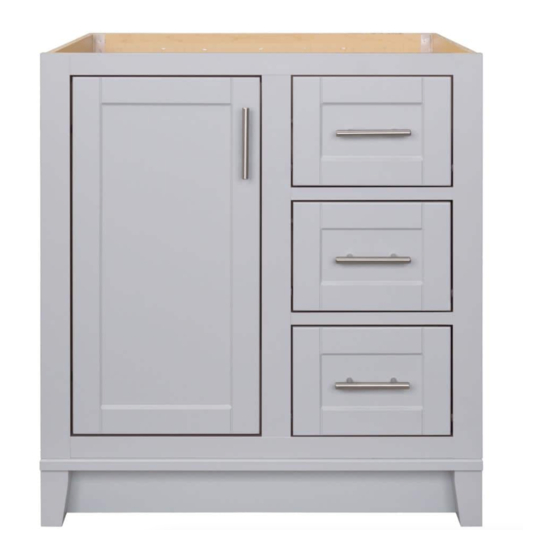

Vanity Combo
BB - Long CC - Medium
Screw Screw
x 4 x 2
3
POSITIONING THE
CABINET
□ Move the cabinet into
place, and use wood
shims to level the
cabinet against the wall.
CC
AA
Press
upward
Please contact 1-888-774-8062 for further assistance.
KHWHT30D
KHWHT36D
KHDOV30D
KHDOV36D
DD - Short
Screw
x 2
DD
BB
BB
Press
downward
HOMEDEPOT.COM/GLACIERBAY
