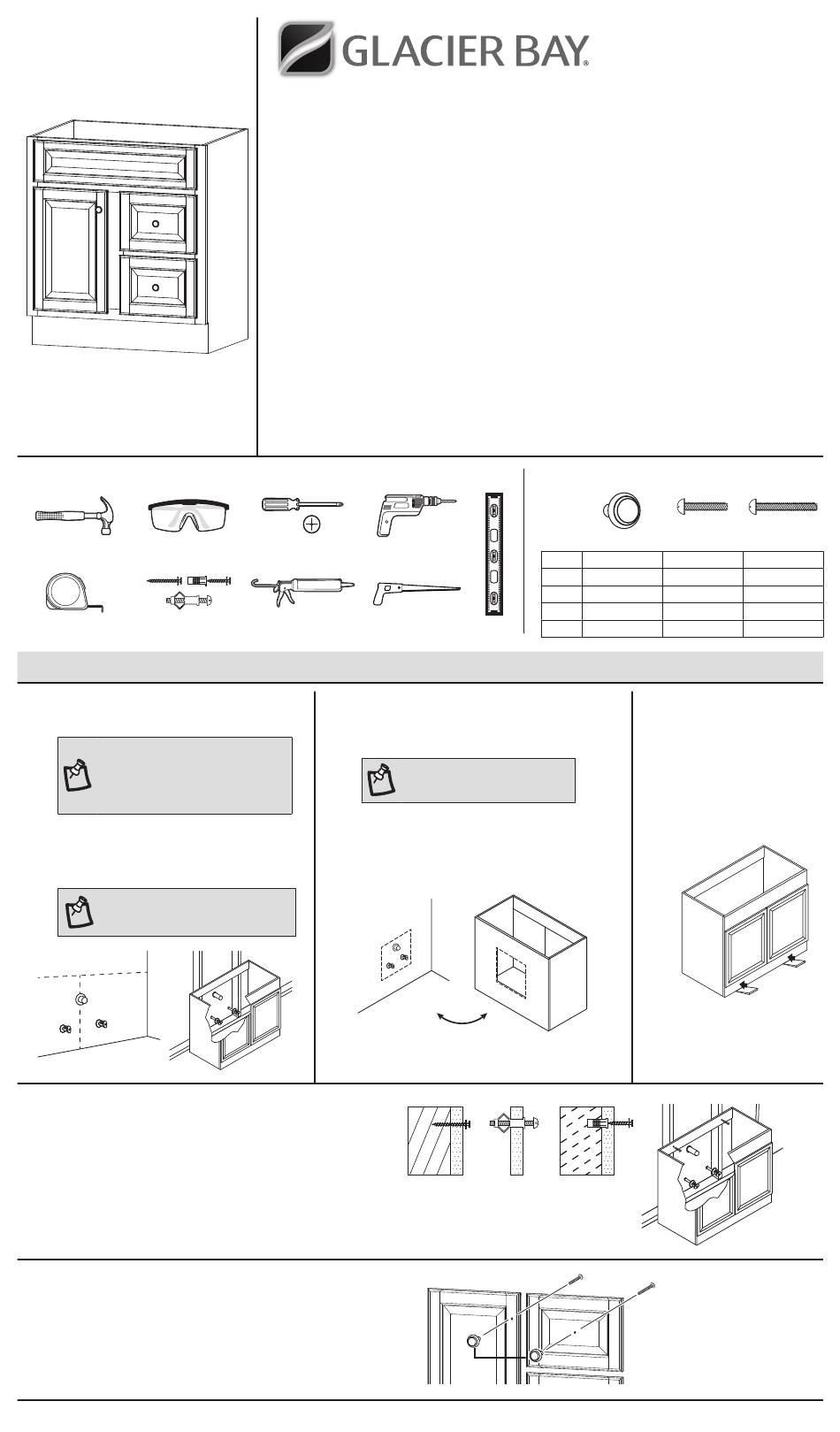

Glacier bay HWH24D Use And Care Manual

TOOLS REQUIRED
Claw hammer Safety goggles
Measuring tape Wall hardware
Installation
1
PREPARING FOR INSTALLATION
NOTE: Before installation, make sure
all parts are present. Compare parts
with the Hardware Included list. If any
part is missing or damaged, do not
attempt to install the product.
□ Determine the desired mounting location,
and mark the wall where the unit will be
installed.
NOTE: For secure installation, the
unit must be mounted to at least one
wall stud.
4
INSTALLING THE CABINET
□ For wall stud installation, insert #12 x 3 in. screws with
washers into the stud locations (not included).
□ For drywall installation, drill holes at the appropriate
locations and insert toggle bolts with washers (not included).
□ For concrete wall installation, drill 1/4 in. holes at the
appropriate locations and insert #12 wall anchors, followed
by #12 x 3 in. screws (not included).
5
INSTALLING THE HARDWARE
□ Attach the knobs (AA) to the door on the vanity with
short screws (BB) and to the drawers on the vanity with
long screws (CC).
Phillips
screwdriver Power drill
Caulk/sealant Keyhole saw
2
CUTTING THE OPENING FOR
PLUMBING FIXTURES
NOTE: This step applies to vanity
cabinets with full back panels only.
□ Locate and mark plumbing on the back panel.
□ Drill a pilot hole through the back panel.
□ Use a keyhole saw to cut an opening for the
plumbing fixtures.
Model #HWH24D
Model #HWH30D
Model #HWH36D
Model #HWH48D
Model #HWH60D
Model #HNHK30D
Model #HNHK36D
Model #HNHK48D
Model #HOA30D
Model #HOA36D
Model #HOA48D
Model #HDV30D
Model #HDV36D
Model #HDV48D
Model #HDV60D
Use and Care Guide
HARDWARE INCLUDED
AA - Knob
24" x 3
30" x 3
36" x 3
48" x 5
Level
60" x 6
BB
AA
Please contact 1-888-774-8062 for further assistance.
Item #723 562
Item #877 517
Item #877 550
Item #877 616
Item #877 682
Item #722 014
Item #722 588
Item #1002 824 478
Item #285 504
Item #285 570
Item #285 603
Item #1009 538 709
Item #1009 538 724
Item #1009 538 700
Item #1009 538 718

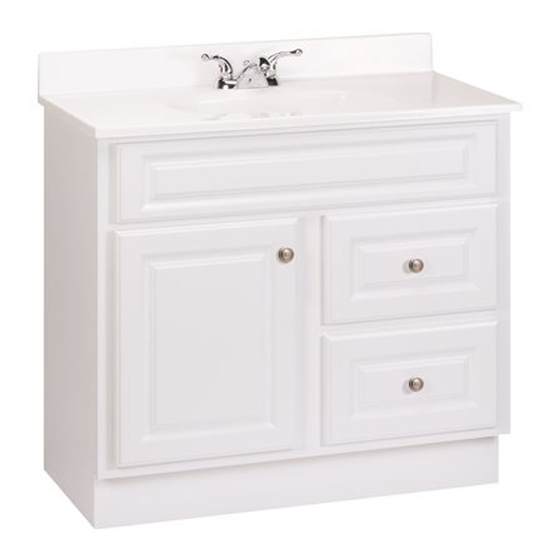

Vanity Combo
BB - Short CC - Long
Screw Screw
x 1 x 2
x 1 x 2
x 1 x 2
x 1 x 4
x 2 x 4
3
POSITIONING THE
CABINET
□ Move the cabinet into
place, and use wood
shims to level the
cabinet against the wall.
CC
