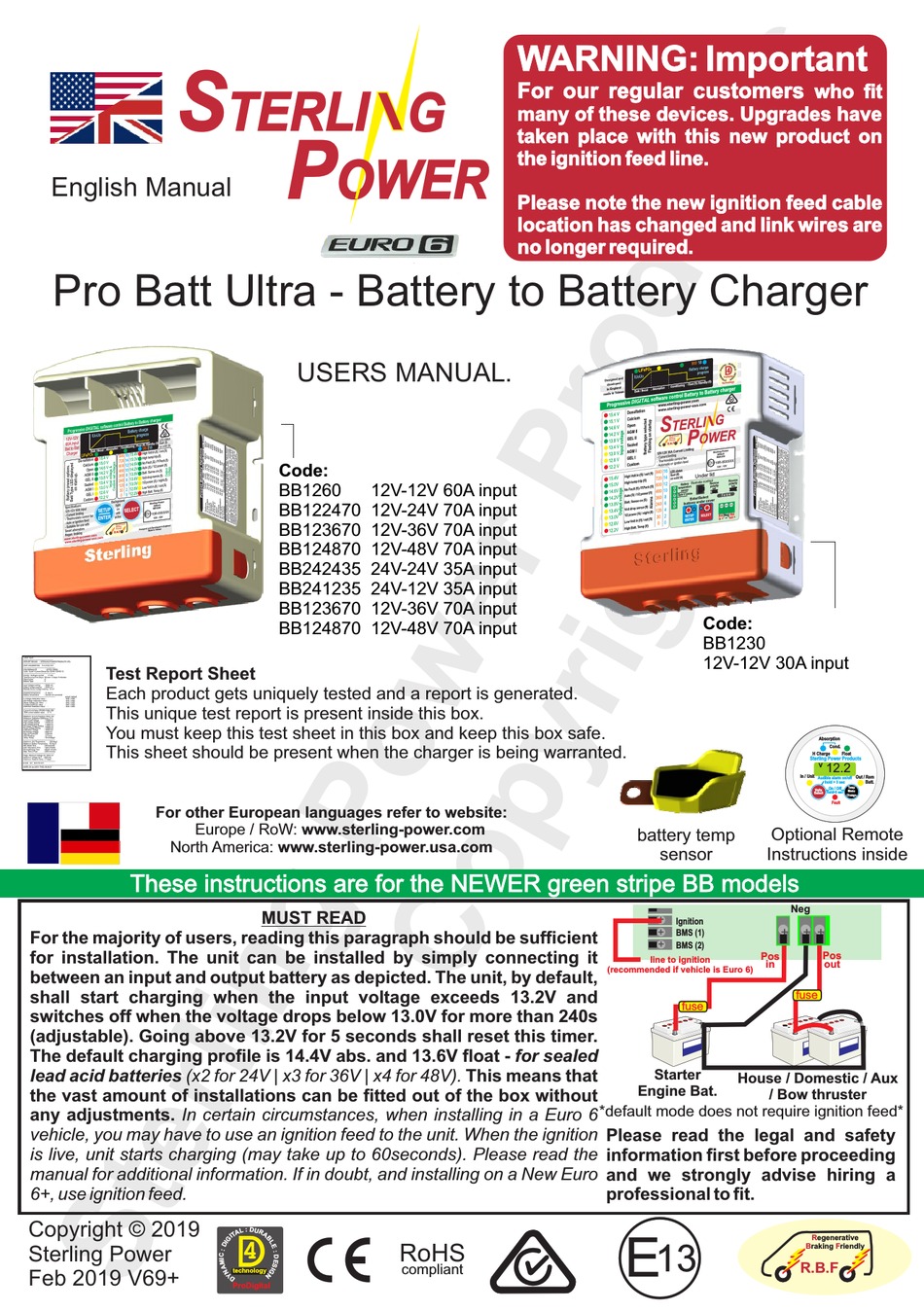

S
English Manual

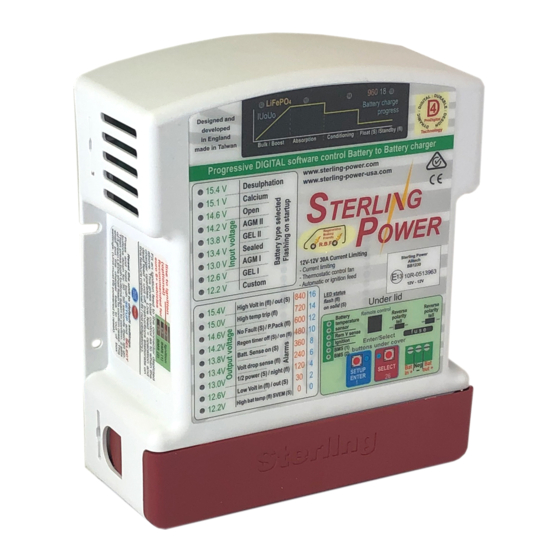

Pro Batt Ultra - Battery to Battery Charger
Test Report Sheet
Each product gets uniquely tested and a report is generated.
This unique test report is present inside this box.
You must keep this test sheet in this box and keep this box safe.
This sheet should be present when the charger is being warranted.
For other European languages refer to website:
Europe / RoW: www.sterling-power.com
North America: www.sterling-power.usa.com
These instructions are for the NEWER green stripe BB models
For the majority of users, reading this paragraph should be sufficient
for installation. The unit can be installed by simply connecting it
between an input and output battery as depicted. The unit, by default,
shall start charging when the input voltage exceeds 13.2V and
switches off when the voltage drops below 13.0V for more than 240s
(adjustable). Going above 13.2V for 5 seconds shall reset this timer.
The default charging profile is 14.4V abs. and 13.6V float - for sealed
lead acid batteries (x2 for 24V | x3 for 36V | x4 for 48V). This means that
the vast amount of installations can be fitted out of the box without
any adjustments. In certain circumstances, when installing in a Euro 6
vehicle, you may have to use an ignition feed to the unit. When the ignition
is live, unit starts charging (may take up to 60seconds). Please read the
manual for additional information. If in doubt, and installing on a New Euro
6+, use ignition feed.
Copyright © 2019
Sterling Power
Feb 2019 V69+
TERLI G
P
OWER
USERS MANUAL.
Code:
BB1260
12V-12V 60A input
BB122470 12V-24V 70A input
BB123670 12V-36V 70A input
BB124870 12V-48V 70A input
BB242435 24V-24V 35A input
BB241235 24V-12V 35A input
BB123670 12V-36V 70A input
BB124870 12V-48V 70A input
MUST READ
4
RoHS
technology
ProDigital
WARNING: Important
For our regular customers
many of these devices. Upgrades have
taken place with this new product on
the ignition feed line.
Please note the new ignition feed cable
location has changed and link wires are
no longer required.
compliant
Code:
BB1230
12V-12V 30A input
Optional Remote
battery temp
sensor
Instructions inside
Ignition
BMS (1)
BMS (2)
Pos
line to ignition
in
(recommended if vehicle is Euro 6)
fuse
Starter
House / Domestic / Aux
Engine Bat.
/ Bow thruster
*default mode does not require ignition feed*
Please read the legal and safety
information first before proceeding
and we strongly advise hiring a
professional to fit.
who fit
Absorption
Cond.
H Charge
Float
Sterling Power Products
V
12.2
In / Unit
Out / Rem
Audible alarm on/off
hold > 3 sec
Batt.
Temp
On / Off
Volts
Menu
hold>3 sec
Select
Change
Fault
Neg
+
+ +
Pos
out
fuse
Regenerative
B
raking riendly
F
R.B.F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sterling Power Pro Batt Ultra BB1230
Summary of Contents for Sterling Power Pro Batt Ultra BB1230
- Page 1 You must keep this test sheet in this box and keep this box safe. Absorption Cond. This sheet should be present when the charger is being warranted. H Charge Float Sterling Power Products 12.2 In / Unit Out / Rem Audible alarm on/off hold > 3 sec Batt.
- Page 2 TERLI G OWER Contents Page New features Legal and Safety Information Page 3 Force Options - Device options Page 10 How to use the instructions Factory Reset Copyright and Plagiarism Force operation w ithout output voltage Maintenance and Repair Force Float mode Saf ety and Precautions Force Unit on / of f Display annotations...
- Page 3 EXPLOSION this electronic device. Do not lose these instructions - keep them safe. The most up to date instructions can be found on the Sterling Power website. Please refer to Example - WARNING. Never use the device in Ÿ the latest instruction manual before contacting Sterling.
- Page 4 Front Panel Regen timer off (S) / on (fl) High bat temp (fl) SVEM (S) Battery Remote control Reverse Reverse temperature Regen timer off (S) / on (fl) polarity polarity sensor tell tell Rem V sense Ignition Enter/Select f u s e BMS (1) buttons under cover BMS (2)
- Page 5 Front Panel II BB1260 BB242435 Background Specification: Battery Designed and BB241235 Remote control 12V-12V 60A light developed SETUP Current limiting temperature in England SELECT Thermostatic control fan unit Made in Taiwan Reverse Reverse ENTER sensor Auto or ignition feed active polarity polarity tell...
- Page 7 Guide to buttons software V69+ If BB is in sleep mode, either buttons can be pressed to wake the BB up. Press Length (s) Action Forces unit into float mode. Press again to take out of float mode. 5-10 Turns unit on / off toggle. 10-20 Battery type select - use SETUP / SELECT to toggle between types.
- Page 8 Important NEGATIVES Basic Operation / Installation should all be common. Main Power DON'T USE CHASSIS Fit in a cool dry well ventilated space. Should be POOR CONDUCTORS Terminals installed by a competent person, conforming RESULT IN WORSE with the laws of the country. Connect positive CHARGE RATE cables (in red) to the terminal block, as shown fuse...
- Page 9 First Time Use (when wiring up) After unit has gone through its startup sequence the On first start up all LEDs will light up. A beep should LEDs displayed should be the input voltage on the left sound. The fan shall then start running for around 5 column and the output voltage on the right column.
- Page 10 Force Options Force unit to operate without output battery connected Regen timer adjustment: default 240 seconds ( i.e. as a power pack / live output ). (Regen low voltage timer time). This mode shall allow the unit to operate without needing a The default auto Regen time is 240 sec.
- Page 11 TERLI G OWER Custom Settings CUSTOM BATTERY TYPE SETTING (for expert Operation use only - not required for general operation) Press and hold both buttons for 10-20 seconds. All Left LEDs shall flash Before proceeding with this, please read and Press the setup/select button to move LED down to understand all instructions as it is quite complex and custom.
- Page 12 Charging profile Information displayed on top 4 LEDs on main unit Backlash voltage. If Fast charge High absorption Float / Power pack If voltage drops Lower conditioning charger power exceeded constant current charge rate constant due to heavy mode, constant and battery discharge charge rate constant load in excess...
- Page 13 Remote control: Absorption cut hole diameter Cond. 54mm H Charge Float Sterling Power Products Remote Control 12.2 In / Unit Out / Rem Audible alarm on/off Batt. hold > 3 sec 1) Volts select button. 6) Charge complete on float.
- Page 14 Fault Finding | Troubleshooting Is your output voltage slightly higher or lower than Firstly, ensure the Pro Batt Ultra (BB) is wired up as per expected - even with no loads / chargers on? page 7. Ensure negatives are common and the BB Check if you have the temperature sensor connected.
- Page 15 Sterling Power. We cannot accept warranty claims from any other Sterling Power distributor. Purchase or other acceptance of the product shall be on the condition and agreement that Sterling Power USA LLC and Sterling Power LTD shall not be liable for incidental or consequential damages of any kind. Some states may not allow the exclusion or limitation of consequential damages, so, the above limitations may not apply to you.
