Sterling Power Portable Battery Charger B124 Instruction Manual

INSTRUCTION MANUAL

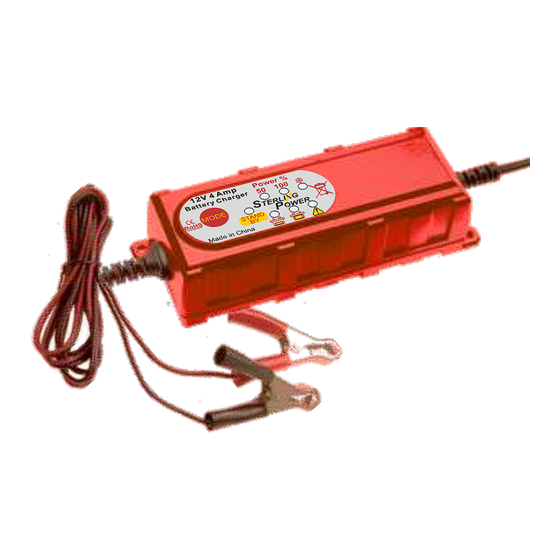

MODEL STERLING POWER 12V LED BATTERY
CHARGER
INPUT: 230VAC 50Hz OUTPUT: 12VDC 2A / 4A

WARNING:

This charger is designed for indoor use only. Never expose this
product to rain or wet conditions.
Make sure you are using correct AC line voltage and all plugs
and sockets are in good order.
AC line voltage and all plugs and sockets are in good order.
Do not attempt to use the charger if it has been dropped or
damaged.
Never attempt to charge a damaged battery, frozen battery or
non-rechargeable battery.
Do not use the charger in a closed area or poorly-ventilated area.
The battery charger should be away from any heat source or
ignitable air, which would possibly cause explosion.
Don't replace the cord and plug.
If the battery charger does not work properly, don't attempt a to
repair it or open the case as there is high ( 230V ) internal
voltages and this may kill.
Keep the battery charger away from children and animals.
Disconnect the battery charger after turning off.
Before charging, check the battery type and maximum charging
Your 100% satisfaction is our goal:
We know that every customer is unique. If you have a problem, a question
or comment please do not hesitate to contact us, even if the warranty period
is over.
Product warranties:
Each product manufactured by Sterling comes with a warranty of at least 2
years. This is counted from the date of purchase. Each product is
guaranteed against defects in materials or workmanship. We shall choose
to replace or repair the defective product during the warranty period.
The following provisions apply:
- Proof of purchase must be provided, otherwise the warranty period begins
on the date of manufacture of the object.
- Our warranty covers defects in materials and manufacturing. Damage
caused by neglect, abuse, accident, alteration, misuse, are not covered by
our warranty.
RoHS RoHS
compliant compliant
12v 4 amp d/c
Guarantee
Sterling Power Products Ltd.
www.sterling-power.com
www.sterling-power-usa.com
English
French
Deutsch
voltage allowed. Or, get this information from battery supplier.
Use goggles while connecting or disconnecting the charger.
Do not operate this product in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. This could
result in serious injury.
Don't insert any metal items into the ventilator of the battery
charger.
To reduce risk of damaging the Battery, avoid dropping any
metal tools onto the battery.
Don't put the battery charger too close to the battery during
charging.
Read the ENTIRE IMPORTANT SAFETY INFORMATION section
at the beginning of this manual before setup or use of this
product.
Warning do not attempt to charge non rechargeable batteries

SPECIFICATIONS PARAMETERS

Simple specification :
Input voltage: 220---240VAC 50/60HZ
Input current: 0.4A RMS max.
Back drain current: <5 mA (No AC input)
Cut off voltage: 14.4V or 14.6V (+/-0.25V)
Charging current: 4A or 2A (+/-10%)
Ripple: 150mV max.
Battery type: 12V lead acid battery, Gel, AGM.10Ah----140Ah
Against dust and proof water grade: IP65
Audible noise: < 50dB (test from 500mm distance)
- The guarantee does not apply if the damage resulted from improper
repairs.
- The consumer is liable for shipping the product.
- Sterling Power shall return the product at the customer's own expense.
If your product was damaged in transit, contact us quickly, we can solve
the problem.
This only applies for the transport organized by our company. It is best not
to throw away the original packaging.
All returns must be accompanied by a proof of purchase. If you don 't have
the evidence ask the seller from whom you purchased the equipment to
provide you with a new one.
To make a claim under warranty, check the phone number on the internet.
We will make best efforts to repair or replace the product, if defective,
according to the criteria of guarantee.
4
