Technibel Climatisation GRV180R5TA Technical Data & Service Manual
Split system air conditioner
Hide thumbs
Also See for GRV180R5TA:
- Installation instructions manual (43 pages) ,
- Installation instructions manual (42 pages)
Subscribe to Our Youtube Channel
Related Manuals for Technibel Climatisation GRV180R5TA
Summary of Contents for Technibel Climatisation GRV180R5TA

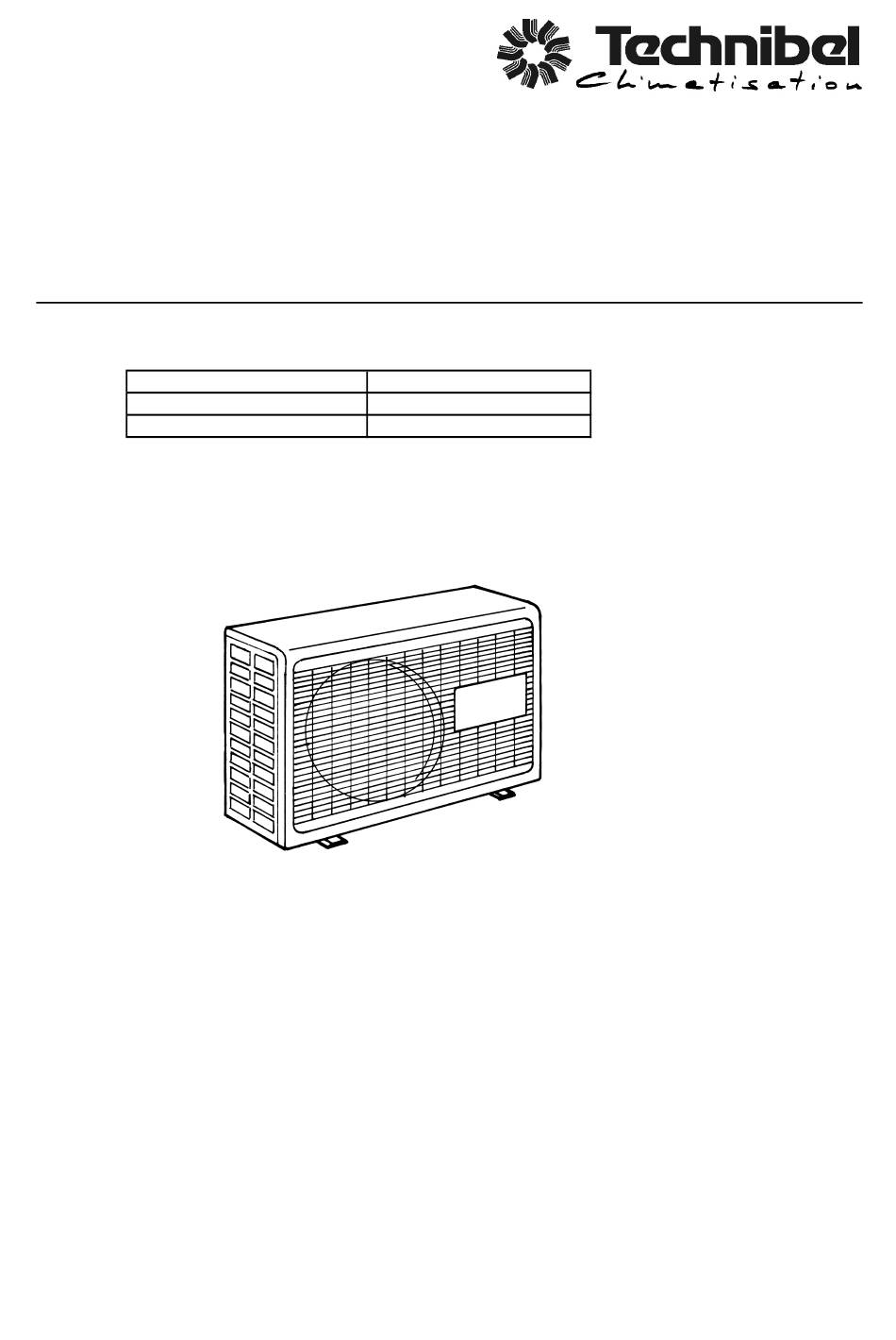

- Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: GRV180R5TA- GRV220R5TA- SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. GRV180R5TA- 387107064 GRV220R5TA- 387107065 0.8180.265.0 05/2002...
- Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 5-3 Heating Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum -8°C D.B. / -9°C W.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications GRV180R5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * MCAV180R5VA- Capacity 4,80 6,60 16381 22524 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264... - Page 6 GRV220R5TA- 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * MCAV220R5VA- 5,85 7,00 Capacity BTU/h 19964 23888 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating Available voltage range 198 ~ 264 10,6 11,2 Running amperes...
-
Page 7: Major Component Specifications
2-2 Major Component Specifications Outdoor Unit: GRV180R5TA- Compressor Rotary (Hermetic) Type 80807045C C-2RN170H5W Compressor model 1700 Nominal output FV68S…800 Compressor oil…Amount C-R: 1,353 Coil resistance (Ambient temp. 25°C) Ω C-S: 3,422 Internal protector External protector Safety devices Type Overload relay... - Page 8 Outdoor Unit: GRV220R5TA- Compressor Rotary (Hermetic) Type 80242335 C-RN190H5B Compressor model 1900 Nominal output FV68S…2100 Compressor oil…Amount C-R: 0,921 Coil resistance (Ambient temp. 25°C) Ω C-S: 2,843 Ω Internal protector External protector Safety devices Type Overload relay MRA38075-3158 / MRA8967-9200 Automatic opening 160 ±...
-
Page 9: Other Component Specifications
2-3 Other Component Specifications GRV180R5TA- STF-01AJ504D1 (Coil) STF-0201Z (Valve) 4-way Valve (20S) AC 220/240 V, 50 Hz, 6W Coil rating 1425 ± 7% Coil resistance Ω (at 20°C) GRV220R5TA- STF-01AJ504D1 (Coil) STF-0201Z (Valve) 4-way Valve (20S) AC 220/240 V, 50 Hz, 6W Coil rating 1425 ±... -
Page 10: Dimensional Data
3. DIMENSIONAL DATA GRV180R5TA- Outdoor Unit: Air intake 4 – ø12 holes Air discharge Wide tube service valve ø12.7 (1/2") Narrow tube service valve ø6.35 (1/4") Unit : mm... - Page 11 GRV220R5TA- Outdoor Unit: Air intake Air discharge Wide tube service valve ø15.88 (5/8") Narrow tube service valve ø6.35 (1/4") 6 – ø3.1 holes Check port ø6.35 (1/4") Unit : mm...
-
Page 12: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: GRV180R5TA- Indoor Unit: Outdoor Unit: GRV220R5TA-... -
Page 13: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts GRV180R5TA- n Cooling Characteristics n Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) Outdoor inlet D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 2,80 Indoor inlet air Indoor inlet air D.B. - Page 14 GRV220R5TA- n Cooling Characteristics n Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) Outdoor inlet D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) 0,60 2,80 Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) 2,60 0,50 2,40...
-
Page 15: Cooling Capacity
5-2 Cooling Capacity GRV180R5TA- OUTDOOR UNIT: MCAV180R5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 4,80 kW moisture removal 2,3 l/h COMP. POWER INPUT 2,044 kW max comp input 2,494 kW AIR FLOW RATE 760 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. - Page 16 GRV220R5TA- OUTDOOR UNIT: MCAV220R5VA- INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,85 kW moisture removal 3,3 l/h COMP. POWER INPUT 2,205 kW max comp input 2,755 kW AIR FLOW RATE 830 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
-
Page 17: Heating Capacity
5-3 Heating Capacity –5 –8 Outdoor temperature (°C D.B.) NOTE … Point of Rating condition Black dot in the chart indicate the following rating condition. Indoor : 20°C D.B. Outdoor : 7°C D.B. / 6°C W.B. 2) Above characteristics indicate instantaneous operation, which does not take into consideration defrost operation. -
Page 18: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: GRV180R5TA- COOLING Indoor Unit Complete Unit Outdoor unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,40 9,23 10,0 Power input 0,070 0,086 2,044... - Page 19 OUTDOOR UNIT: GRV220R5TA- COOLING Indoor Unit Complete Unit Outdoor unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,39 0,55 10,6 Power input 0,075 0,120 2,205 2,400 Full load conditions Running Amps. 0,39 0,55 12,1 13,0...
-
Page 20: Electric Wiring Diagram
GRV180R5TA- 6-2 Electric Wiring Diagram OUTDOOR UNIT: GRV220R5TA- OUTDOOR UNIT:... -
Page 21: System Wiring Diagram
6-3 System Wiring Diagram... - Page 22 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
