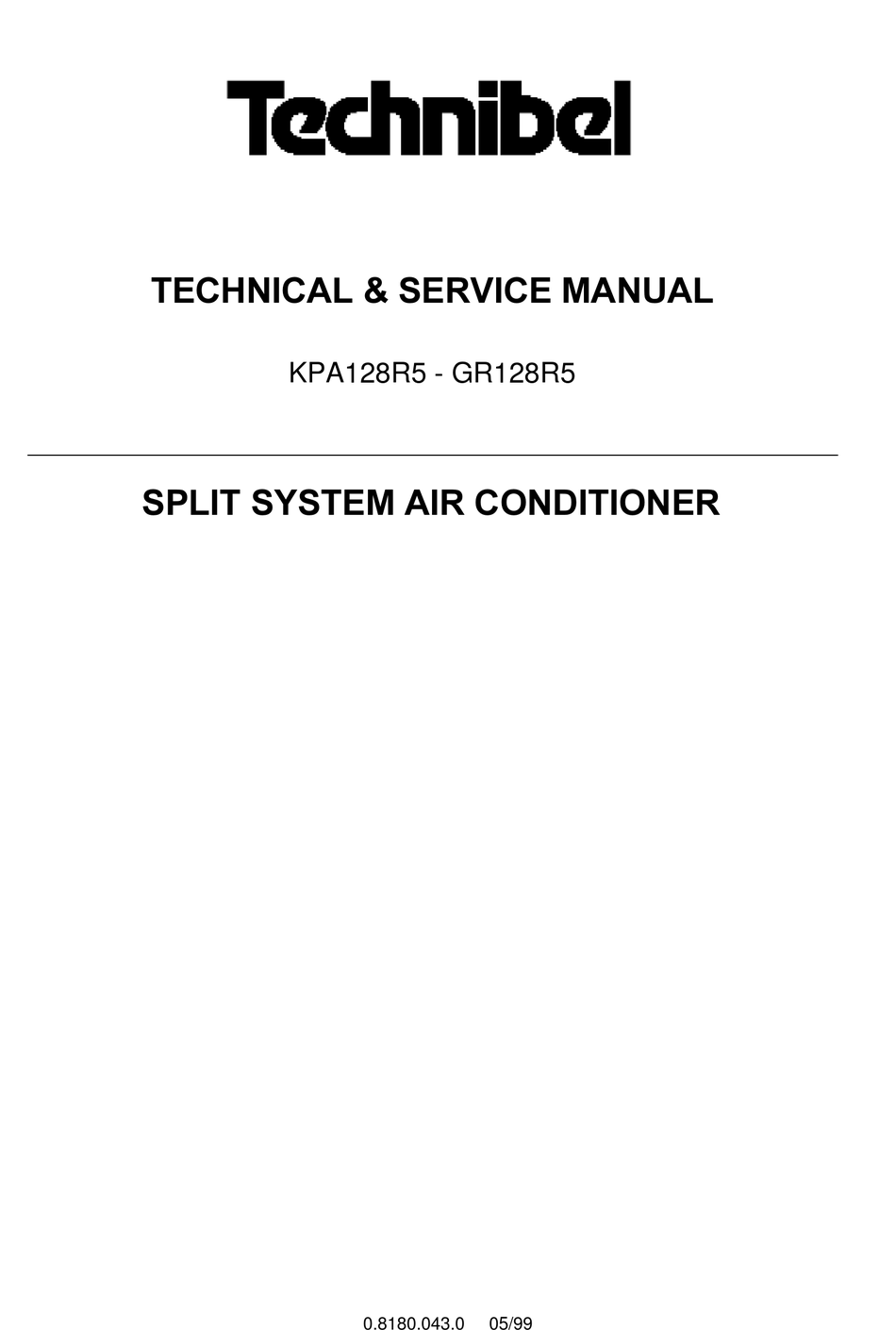

- Page 1 7(&+1,&$/ 6(59,&( 0$18$/ KPA128R5 - GR128R5 63/,7 6<67(0 $,5 &21',7,21(5 0.8180.043.0 05/99...
- Page 2 Important! When Transporting Be careful when picking up and moving the indoor and Please Read Before Starting outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp This air conditioning system meets strict safety and edges or thin aluminum fins on the air conditioner can operating standards.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE ..........................1 2. SPECIFICATIONS 2-1. Unit Specifications .......................... 2 2-2. Major Component Specifications....................3 2-3. Other Component Specifications....................5 3. DIMENSIONAL DATA..........................6 4. REFRIGERANT FLOW DIAGRAM ......................8 5. PERFORMANCE DATA 5-1. Performance charts ........................9 5-2. -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum 16°C D.B. –... -
Page 5: Specifications
2. SPECIFICATIONS 2-1. Unit Specifications Indoor Unit KPA128R5 Outdoor Unit GR128R5 Power Source 220–240V ~ 50Hz Voltage rating 220/230/240 V Performance Cooling Heating Capacity 3.30 3.35 3.35 3.90 3.90 4.00 BTU/h 11,300 / 11,400 / 11,400 13,300 / 13,300 / 13,600... -
Page 6: Major Component Specifications
2-2. Major Component Specifications 2-2-1. Indoor Unit Indoor Unit KPA128R5 Controller PCB Part No. POW-K126GHS-(C) Controls Microprocessor Control circuit fuse 250 V 3.15 A Remote Control Unit RCS-6HPS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 2 ... ø130 / L180 Fan motor model ... - Page 7 2-2-2. Outdoor Unit Outdoor Unit GR128R5 Controller PCB POW-C96GH Compressor Type Rotary (Hermetic) Compressor model C-R110H5H 80619445-S Nominal output 1,100 Compressor oil ... Amount SUNISO 4GSD-T ... 550 Ω Coil resistance (Ambient temp. 25°C) C–R : 1.962 C–S : 5.38 Safety devices Type External(OLR A)
-
Page 8: Other Component Specifications
2-3. Other Component Specifications Indoor Unit KPA128R5 Thermistor (Room sensor TH2) KTEC-35-S6 Resistance kΩ 10°C 10.0 ± 4% 30°C 4.0 ± 4% 15°C 7.9 ± 4% 35°C 3.3 ± 4% 20°C 6.3 ± 4% 40°C 2.7 ± 4% 25°C 5.0 ± 4% 50°C 1.8 ±... -
Page 9: Dimensional Data
3. DIMENSIONAL DATA Indoor Unit KPA128R5 Center of tubing hole Remote control unit ø75 (4 places) Wide tube ø12.7 (1/2") Narrow tube ø6.35 (1/4") Drain hose ø26 18.5 Unit : mm... - Page 10 Outdoor Unit GR128R5 Air intake Air discharge Wide tube service valve 4 – ø12 holes ø12.7 (1/2") Narrow tube service valve 4 – ø3.3 holes ø6.35 (1/4") Unit : mm...
-
Page 11: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit KPA128R5 Outdoor Unit GR128R5 Indoor unit Outdoor unit Accumulator Wide tube service Wide tube valve 4-way Muffler valve O.D. ø12.7 mm (1/2 ") Narrow tube service Capillary tube Capillary tube Narrow tube valve Cooling cycle Strainer O.D. -
Page 12: Performance Data
5. PERFORMANCE DATA 5-1. Performance charts Indoor Unit KPA128R5 Outdoor Unit GR128R5 ■ Cooling Characteristics ■ Heating Characteristics Indoor inlet air Indoor inlet air D.B. temp. (°C) D.B. temp. (°C) –5 Outdoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) -
Page 13: Air Throw Distance Chart
5-2. Air Throw Distance Chart Indoor Unit KPA128R5 Floor mounted Cooling Room air temp. : 27°C Fan speed High Axis air verocity Flap angle 60° 45° Horizontal distance (m) Heating Room air temp. : 20°C Fan speed High Axis air verocity Flap angle 0°... - Page 14 Indoor Unit KPA128R5 Ceiling mounted Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) Axis air verocity Flap angle 30° 45° Heating Room air temp. : 20°C Fan speed High Horizontal distance (m) Axis air verocity Flap angle 60°...
-
Page 15: Cooling Capacity
5-3. Cooling Capacity Indoor Unit KPA128R5 Outdoor Unit GR128R5 240V Single Phase 50Hz RATING CAPACITY 3.35 kW AIR FLOW RATE 700 m EVAPORATOR CONDENSER ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B. D.B. 3.38 3.23 3.08 2.93 2.76 2.54 0.90 0.97... -
Page 16: Heating Capacity
5-4. Heating Capacity –8 –5 Outdoor temperature (°C D.B.) NOTE … Point of Rating condition Black dot in the chart indicate the following rating condition. Indoor : 20°C D.B. Outdoor : 7°C D.B. / 6°C W.B. 2) Above characteristics indicate instantaneous operation, which does not take into account defrost operation. -
Page 17: Electrical Data
6. ELECTRICAL DATA 6-1. Electrical Characteristics Indoor Unit KPA128R5 Outdoor Unit GR128R5 COOLING Indoor Unit Outdoor Unit Complete Unit Fan Motor Fan Motor Compressor Performance at 220 – 240V ~ 50Hz Rating Conditions Running Amps. 0.28 / 0.29 0.30 / 0.32 Power Input kW 0.060 / 0.070... -
Page 18: Electric Wiring Diagram
6-2. Electric Wiring Diagrams To avoid electrical shock hazard, be sure to Indoor Unit KPA128R5 disconnect power before checking, servicing WARNING and/or cleaning any electrical parts. - Page 19 To avoid electrical shock hazard, be sure to Outdoor Unit GR128R5 disconnect power before checking, servicing WARNING and/or cleaning any electrical parts.
-
Page 20: Function
7. FUNCTION 7-1. Room Temperature Control Cooling Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit. - Page 21 Heating Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit.
-
Page 22: Dry Operation
7-2. Dry Operation (Dehumidification) Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the cycle of turning ON and OFF automatically as shown in the chart below according to the room temperature. -
Page 23: Freeze Prevention
7-4. Freeze Prevention (Cooling) This function prevents freezing of the indoor heat exchange coil. When the compressor has been running for 10 minutes or more and the temperature of the indoor heat exchange coil falls below –1°C, the control circuit stops the compressor for at least 6 minutes. The compressor does not start again until the temperature rises above 8°C or 6 minutes has elapsed. -
Page 24: Overload Prevention
7-5. Overload Prevention (Heating) This function prevents overheating of the indoor heat exchange coil. When the temperature of the indoor heat exchange coil rises above 59°C, and if the indoor fan is L (low speed), then the fan speed changes from L (low speed) to M (medium speed). When the temperature of the indoor heat exchange coil rises above 61°C, the outdoor fan stops. -
Page 25: Cold Draft Prevention
7-6. Cold Draft Prevention (Heating) This function controls indoor fan speed so a strong draft of cold air will not blow out before the indoor heat exchange coil have sufficiently warmed up. STANDBY lamp on front of the indoor unit lights up when this function is working. when 10 minutes has elapsed,the fan speed is automatically switched to set speed regardless of indoor heat exchange coil temperature. -
Page 26: Defrosting Operation
7-7. Defrosting Operation (Heating) Defrosting Flowchart Compressor ON Release of overload prevention (Outdoor fan operates.) Overload prevention works. Does outdoor fan stop? Outdoor fan is either operated Indoor heat exchanger coil Integrated operating time of Integrated operating time of or stopped for more than 10 temperature drops 0.8°C per compressor is more than compressor is more than 1.5... - Page 27 Defrosting Mode Timing Chart Release of defrosting Start of defrosting 32 seconds 11 minutes 32 seconds Compressor Outdoor fan 2 seconds 2 seconds Solenoid coil (4 – way valve) Indoor fan Set speed Set speed Standby lamp Indoor heat exch. coil temp.
-
Page 28: Troubleshooting
8. TROUBLESHOOTING 8-1. Check before and after troubleshooting WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 8-1-1. Check power supply wiring. Check that power supply wires are correctly connected to terminals L and N on the terminal plate in the indoor unit. -
Page 29: Air Conditioner Does Not Operate
8-2. Air conditioner does not operate. 8-2-1. Circuit breaker trips (or fuse blows). A. When the circuit breaker is set to ON, it is tripped soon. (Resetting is not possible.) There is a possibility of ground fault. Check insulation resistance. If resistance value is 2MΩ... - Page 30 B. Circuit breaker trips in several minutes after turning the air conditioner on. There is a possibility of short circuit. • Check capacity of circuit breaker. Replace with suitable one (larger capacity). Capacity of circuit breaker is suitable. In case of Heating operation : Measure resistance of outdoor fan •...
- Page 31 C. Check remote control unit. • Try to run with another remote control unit. First remote control unit is defective. • Check for residue buildup on Clean transmitter. transmitter of remote control unit. • Check for residue buildup on remote control receiver on front of indoor Clean receiver.
- Page 32 8-2-3. Only outdoor unit does not run. A. Check setting temperature. COOL HEAT Is room temperature too low ? Is room temperature too high ? Try to lower setting temperature by Try to raise setting temperature by temperature setting button ( button).
-
Page 33: Some Part Of Air Conditioner Does Not Operate
8-3. Some part of air conditioner does not operate. 8-3-1. Only indoor fan does not run. • Check fan casing Remove foreign foreign matter on matter or repair. Fan cannot inside. be turned. • Check fan rotation. Turn fan gently once or twice by hand. - Page 34 8-3-4. Only compressor does not run. Overload relay is working. • Check compressor motor (Either OLR T or OLR A) capacitor. (C1) • Measure resistance of Temperature of compressor is abnormally high. compressor motor winding. Refrigerant gas shortage. Charge refrigerant gas (R22). •...
-
Page 35: Air Conditioner Operates, But Abnormalities Are Observed
8-4. Air conditioner operates, but abnormalities are observed. 8-4-1. Operation does not switch from HEAT to COOL (or COOL to HEAT). • Remote control unit may be defective. Receiver in lamp Ass'y may be defective. • Measure resistance of 4–way valve's winding. - Page 36 8-4-2. Poor cooling or heating. • Check position of remote control unit. Change position of remote • Cool or warm air from air conditioner control unit. reaches position directly. • Wide and narrow tubes between Insulate both wide and narrow indoor unit and outdoor unit are tubes separately and then insulated.
-
Page 37: If A Sensor Is Defective
8-5. If a sensor is defective. 8-5-1. Indoor coil temp. thermistor (TH1) is defective. • Operation lamp on front side of • Thermistor (TH1 ) is defective. indoor unit is flashing on and off. (*) (That is, sensor is SHORT.) •... -
Page 38: Checking Electrical Components
9. CHECKING ELECTRICAL COMPONENTS power plug 9-1. Measurement of Insulation (Local supply) Resistance Ground The insulation is in good condition if the resistance exceeds 2MΩ. probe Insulation 9-1-1. Power Supply Wires tester NOTE Clamp the grounding terminal of the power plug with a lead clip of the insulation resistance tester and The shape of the power plug may differ from measure the resistance by placing a probe on either of... -
Page 39: Checking Continuity Of Fuse On Pcb Ass'y
9-2. Checking Continuity of Fuse Fuse on PCB Ass'y Remove the PCB Ass’y from the electrical component box. Then pull out the fuse from the PCB Ass’y. (Fig. 5) PCB Ass’y Check for continuity using a multimeter as shown in Fig. -
Page 40: Disassembly Procedure For Indoor Unit
10. DISASSEMBLY PROCEDURE FOR INDOOR UNIT IMPORTANT! Please Read Before Starting Safety precautions for servicing the CEILING-MOUNTED indoor unit Before attempting to replace heavy and bulky parts such as the evaporator and fan motor, disconnect the indoor unit from the system and place it on the floor. Refer to the steps given below. When checking or servicing the air intake grille, side panels, or electrical component box, first check that power is completely disconnected. -
Page 41: Removing Side Panels
10-2. Removing Side Panels Hook (1) Remove the 3 screws attaching the left side panel. (Fig. 3) Slot (2) Note the position of the hook on the inside of the left side panel. To disengage the hook from the slot, Hook slide down the panel for removal. -
Page 42: Removing Flap Motor
10-4. Removing Flap Motor (1) Remove the 3 screws used to mount the top panel. Screw (Fig. 6) Top panel (2) While unlatching the 2 tabs inside the back of the top panel, lift the top panel diagonally in the direction of the arrow.(Fig. - Page 43 (3) Remove the 6 screws of the front panel and pull it toward you. (Fig. 9) (4) Remove the 2 screws used to mount the Screw evaporator. (Fig. 10) (5) Remove the rubber cap to pull the thermistor out of Front panel the evaporator.
-
Page 44: Removing Fan And Fan Motor
10-6. Removing Fan and Fan Motor (1) Unlatch the 2 hooks on each side to take off the front fan casing. (Fig. 12) Hook Front fan casing Hook Fig.12 (2) Remove the 2 screws attaching the rear fan casing and then pull the fan casing out. Rear fan casing Fig.13 (3) Insert a hex wrench in the fan boss and turn it... - Page 45 In order to carry on a constant improvement, our products can be modified without prior notice. Per garantire un costante miglioramento dei nostri prodotti, ci riserviamo di modificarli senza preavviso. Par souci d’amélioration constante, nos produits peuvent être modifiés sans préavis. Unsere Produkte werden laufend verbessert und können Vorankündigung abgeändert Werden.
