Technibel Climatisation GRF98L5TAA Technical Data & Service Manual

Outdoor unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

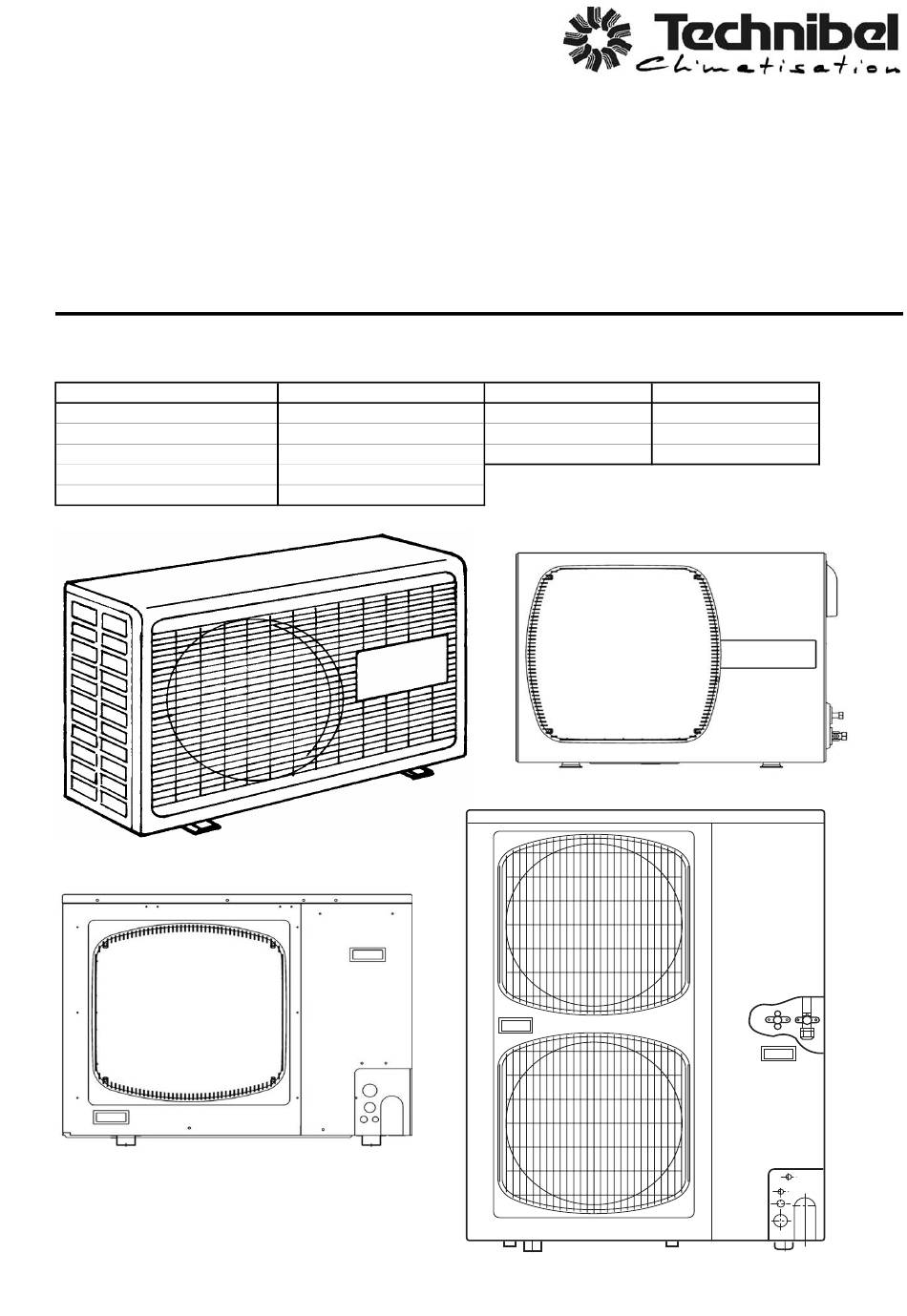

TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT:
Model No.
GRF98L5TAA
GRF128L5TAA
GRF188L5TAA
GRF188L7TAA
GRF228L7TAA
GRF98L5TAA
GRF128L5TAA GRF188L7TAA
SPLIT SYSTEM AIR CONDITIONER
Product Code No.
387007174
387007175
387007177
387007178
387007179
0.8180.556.0
GRF188L5TAA
GRF228L7TAA
Model No.
GRF258L7TAA
GRF368L7TAA
GRF488L7TAA
10/2008
GRF258L7TAA
GRF368L7TAA
GRF488L7TAA
Product Code No.
387007180
387007181
387007182

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRF98L5TAA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technibel Climatisation GRF98L5TAA

Summary of Contents for Technibel Climatisation GRF98L5TAA

  • Page 1 TECHNICAL DATA & SERVICE MANUAL GRF98L5TAA GRF188L5TAA GRF258L7TAA OUTDOOR UNIT: GRF128L5TAA GRF188L7TAA GRF368L7TAA GRF228L7TAA GRF488L7TAA SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. Model No. Product Code No. GRF98L5TAA 387007174 GRF258L7TAA 387007180 GRF128L5TAA 387007175 GRF368L7TAA 387007181 GRF188L5TAA 387007177 GRF488L7TAA...
  • Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.

  • Page 3: Table Of Contents

    Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram...

  • Page 4: Operating Range

    1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. -15°C D.B.

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 Unit Specifications GRF98L5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MRAF98C5T 2,70 Capacity 9214 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range...
  • Page 6 GRF128L5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MRAF128C5T 3,40 Capacity 11603 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 4,70 Running amperes 1050 Power input Power factor C.O.P.
  • Page 7 GRF188L5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Performance * MPAF188C5T 5,20 Capacity BTU/h 17746 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264 Available voltage range 7,10 Running amperes 1600 Power input Power factor C.O.P.
  • Page 8 GRF188L7TAA 380 - 415V 3N ~ 50Hz Power source 400V Voltage rating 230V ~ 50Hz Control Circuit Cooling Performance * MPAF188C5T 5,30 Capacity BTU/h 18087 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 342 ~ 418 Available voltage range 3,40 Running amperes 1650...
  • Page 9 GRF228L7TAA 380 - 415V 3N ~ 50Hz Power source 400V Voltage rating 230V ~ 50Hz Control Circuit Cooling Performance * MPAF228C5T 6,50 Capacity BTU/h 22182 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 342 ~ 418 Available voltage range 4,20 Running amperes 2080...
  • Page 10 GRF258L7TAA 380 - 415V 3N ~ 50Hz Power source 400V Voltage rating 230V ~ 50Hz Control Circuit Cooling Performance * CAF258C5T 7,80 Capacity 26618 BTU/h 1020 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 342 ~ 456 Available voltage range 5,10 Running amperes...
  • Page 11 GRF368L7TAA 380 - 415V 3N ~ 50Hz Power source 400V Voltage rating 230V ~ 50Hz Control Circuit Cooling Performance * CAF368C5T 10,40 Capacity BTU/h 35491 1920 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 342 ~ 456 Available voltage range 6,60 Running amperes...
  • Page 12 GRF488L7TAA 380 - 415V 3N ~ 50Hz Power source 400V Voltage rating 230V ~ 50Hz Control Circuit Cooling Performance * CAF488C5T 14,10 Capacity BTU/h 48118 1920 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Electrical Rating 342 ~ 456 Available voltage range 9,70 Running amperes...

  • Page 13: Major Component Specifications

    2-2 Major Component Specifications Outdoor Unit: GRF98L5TAA Compressor Rotary (Hermetic) Type 5PS102EAG01 Compressor model Nominal input Compressor oil…Amount RB68A / Freol Alpha 68M…350 Ω C-R: 3,863 Coil resistance (Ambient temp. 20°C) C-S: 3,309 External (OLR T) Overload relay MRA99901-9201 Safety devices Type Operating Temp.
  • Page 14 Outdoor Unit: GRF128L5TAA Compressor Rotary (Hermetic) Type 5PS132EAD01 Compressor model Nominal output Compressor oil…Amount RB68A / Freol Alpha 68M…350 Ω C-R: 2,798 Coil resistance (Ambient temp. 20°C) C-S: 5,432 External (OLR T) Overload relay MRA98533-9201 Safety devices Type Operating Temp. Open °C Close °C...
  • Page 15 Outdoor Unit: GRF188L5TAA Compressor Rotary (Hermetic) Type 5KS205EAA21 Compressor model Nominal input 1700 FV50S …670 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) C-R: 1,780 C-S: 2,175 Overload relay Internal Thermal protector Safety devices Type Operating Temp. Open °C Close °C Run capacitor µF...
  • Page 16 Outdoor Unit: GRF188L7TAA Compressor Rotary (Hermetic) Type 5KS205PAA21 Compressor model Nominal input 1780 FV50S …670 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) U-V: 7,767 U-W: 7,943 V-W: 7,630 Internal Overload relay Safety devices Type Thermal protector Operating Temp. Open °C Close °C...
  • Page 17 Outdoor Unit: GRF228L7TAA Compressor Rotary (Hermetic) Type 5JS270PAA21 Compressor model Nominal input 1800 FV50S … 1130 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) U-V: 5,786 U-W: 5,954 V-W: 5,562 Internal Overload relay Safety devices Type Thermal protector Operating Temp. Open °C Close °C...
  • Page 18 Outdoor Unit: GRF258L7TAA Compressor Rotary (Hermetic) Type 5JS330PBA21 Compressor model Nominal input 2845 / 2895 FV50S …1130 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) U-V: 5,786 U-W: 5,954 V-W: 5,562 Internal Overload relay Safety devices Type Thermal protector Operating Temp. Open °C Close °C...
  • Page 19 Outdoor Unit: GRF368L7TAA Compressor Rotary (Hermetic) Type 5JD420PAA02 Compressor model Nominal input 3500 RB68A o Freol Alpha68M …1300 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) U-V: 3,478 U-W: 3,576 V-W: 3,344 Internal Overload relay Safety devices Type Thermal protector Operating Temp.
  • Page 20 Outdoor Unit: GRF488L7TAA Compressor Rotary (Hermetic) Type ZP67KCE-TFD Compressor model Nominal input 5200 POE …1660 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) U-V: 2,5 U-W: 2,5 V-W:2,5 Internal Overload relay Safety devices Type Thermal protector Operating Temp. Open °C Close °C Run capacitor...

  • Page 21: Other Component Specifications

    2-3 Other Component Specifications YTB-S383 Thermostat (fan speed control) HIGH…LOW 28,5°C ± 1 Switching temperature °C Ω (at 20°C) LOW…HIGH 31°C ± 1 Coil resistance Relay H62S Contact rating 5 A - 220 V Coil supply Coil resistance (20 °C) kΩ...

  • Page 22: Dimensional Data

    3. DIMENSIONAL DATA Outdoor Unit: GRF98L5TAA GRF128L5TAA 4 – ø12 holes Air intake Wide tube service valve ø9.52 (3/8") 7000/9000 BTU/h ø12.7 (1/2") 12000 BTU/h Narrow tube service valve Air discharge ø6.35 (1/4") Unit : mm...
  • Page 23 Outdoor Unit: GRF188L5TAA dimension mm GRF188L7TAA 4 - Ø12 for anchor bolt WIDE TUBE D.12,7 (1/2") NARROW TUBE D.6,35 (1/4") Outdoor Unit: GRF228L7TAA GRF258L7TAA dimension mm NARROW TUBE D.6,35 (1/4") WIDE TUBE D.15,88 (5/8") 4 - Ø13 for anchor bolt...
  • Page 24 Outdoor Unit: GRF368L7TAA dimension mm GRF488L7TAA...

  • Page 25: Refrigerant Flow Diagram

    4. REFRIGERANT FLOW DIAGRAM Indoor Unit: MRAF98C5T MRAF128C5T MPAF188C5T MPAF228C5T CAF258C5T Outdoor Unit: GRF98L5TAA GRF128L5TAA GRF188L5TAA GRF188L7TAA GRF228L7TAA GRF258L7TAA Indoor Unit Outdoor Unit: Indoor Unit: CAF368C5T CAF488C5T Outdoor Unit: GRF368L7TAA GRF488L7TAA Indoor Unit Outdoor Unit:...
  • Page 26 IMPORTANT Because capillary tubing is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation, both tubes must be well insulated with a proper insulation material. The thickness of the insulation should be a min.

  • Page 27: Performance Data

    5. PERFORMANCE DATA 5-1 Performance charts GRF98L5TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,20 Indoor inlet air D.B. (°C) 1,10 1,00 0,90 0,80 0,70 0.8180.531.00 05/2007 0,60 Outdoor inlet air D.B. (°C)
  • Page 28 GRF128L5TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,10 Indoor inlet air D.B. (°C) 1,00 0,90 0,80 0,70 0,60 0.8180.531.00 05/2007 0,50 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 29 GRF188L5TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,20 Indoor inlet air D.B. (°C) 1,10 1,00 0,90 0,80 0,70 0.8180.531.00 05/2007 0,60 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 30 GRF188L7TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,20 Indoor inlet air D.B. (°C) 1,10 1,00 0,90 0,80 0,70 0.8180.531.00 05/2007 0,60 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 31 GRF228L7TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,10 Indoor inlet air D.B. (°C) 1,00 0,90 0,80 0,70 0,60 0.8180.531.00 05/2007 0,50 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 32 GRF258L7TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,10 Indoor inlet air D.B. (°C) 1,00 0,90 0,80 0,70 0,60 0.8180.531.00 05/2007 0,50 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 33 GRF368L7TAA Cooling Characteristics Indoor inlet air D.B. (°C) 0,74 Outdoor inlet air D.B. temp. (°C) 1,10 Indoor inlet air D.B. (°C) 1,00 0,90 0,80 0,70 0,60 0.8180.531.00 05/2007 0,50 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.
  • Page 34 GRF488L7TAA Cooling Characteristics 12,0 Indoor inlet air 11,5 D.B. (°C) 11,0 10,5 10,0 0,74 Outdoor inlet air D.B. temp. (°C) 1,10 Indoor inlet air D.B. (°C) 1,00 0,90 0,80 0,70 0,60 0.8180.531.00 05/2007 0,50 Outdoor inlet air D.B. (°C) Notes: Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches extremely high values in heating mode.

  • Page 35: Cooling Capacity

    5-2 Cooling Capacity OUTDOOR UNIT: GRF98L5TAA INDOOR UNIT: MRAF98C5T 220 - 240V ~ 50Hz RATING CAPACITY 2,70 kW moisture removal 0,8 l/h COMP. POWER INPUT 0,68 kW max comp input 0,79 kW AIR FLOW RATE 450 m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP.
  • Page 36 OUTDOOR UNIT: GRF128L5TAA INDOOR UNIT: MRAF128C5T 220 - 240V ~ 50Hz RATING CAPACITY 3,40 kW moisture removal 1,5 l/h COMP. POWER INPUT 0,956 kW max comp input 1,156 kW AIR FLOW RATE 470 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 37 OUTDOOR UNIT: GRF188L5TAA INDOOR UNIT: MPAF188C5T 220 - 240V ~ 50Hz RATING CAPACITY 5,20 kW moisture removal 2 l/h COMP. POWER INPUT 1,443 kW max comp input 1,793 kW AIR FLOW RATE 760 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 38 OUTDOOR UNIT: GRF188L7TAA INDOOR UNIT: MPAF188C5T 380 - 415V 3N ~ 50Hz RATING CAPACITY 5,30 kW moisture removal 2 l/h COMP. POWER INPUT 1,493 kW max comp input 1,943 kW AIR FLOW RATE 760 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 39 OUTDOOR UNIT: GRF228L7TAA INDOOR UNIT: MPAF228C5T 380 - 415V 3N ~ 50Hz RATING CAPACITY 6,50 kW moisture removal 2,5 l/h COMP. POWER INPUT 1,85 kW max comp input 2,37 kW AIR FLOW RATE 830 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 40 OUTDOOR UNIT: GRF258L7TAA INDOOR UNIT: CAF258C5T 380 - 415V 3N ~ 50Hz RATING CAPACITY 7,80 kW moisture removal 3 l/h COMP. POWER INPUT 2,261 kW max comp input 3,081 kW AIR FLOW RATE 1020 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 41 OUTDOOR UNIT: GRF368L7TAA INDOOR UNIT: CAF368C5T 380 - 415V 3N ~ 50Hz RATING CAPACITY 10,40 kW moisture removal 3,5 l/h COMP. POWER INPUT 2,802 kW max comp input 3,402 kW AIR FLOW RATE 1920 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
  • Page 42 OUTDOOR UNIT: GRF488L7TAA INDOOR UNIT: CAF488C5T 380 - 415V 3N ~ 50Hz RATING CAPACITY 14,10 kW moisture removal 5 l/h COMP. POWER INPUT 4,502 kW max comp input 5,902 kW AIR FLOW RATE 1920 m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.

  • Page 43: Electrical Data

    6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: GRF98L5TAA COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,12 0,28 3,00 3,40 Power input 0,027 0,063 0,680...
  • Page 44 OUTDOOR UNIT: GRF188L7TAA COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,37 0,41 2,62 3,40 Power input 0,070 0,087 1,493 1,650 Full load conditions Running Amps. 0,37 0,41 3,32...
  • Page 45 OUTDOOR UNIT: GRF368L7TAA COOLING Indoor Unit Outdoor unit Complete Unit Fan Motor Fan Motor Compressor performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 0,92 1,34 4,34 6,60 Power input 0,210 0,29 2,802 3,300 Full load conditions Running Amps. 0,92 1,34 5,14...

  • Page 46: Electric Wiring Diagram

    6-2 Electric Wiring Diagram GRF98L5TAA GRF128L5TAA GRF188L5TAA...
  • Page 47 GRF188L7TAA GRF228L7TAA...
  • Page 48 GRF258L7TAA GRF368L7TAA...
  • Page 49 GRF488L7TAA...

  • Page 50: System Wiring Diagram

    6-3 System Wiring Diagram MRAF98C5T MRAF128C5T GRF98L5TAA GRF128L5TAA MPAF188C5T GRF188L5TAA MPAF188C5T CAF258C5T GRF188L7TAA GRF258L7TAA MPAF228C5T CAF368C5T GRF228L7TAA GRF368L7TAA CAF488C5T GRF488L7TAA...
  • Page 51 0.8180.557.00 06/2008 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...

This manual is also suitable for:

Grf188l5taaGrf258l7taaGrf128l5taaGrf188l7taaGrf368l7taaGrf228l7taa grf488l7ta ... Show all
