IMPORTANT: PLEASE READ THESE
INSTRUCTIONS THOROUGHLY BEFORE USING
THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR
FUTURE REFERENCE.
IMPORTANT USER INFORMATION
These notes are provided in the interest of safety.
You must read them before installing or using the
appliance.
- This tumble dryer is intended for NORMAL DOMESTIC
USE ONLY.
- This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision. Children of less than 3 years should be
kept away unless continuously supervised.
- Adequate ventilation must be provided to avoid back flow of
gases into the room from appliances burning other fuels,
including open fires.
INSTRUCTIONS FOR USE

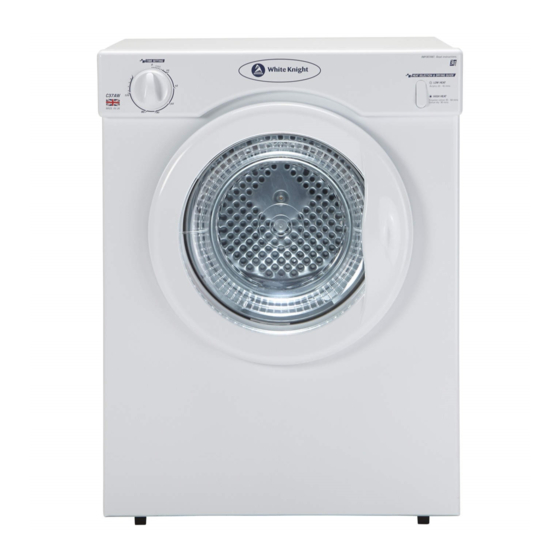

TUMBLE DRYER
Advertisement
Table of Contents
Related Manuals for White Knight C37AW-S
Summary of Contents for White Knight C37AW-S
- Page 1 INSTRUCTIONS FOR USE TUMBLE DRYER IMPORTANT: PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE. IMPORTANT USER INFORMATION These notes are provided in the interest of safety. You must read them before installing or using the appliance.
- Page 2 - Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel. - Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected.
- Page 3 supply for long periods (i.e. weekends, if it is to be left unattended for holidays etc.) - The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.
-
Page 4: Additional Information
attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts. WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility ADDITIONAL INFORMATION Many outlets sell “universal”... -
Page 5: Operation
THE CONTROLS A. THE TIMER Turn the timer knob fully clockwise before selecting the required drying time based on the recommendations on the control panel. B. HEAT SWITCH Select the required heat setting based on the recommendations on the control panel. PREPARATION Check care labels inside the garments CARE LABELS YOU MAY FIND ON YOUR FABRICS... -
Page 6: Safety Cut-Out
If your appliance is Uni-directional, a full load will typically take 90 minutes and will use approximately 2.05kWh of electricity. A half load will typically take 55 minutes and will use approximately 1.15kWh of electricity. If your appliance is Reversing, a full load will typically take 105 minutes and will use approximately 2.22kWh of electricity. -
Page 7: This Appliance Must Be Earthed
THIS APPLIANCE MUST BE EARTHED 798 Wall / Window Vent Kit Note: To make a remote connection e.g. more than 30cm (12ins.) from the dryer you will require the vent hose CL001. S. This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). - Page 8 VENT HOSE ASSEMBLY One end of the vent hose is fitted with an adaptor which can be pushed into the exhaust outlet at the bottom rear of the tumble dryer. The free end should be led to a suitable outlet. It may simply be hung through an open window or a more permanent connection made using the four holes in the adapter flanges.
-
Page 9: Approved Service Agents
APPROVED SERVICE AGENTS: White Knight (Whirlpool) 0800 988 1323 (calls are free from landlines however calls from mobiles may be charged at your network provider’s rates) White Knight (0800 Repair): 0344 8797422 (Calls charged at basic rate). - Page 10 Compact SDO Uni Suppliers name or trade mark WHITE KNIGHT Model identifier 372, 371, 37A, 36A - TYPE Rated capacity at full load Appliance type Air Vented Energy efficiency class Energy consumption of the appliance* 248kWh The figures above is based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low-power modes.
- Page 11 Compact SDO Rev Suppliers name or trade mark WHITE KNIGHT Model identifier 332, 382, 38A, 35A - TYPE Rated capacity at full load Appliance type Air Vented Energy efficiency class Energy consumption of the appliance* 251kWh The figures above is based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low-power modes.
- Page 12 ACCESSORY ORDER FORM – Compact (3kg dryer) Item Number Description Price CL.001.s Vent Hose 1.8m (6ft) long (Approx) £17.21 Wall/Window Vent Kit £28.18 Wall Mounting Kit £17.21 Alpha Tumble Dryer Stack Kit £24.08 Dryer Balls £8.98 You can cancel this order within 14 days of receipt of the goods. The item/s should be returned within 14 days at your cost. A refund for the initial purchase price will be given although a deduction may be made if the goods have been used.
