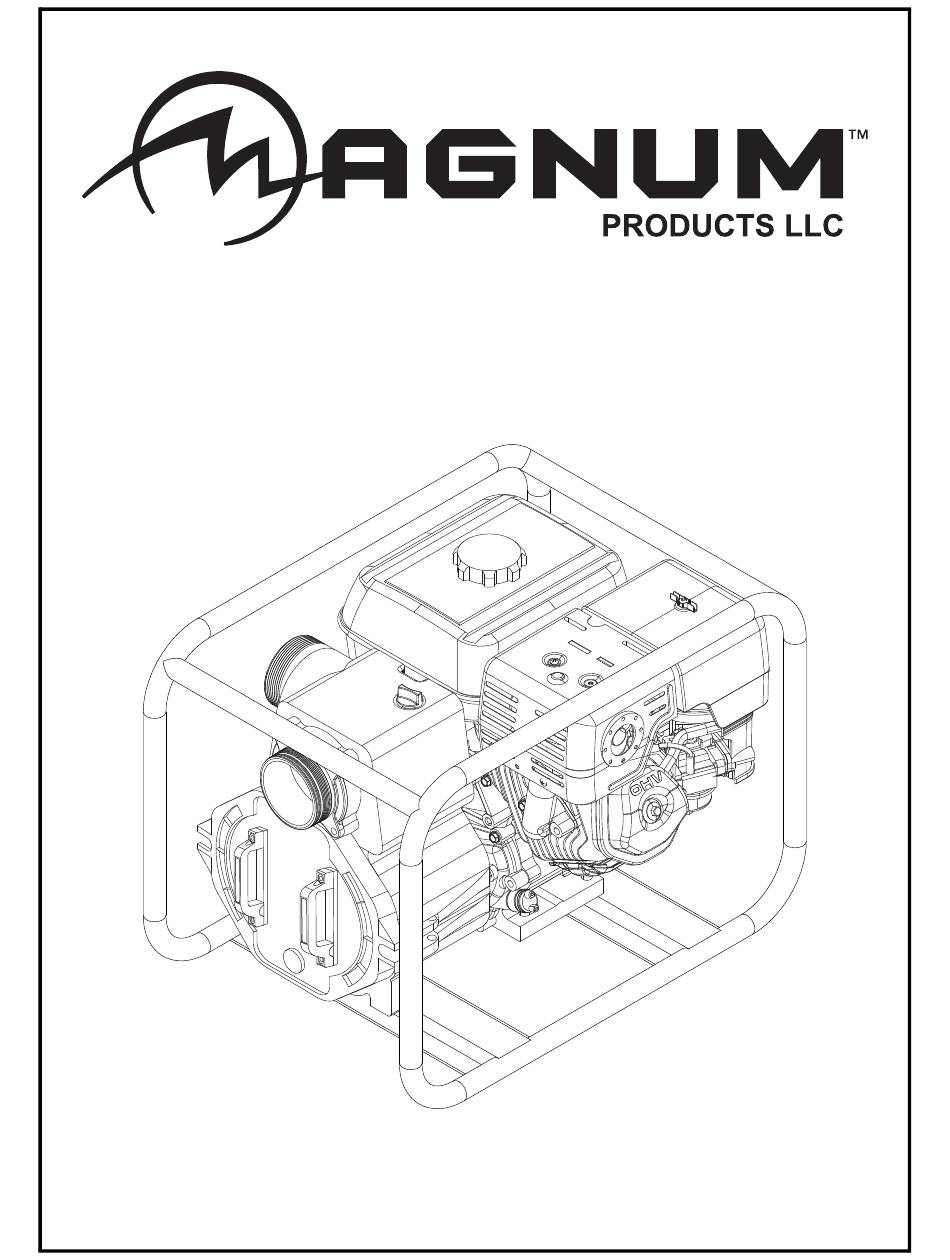

- Page 1 PORTABLE TRASH PUMPS MTP200 • MTP300 • MTP400 OPERATING & PARTS MANUAL...
-
Page 2: Introduction
Occupational Safety and Health Association (OSHA) guidelines. Keep a copy of this manual with the unit at all times. Additional copies are available from Magnum Products LLC, or can be found at www.m-p-llc.com. An engine operator’s manual was also supplied with the unit at the time of shipment from the factory. -
Page 3: Table Of Contents
STORING THE PUMP ........................10 MTP200 UNIT DECALS ......................... 11 MTP300 UNIT DECALS ......................... 12 MTP400 UNIT DECALS ......................... 13 MTP200 ASSEMBLY AND PARTS .................... 14 - 15 MTP300 ASSEMBLY AND PARTS .................... 16 - 17 MTP400 ASSEMBLY AND PARTS .................... 18 - 19... -
Page 4: Safety Notes
SAFETY NOTES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. This manual contains DANGERS, WARNINGS, CAUTIONS, NOTICES and NOTES which must be followed to prevent the possibility of improper service, damage to the equipment, personal injury or death. -
Page 5: Engine Safety
Read all of the manuals included with this unit. Each manual details specific information regarding items such as set-up, use and service requirements. Specifica- tions are subject to change without notice. MAGNUM MODEL MTP200 MTP300... -
Page 6: Unit Serial Number Location
UNIT SERIAL NUMBER LOCATION Refer to the location illustrated below to find the unit ID tag. Important information, such as the unit serial and model numbers are found on this tag. Record the information from this tag, so it is available if the tag is lost or damaged. When ordering parts or requesting technical service information, you may be asked to specify this information. -
Page 7: Component Locations
COMPONENT LOCATIONS FUEL TANK OIL FILL/ LEVEL CHECK RECOIL STARTER PRIMING PORT AIR FILTER DISCHARGE SUCTION SPARK PLUG MUFFLER DRAIN OIL FILL HOSE RECOMMENDATIONS HOSES • Suction hoses must be rigid enough not to collapse when pump is operating. • Discharge hoses need to be thin-walled and collapsible. -
Page 8: Starting The Pump
STARTING THE PUMP Before starting the pump, add engine oil and gasoline. See page 11 for instructions on how to properly fill the unit with engine oil. 1. Attach suction and discharge hoses. DANGER CARBON MONOXIDE: USING A GENERATOR INDOORS CAN KILL YOU IN MINUTES! 2. -
Page 9: Maintenance Schedule
MAINTENANCE SCHEDULE The following maintenance schedule should be followed to ensure proper performance of the unit. ITEM DAILY HRS. HRS. HRS. HRS. Visual walk around inspection Check engine oil level Check air filter Check external hardware Inspect hoses and housing for leaks Change engine oil Clean air filter Check and adjust spark plug... -
Page 10: Adding Engine Oil
ADDING ENGINE OIL 1. Place the pump on a firm, level surface. 2. Remove the oil fill cap/dipstick. Clean the area UPPER around the oil fill cap and wipe the dipstick clean. LIMIT 3. Insert the dipstick in oil filler neck. Do not thread into filler neck. -
Page 11: Mtp200 Unit Decals
MTP200 UNIT DECALS PN: 26562 Decal, small "M" - portables WARNING ADVERTENCIA AVERTISSEMENT PRIME PUMP BEFORE STARTING. Bomba primera antes de comenzar. Pompe principale avant de commencer. WARNING ADVERTENCIA AVERTISSEMENT WARNING ADVERTENCIA AVERTISSEMENT MTP 200 PN: 42115 Decal, MTP200 Note: All safety and operating decals shown above are located on decal sheet 26563, unless otherwise noted. -
Page 12: Mtp300 Unit Decals
MTP300 UNIT DECALS PN: 26562 Decal, small "M" - portables WARNING ADVERTENCIA AVERTISSEMENT PRIME PUMP BEFORE STARTING. Bomba primera antes de comenzar. Pompe principale avant de commencer. WARNING ADVERTENCIA AVERTISSEMENT WARNING ADVERTENCIA AVERTISSEMENT PN: 41947 Decal, MTP300 Note: All safety and operating decals shown above are located on decal sheet 26563, unless otherwise noted. -
Page 13: Mtp400 Unit Decals
MTP400 UNIT DECALS PN: 26562 Decal, small "M" - portables WARNING ADVERTENCIA AVERTISSEMENT PRIME PUMP BEFORE STARTING. Bomba primera antes de comenzar. Pompe principale avant de commencer. WARNING ADVERTENCIA AVERTISSEMENT WARNING ADVERTENCIA AVERTISSEMENT PN: 41948 Decal, MTP400 Note: All safety and operating decals shown above are located on decal sheet 26563, unless otherwise noted. -
Page 14: Mtp200 Assembly And Parts
MTP200 ASSEMBLY AND PARTS... - Page 15 ITEM PART DESCRIPTION NOTES 41761 Spring washer 41753 Handles 42577 Cap, plug 42582 O-ring, 24mm 42586 Cover 42594 O-ring, 242mm 42588 Inner casing 41760 Spring washer 41810 O-ring, 220mm 42589 Packing 42587 Impeller 41820 O-ring, 195mm 41816 Mechanical seal 42598 Screw nut 42597 Press board...
-
Page 16: Mtp300 Assembly And Parts
MTP300 ASSEMBLY AND PARTS... - Page 17 ITEM PART DESCRIPTION NOTES 41761 Spring washer 41753 Handles 42577 Cap, plug 42582 O-ring, 24mm 41730 Cover 41766 O-ring, 242mm 42578 Inner casing 41760 Spring washer 41767 O-ring, 220mm 41799 Packing 41779 Impeller 42571 O-ring, impeller 42572 Mechanical seal 41752 Screw nut 41751 Press board...
-
Page 18: Mtp400 Assembly And Parts
MTP400 ASSEMBLY AND PARTS... - Page 19 ITEM PART DESCRIPTION NOTES 41761 Spring washer 41753 Handles 42577 Cap, plug 42582 O-ring, 24mm 41730 Cover 41766 O-ring, 242mm 42569 Inner casing 41760 Spring washer 41767 O-ring, 220mm 42570 Impeller 42571 O-ring, impeller 42572 Mechanical seal 41752 Screw nut 41751 Press board 41718...
- Page 20 REV: A PART NO: 42602 01.15.10...
