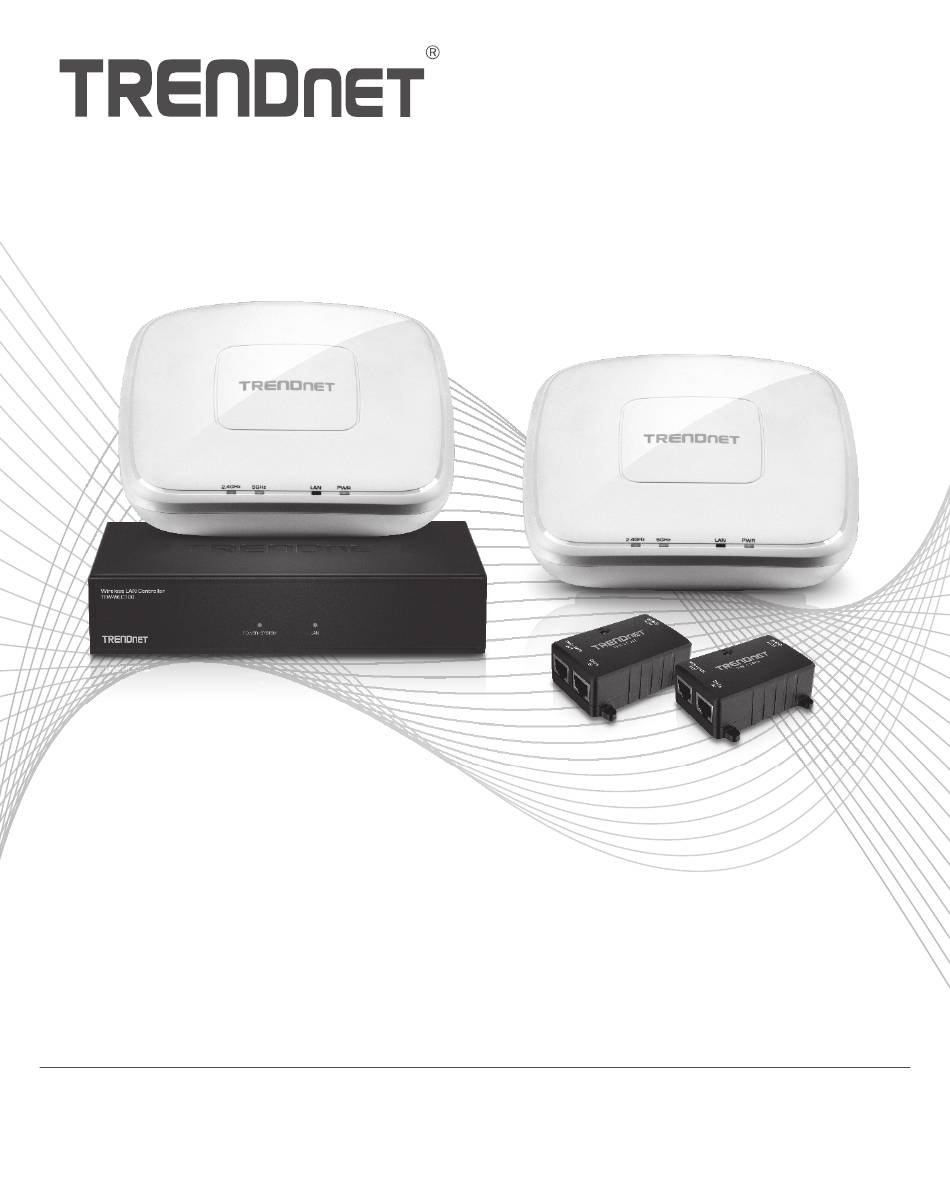

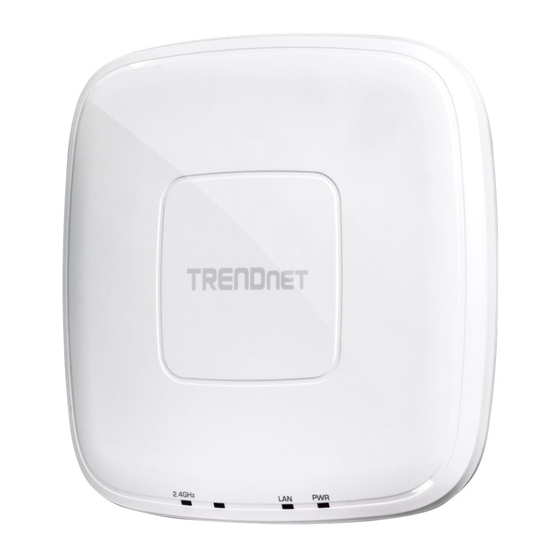

- Page 1 Quick Installation Guide TEW-755AP2KAC (V1) / TEW-821DAP2KAC (V1)
- Page 2 Table of Content 1 English 1. Before You Start 2. Hardware Installation and Configuration 3. Connect your wireless access points...
-
Page 3: Before You Start
Important Note: Make sure your existing network is using a DHCP server to distribute IP addresses to the access points. By default, TRENDnet access points listed below will obtain an IP address automatically through DHCP or otherwise default back to 192.168.10.100 / 255.255.255.0 if a DHCP server is not available on your network. - Page 4 You can download the access point's firmware from http://www.trendnet.com/support which include instructions on how to upgrade the firmware. Before any additional access points are added to the wireless controller, make sure to reset the access points to factory default.
-
Page 5: Initial Controller Setup
2. Initial Controller Setup Note: Before connecting the wireless controller to the network and connecting other devices such as PoE injectors or access points, follow the steps to set up your controller IP address settings and administrator password first. Power 3. - Page 6 5. Enter the User name and Password, and then click Login. By default: User Name: admin Password: admin Login 6. Click Management and click on LAN. Management...
-
Page 7: Account Settings
7. Configure the wireless controller IP address settings to match the requirements of your network and click Apply. LAN Settings TEW-WLC100 Network Settings IP Address 192.168.10.200 Netmask 255.255.255.0 Gateway 192.168.10.1 DNS1 192.168.10.1 DNS2 Apply 8. To change the controller administrator password, click Account Settings and click Edit. Account Settings Edit... - Page 8 9. In the New Password and Confirm Password fields, enter the new administrator password and click OK to save the new password settings. You will be prompted immediately afterwards to login to the controller management page with the new password. New Password Confirm Password 10.
-
Page 9: Connect Your Wireless Access Points
3. Connect your wireless access points Note: Before mounting the access points to the desired locations, connect the access point locally directly to the wireless controller first for initial configuration. The access points are standard IEEE 802.3af PoE compliant and may also be connected to a PoE/PoE+ switch for data and power, however, for the purposes of this installation guide we will reference installation using the supplied PoE injectors. -
Page 10: Initial Wireless Setup
4. Initial Wireless Setup 1. Using your computer and web browser, access the wireless controller management page using the newly assigned IP address settings (configured in Section 2) and login. Note: If the IP address settings were not changed in Section 2, the IP address settings for the controller are 192.168.10.200 / 255.255.255.0. - Page 11 4. After the access points are discovered and appear in the Device List, under the Action column, click on each access point to add them to the wireless controller. Accept Device Name Mac Address Address History Type Action Wifi Group Status Client DOWN...
- Page 12 7. In the list below, click Create to create a new wireless profile. 8. In the Edit Wireless Group window, enter the wireless network name/SSID for the wireless network. (e.g. TRENDnet-WiFi) Note: The SSID is the wireless network name used to broadcast and be discovered by your wireless client devices to connect to your wireless network.
-
Page 13: Mounting Plate
12. To mount the access points, install the mounting plates first to the desired wall or ceiling using the included drywall anchors and screws. Install the mounting plates with the clips facing away from the wall. If wall mounting, install the mounting plates with the correct orientation. - Page 14 N300 Wireless Controller Kit / AC1200 Dual Band Wireless Controller Kit Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009: + A1: 2010 + A12: 2011 + A2: 2013 EN 301 489-1 V1.9.2: 09-2011 (TEW-755AP / TEW-821DAP)
- Page 15 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: www.trendnet.com/register Toll free US/Canada: 1-855-373-4741 Regional phone numbers available at www.trendnet.com/support...
