User, Service and Installation Manual

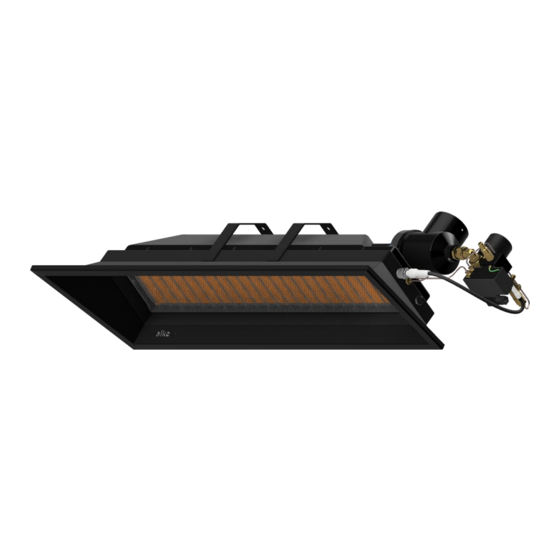

AL-8, AL-10, AL-12 Series
Atmospheric ceramic gas infrared heaters for outdoor use
Country of destination:
GB, IE, MT
General international manual
AL-12-SEi-AS
Alke BV
Industrielaan 11a
3925 BD Scherpenzeel
The Netherlands
Tel: +31 33-277 3824
Fax: +31 33-277 3080
info@alke.nl
www.alke.nl
Version 1: December 2020
1
manual: 0009 0251EN-Alke
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alke AL-8 Series
Summary of Contents for Alke AL-8 Series
- Page 1 Atmospheric ceramic gas infrared heaters for outdoor use Country of destination: GB, IE, MT General international manual AL-12-SEi-AS Alke BV Industrielaan 11a 3925 BD Scherpenzeel The Netherlands Tel: +31 33-277 3824 Fax: +31 33-277 3080 info@alke.nl www.alke.nl Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 2 Fig. 1a Fig. 1b Fig. 1c Fig. 1d Fig. 2a Fig. 2b Fig. 3 Fig. 4a Fig. 4b Fig. 4c Fig. 5 Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 3 Do not touch, move, handle or service a heater when it is in operation. NOTE: Sometimes in the text numbers between brackets are used. These numbers correspond with the numbers of the exploded view and parts list in the back of the manual. Version 1: December 2020 manual: 0009 0251EN-Alke...
-
Page 4: General Information
(like exhibition halls, covered shopping streets, etc). First check with the local authorities in these situations. Never use the heater in small indoor spaces. Version 1: December 2020 manual: 0009 0251EN-Alke... - Page 5 120 cm 130 cm 160 cm Side edge reflector to: [E] - combustible side-walls 50 cm 50 cm 50 cm *) This distance is guaranteed when the suspension bracket (number 24) is used. Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 6 To avoid problems, use galvanised or copper tubing for the gas line. First make a calculation to determine the capacity of the whole system and the diameters of the piping. Use the common available calculation methods as written in gas pipe installation standards. Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 7 Pay special attention to the hose connections. Maintain maximum air ventilation during the test. Repeat this check at least every year. This soundness check shall be done by a competent installer only. Version 1: December 2020 manual: 0009 0251EN-Alke...
-
Page 8: Electrical Information
Max 30VA Max 50VA Current rating: Max 0,2A 0,3A Waiting time T(w) 7 seconds 7 seconds Safety time T(s) 30 seconds 30 seconds Schematic diagram electronic ignition device Timing diagram electronic ignition device Version 1: December 2020 manual: 0009 0251EN-Alke... -
Page 9: Operation
Make sure that the gas supply pressure remains constant at the value indicated on the data plate. Adjust the heat input between high and low by opening or closing the solenoid valve (S). Version 1: December 2020 manual: 0009 0251EN-Alke... -
Page 10: Cleaning, Maintenance And Servicing
Check all gas carrying parts and connections for gas tightness with leak detection liquid or soapy water according the procedure in the standards applicable at the local installation situation. Never use a flame for soundness checks! Version 1: December 2020 manual: 0009 0251EN-Alke... - Page 11 • Check the gas supply for the proper gas pressure and gas type and do a leakage test first. • Take the heater into operation and do a visual examination of the flame as explained above. Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 12 Position of thermocouple Position thermocouple AL-8, AL-10, AL-12 A= 33 mm, B= 12 mm Position of the spark plug Spark gap C= 5 mm Y = 3-4 mm Version 1: December 2020 manual: 0009 0251EN-Alke...
-
Page 13: Fault Finding
Injector (partly) blocked • Thermocouple has not the proper location to the ceramic burner • Heater will not attain the desired The solenoid valve (S) is not functioning • temperature Injector partly blocked Version 1: December 2020 manual: 0009 0251EN-Alke... -
Page 14: Parts List
Always mention the model name and serial number. Service parts are only available via the distributor or gas installer. For general manufacturers information please see the internet: www.alke.nl Overview Parts AL-8, -10, -12 Version 1: December 2020 manual: 0009 0251EN-Alke... - Page 15 AL-8 Asymmetric reflector (AS) 02310012 AL-10 Asymmetric reflector (AS) 02312012 AL-12 Asymmetric reflector (AS) 02310111 AL-10 Symmetric reflector 02312111 AL-12 Symmetric reflector 02310210 AL-10 Economy reflector (ER) 02312210 AL-12 Economy reflector (ER) 02722002 Mounting bracket Version 1: December 2020 manual: 0009 0251EN-Alke...
-
Page 16: Declaration Of Conformity
10. Declaration of conformity Alke B.V., located in Scherpenzeel, The Netherlands, hereby declares that the AL-series, marked on their dataplates with CE and with CE approval/production supervision by Kiwa (number 0063) are in compliance with the following EU legislation: Regulation on appliances burning gaseous fuels (GAR) 2016/426/EU... - Page 17 Class pressure pressure ** Input Input S-model (-)* (mbar) (mbar) (kW Hs) (kW Hs) (g/h or m3/h) (mm) (mm) (mm) AL-8 series 2E, 2E+, 2H 0,56 m3/h 1,75 2,10 26,0 0,65 m3/h 1,93 2,30 26,0 G25.3 0,65 m3/h 1,82 2,15...
-
Page 18: Maintenance
(Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Version 1: December 2020 manual: 0009 0251EN-Alke... - Page 19 (Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Yearly maintenance Remarks: (Carried out by) (Stamp installer) Date: Version 1: December 2020 manual: 0009 0251EN-Alke...
- Page 20 The local distributor: Version 1: December 2020 manual: 0009 0251EN-Alke...
