User and Installation Manual
Global-5, Global-8
Series

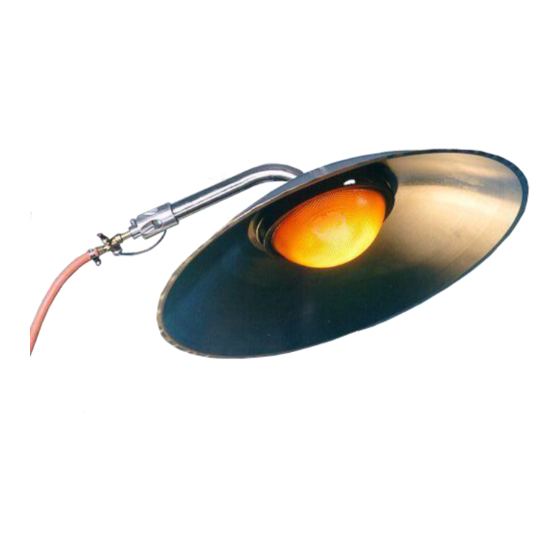

Atmospheric stainless steel gas infrared heaters for use in well ventilated areas
Global-5
Global-8
Global-5(..)TE
Global-8(..)TE
Global-5(..)TETH
Global-8(..)TETH
Global-5(..)TEMK
Global-8(..)TEMK
Alke BV
Industrielaan 11a
3925 BD Scherpenzeel
The Netherlands
Tel: +31 33-277 3824
Fax: +31 33-277 3080
info@alke.nl
www.alke.nl
Version: April 2016
1
manual number: 0009 0440EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alke Global-8 Series
Summary of Contents for Alke Global-8 Series

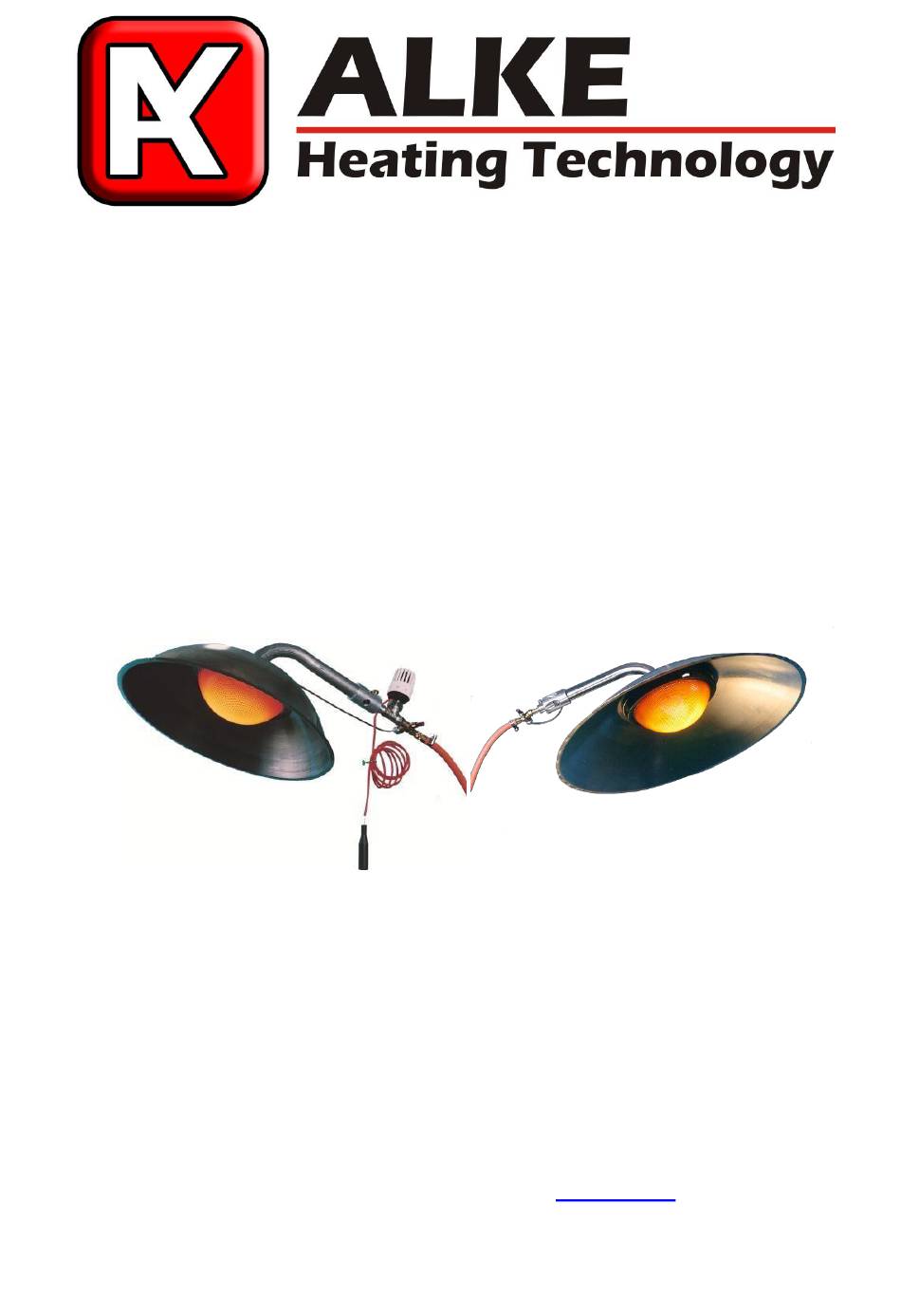

- Page 1 Atmospheric stainless steel gas infrared heaters for use in well ventilated areas Global-5 Global-8 Global-5(..)TE Global-8(..)TE Global-5(..)TETH Global-8(..)TETH Global-5(..)TEMK Global-8(..)TEMK Alke BV Industrielaan 11a 3925 BD Scherpenzeel The Netherlands Tel: +31 33-277 3824 Fax: +31 33-277 3080 info@alke.nl www.alke.nl Version: April 2016...
- Page 2 Version: April 2016 manual number: 0009 0440EN...
- Page 3 Warnings • Read this manual carefully before installation and use and keep it for future reference. Make sure that all daily users know the content of this manual. • Install these heaters only in according with all applicable local and/or national regulations for installation and ventilation of gas heaters.
-
Page 4: General Information
General information Model identification The main identification of the different models is Global-5 and Global-8. These are independent atmospheric stainless steel infrared heaters. Suffixes are used behind these model names to add additional type information about the models (e.g. Global-5 CETETHi). that particular type is CE approved equipped with a dual dust filter connection equipped with a thermocouple safety device... -
Page 5: Installation
Installation Place of installation The heaters are intended for use in well ventilated areas only. Do not install the heaters in situations that are not well ventilated. See also below for more ventilation information. Check also your local regulations for the ventilation and room size requirements. The amount of heaters per building is depending the type of building, the animals, the insulation, the climate and local wind conditions. - Page 6 • Place the chain ends in such a way at the fourth S-hook that the heater reflector makes an angle of approximately 15 (DI=3) degrees to the horizontal. The gas safety device shall be at the lower end. Never hang the heater horizontally while in that case the flue gases will influence a proper combustion.
- Page 7 Store the gas cylinders always on ground level in a well-ventilated place, preferably outside the room where the heater is. In case the gas cylinder is placed in a cylinder housing, or cover, make sure that there is enough ventilation as requested by the applicable regulations or standards. Never obstruct these ventilation holes.
- Page 8 Soundness check Before using a new built gas system, first make sure that the installer made a careful and extensive check for gas leakage. After executing a pressure drop test to determine that there are not large leaks, check every connection with soapy water or gas detection liquid with all gas valves open and with maximum gas pressure.
-
Page 9: Operation
Operation New heaters New heaters need a cleaning period before they are ready for operation. Turn the ventilation to maximum position or place the heaters outside in the open air. Fire the heaters for at least two hours on full capacity to burn-off oily and greasy remnants of the production. - Page 10 globe. This will not give a problem and is created by cooling air around the flame. A little bit yellow tipping or yellow glow in low fire is allowed. A burner does not operate well in case there is a (green)-blue cloud inside the reflector and/or (green) blue flame tongues are coming out the exhaust holes in the reflector.
-
Page 11: Maintenance
Maintenance General The frequency of maintenance is strongly depending on the quality of the combustion air and the intensity of use. When used in poultry houses, maintenance is advised every 6 weeks or by changing the animals. By use in clean environment conditions, the maintenance period can be extended but not longer than 6 months. - Page 12 Internal cleaning The internal part of a heater can be cleaned with compressed air or with a tube brush. If needed do this every day. First clean the outside of the burner globe. Then the inside of the venturi and burner tube via the dust filter connection.
-
Page 13: Fault Finding Table
Fault finding table Trouble Action • Check if gas valve of the gas cylinder or gas line is open • Check if gas cylinder is empty • First ignition will take up to 60 or more seconds before gas is available Burner does not light. -
Page 14: Parts List
Parts list The parts list below is a combination list of both Global 5 and 8 models. Most parts of both models are identical. Parts that differ are specified with the Global model identification. Consult the data plate to determine the model you have before using this list. Part # Description Part #... - Page 16 Declaration of conformity We, Alke B.V., located in Scherpenzeel, The Netherlands, hereby declare that the Global 5 and 8 series, marked on their dataplates with CE and with CE approval/production supervision by Kiwa Gastec (number 0063) are in compliance with the following EU directive: - Directive on appliances burning gaseous...
