User, Service and Installation Manual
AP-1, AP-2, AP-3 Series

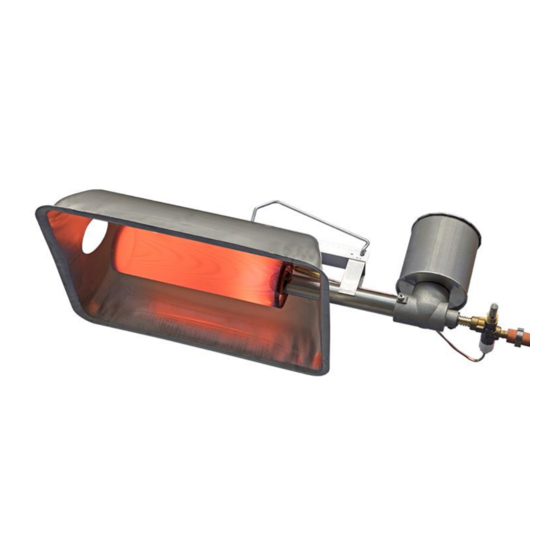

Atmospheric stainless-steel gas infra-red heaters for use in well ventilated areas
AP-1, AP-3
AP-1-F
AP-3-F
AP-3-FT
Country of destination:
GB, IE, MT
General international manual
Alke BV
Industrielaan 11a
3925 BD Scherpenzeel
The Netherlands
Tel: +31 33-277 3824
Fax: +31 33-277 3080
info@alke.nl
www.alke.nl
AP-2
AP-2-F
AP-2-FT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alke AP-1 Series
Summary of Contents for Alke AP-1 Series
- Page 1 Atmospheric stainless-steel gas infra-red heaters for use in well ventilated areas Country of destination: GB, IE, MT General international manual AP-1, AP-3 AP-2 AP-1-F AP-2-F AP-3-F AP-2-FT AP-3-FT Alke BV Industrielaan 11a 3925 BD Scherpenzeel The Netherlands Tel: +31 33-277 3824 Fax: +31 33-277 3080 info@alke.nl www.alke.nl...
-
Page 2: General Information
Warnings • Read this manual carefully before installation and use and keep it for future reference. Make sure that all daily users know the content of this manual. • Install these heaters only in according with all applicable local and/or national regulations for installation and ventilation of gas heaters. -
Page 3: Installation
Packaging Normally (depending model and order quantity) the heaters are packed per 1, 2, 4 of 6 in a box. Always check the heaters for transport damage directly after receiving them. Note that the heaters will be a bit discoloured by temperature due to a 5 minutes quality check after manufacturing. The heaters are pre-assembled. - Page 4 Safety distance to combustible materials The heaters produce heat by radiation and by combustion gases. It is important to take the following distances in account from the heaters to combustible materials. This is to avoid fire or overheating. Do not use the heaters in situations where the distances to combustibles are smaller. Never store gases or inflammable liquids or easy combustible materials in close vicinity of the heaters.
- Page 5 The gas hose shall be hanging free and have a distance of minimal 1 meter from the ground (AP-1, AP- 3 as much as possible). This to make sure that animals will not damage the hose. Connect the hose via an individual gas tap to the central gas supply.
- Page 6 For the AP-1 and AP-3 it is sufficient to have one gas cylinder (11 kg or larger) per heater. For the AP- 2 a minimum of 1,5 gas cylinders (of 11 kg) per heater is needed for a guaranteed gas supply. For a 45- kg gas cylinder a maximum of two AP-2 heaters is recommended.
-
Page 7: Operation
Operation New heaters New heaters need a cleaning period before they are ready for operation. Turn the ventilation to maximum position or place the heaters outside in the open air. Fire the heaters for at least two hours on full capacity to burn-off oily and greasy remnants of the production. -
Page 8: Service And Maintenance
Service and maintenance General The frequency of maintenance is strongly depending on the quality of the combustion air and the intensity of use. When used in poultry houses, maintenance is advised every 6 weeks or by changing the animals. By use in clean environment conditions, the maintenance period can be extended but not longer than 6 months. - Page 9 Internal cleaning The internal part of a heater can be cleaned with compressed air or with a tube brush. If needed do this every day. First clean the outside of the burner tube. Then the inside of the venturi and burner tube via the dust filter connection.
-
Page 10: Fault Finding Table
The thermostat is out of calibration or broken Declaration of conformity We, Alke B.V., located in Scherpenzeel, The Netherlands, hereby declare that the AP series, marked on their data plates with CE and with CE approval/production supervision by Kiwa (number 0063) are in... -
Page 11: Parts List
Parts list Part # Description Part # Description 07000000 End cap black PVC 07073000 Blind rivet nut M4 01327000 Hose nipple 8mm 02456000 Venturi gauze (flat) (AP-1, AP-3) 01328000 Hose nipple 8mm, smooth 03882000 Clamping ring venturi Gas safety device 1/8” 00101010 21,29 00201000 Thermocouple M8x320... - Page 12 Input Input (1x) T **(1x) Holder (mbar) (mbar) (kW Hs) (kW Hs) (g/h or m3/h) (mm) (mm) (mm) AP-1 series I2L, I2ELL 0,15 m3/h 0,71 I2H, I2E, I2ELL G20 0,95 0,67 0,09 m3/h 0,55 1,25 0,19 89 g/h 0,36...
