Fountain Components
Item Description
Caterina
Fountain Finial
Caterina
Fountain Small
Bowl
Caterina
Fountain Small
Pedestal
Caterina
Fountain Pump
Door
Caterina
Fountain Large
Bowl
Caterina
Fountain Large
Pedestal
Fountain Information:
• This fountain holds approximately 8 gallons of water.
• This fountain uses a large fountain cover: FTNCOV-LG
• Compatible with a LED kit
• A special stopper is not required for this part.
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-192A
1
FT-192B
1
FT-192C
1
FT-192D
1
FT-192E
1
FT-192F
1

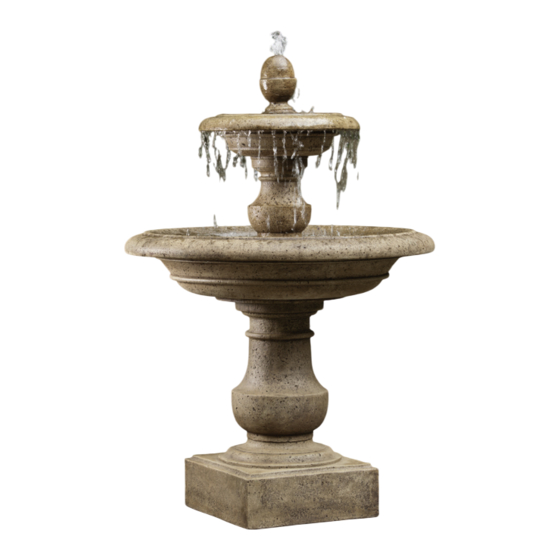

FT-192 Caterina Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
#10 Stopper
Approx. 12" length of 1/2" black
non-kink tubing
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
Wedges
4
2
rev 4/27/2020
Advertisement
Related Manuals for Campania International Caterina FT-192
Summary of Contents for Campania International Caterina FT-192
- Page 1 FT-192 Caterina Fountain Assembly Instructions Fountain Information: • This fountain holds approximately 8 gallons of water. • This fountain uses a large fountain cover: FTNCOV-LG • Compatible with a LED kit • A special stopper is not required for this part. Pump Information: OEMPF320 - 320 GPH Pump (16 ft.
- Page 2 FT-192 Caterina Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-192 Caterina Fountain Assembly Instructions Step 8 - Center the small bowl (FT-192B) over the pump house (FT-192C). Step 9 - Use a hose clamp to secure the loose end of the non-kink tubing to the pipe protruding from the bottom of the small bowl (FT-192B). FT-192B (34 lbs) 18.25"W x 5"H Step 10 - Center the finial (FT-192A) over the small bowl (FT-192B).
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
