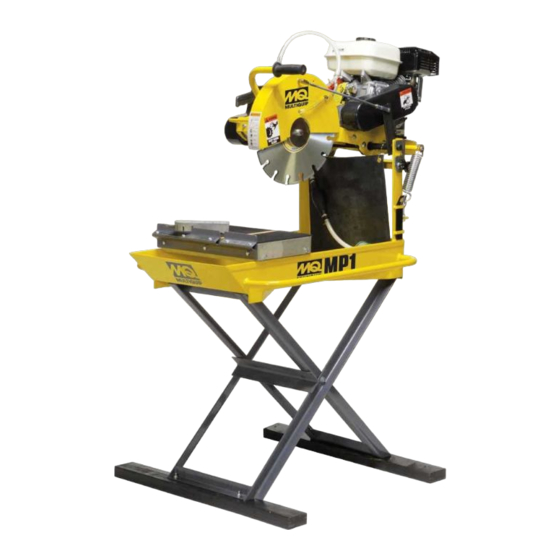

OPERATION AND PARTS MANUAL
MP1 SERIES
MODELS
MP1H (5.5 HP GASOLINE)
MP115E (1.5 HP ELECTRIC)
MP120E (2.0 HP ELECTRIC)
MASONRY SAWS
Revision #1 (03/29/10)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
P/N 38261

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MULTIQUIP MP1 Series

Summary of Contents for MULTIQUIP MP1 Series

  • Page 1 OPERATION AND PARTS MANUAL MP1 SERIES MODELS MP1H (5.5 HP GASOLINE) MP115E (1.5 HP ELECTRIC) MP120E (2.0 HP ELECTRIC) MASONRY SAWS Revision #1 (03/29/10) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PAGE 2 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 3: Silicosis/Respiratory Warnings

    NIOSH/MSHA for the materials being used. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 3...

  • Page 4: Table Of Contents

    Troubleshooting (Electric Motor) ......37 Troubleshooting (Gasoline Engine) ....38-39 Explanation of Code In Remarks Column....40 Suggested Spare Parts ........... 41 DRAWINGS COMPONENT NOTE PAGE 4 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 5: Parts Ordering Procedures

    All orders are treated as Standard Orders and will ship the same day if received prior to 3PM PST. WE ACCEPT ALL MAJOR CREDIT CARDS! MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 5...

  • Page 6: Safety Message Alert Symbols

    OFF position, when the saw this manual, and will be referenced in conjunction with Safety is not in use. " Message Alert Symbols ". PAGE 6 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 7 Other important messages are provided throughout this manual damaged if you do not follow to help prevent damage to your concrete saw, other property, or instructions. the surrounding environment. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 7...

  • Page 8: Rules For Safe Operation

    ■ NEVER run the engine without the air filter. Severe engine death. damage could occur. (Gasoline powered engines) ■ NEVER use fuel as a cleaning agent. PAGE 8 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 9 ■ ALWAYS use or operate the saw on a level surface to prevent recommended by the manufacturer for this equipment. the saw from tipping. Damage to the equipment and/or injury to user may result. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 9...
  • Page 10 Also know the phone numbers of the nearest ambulance , doctor and fire department . This information will be invaluable in the case of an emergency. PAGE 10 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 11: Operation And Safety Decals

    NOTES MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 11...

  • Page 12: Specifications

    16.8/8.4 Starting Method Recoil Start 12.0 x 14.3 x 13.2 in Dimension (304 x 362 x 335mm) Dry Net Weight 33.1 lbs. (15.0 kg) PAGE 12 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 13: Dimensions

    ) r o i l o . n i . n i . n i . 6 ( ) s r ) s r MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 13...

  • Page 14: General Information

    14-inch (356 mm) diamond blades that match the material being cut. Ask your dealer, or call MULTIQUIP about your specific cutting application. PAGE 14 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 15 NOTES MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 15...

  • Page 16: Controls And Components

    CONTROLS AND COMPONENTS Figure 2. MP1 Saw (Electric/Gasoline) PAGE 16 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 17 14. Mounting Plate Lock/Release Knobs – Turn knob (2) clockwise to release the mounting plate. Turn counter- clockwise to tighten. 15. Stopper – Place stopper in tray when filling with water. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 17...

  • Page 18: Electric Motor Components

    MP1 — ELECTRIC MOTOR COMPONENTS Figure 3. Electric Motor Components PAGE 18 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 19: Engine Components

    Choke Lever – Used in the starting of a cold engine, or in cold weather conditions. The choke enriches the fuel mixture. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 19...

  • Page 20: Pre-Setup (Electric)

    This will prevent some of the abrasive particles from flowing through the pump. Figure 7. Conveyor Cart Placement Figure 5. Water Tray/Water Pump PAGE 20 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 21 Figure 9. Blade Placement of rotation "downcuts" with the turn of the shaft. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 21...
  • Page 22 230 VAC position. Re- install the locking bolt to prevent accidently flipping the switch. Figure 12. Voltage Selector Switch Figure 13. Extension Cord Connection PAGE 22 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 23 Figure 14. GFCI Receptacle The MP1 masonry saw is now ready for wet cutting . The pre- setup procedures for electric models saws only is now complete. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 23...

  • Page 24: Pre-Setup (Gasoline)

    The mechanical water pump is NOTE shipped from the factory for wet cutting applications. Figure 16. Pump Engage PAGE 24 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 25 4. If the oil level is low (Figure 18), fill to the edge of the oil filler hole with the recommended oil type (Table 5). Maximum oil capacity is 0.63 quarts (0.60 liters) MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 25...

  • Page 26: Operation (Electric)

    NEVER touch a live power cord with wet hands. The possibility exists of electrical shock, electrocution which Figure 20. Mounting Plate Release/Lock Lever could cause severe bodily harm even death. PAGE 26 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 27 Using a soft cloth, clean any excess debris or residue that may have accumulated on the saw. Store saw in a clean dry location where it will be out of the reach of children. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 27...

  • Page 28: Operation (Electric)

    ALWAYS ensure that the cutting blade has been mounted correctly and that it is raised Figure 26. Choke Lever above the surface you are about to saw. PAGE 28 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 29 If the pump is working correctly, the cutting blade should be covered with a steady water mist. This will keep the blade cool. Figure 29. Priming Bulb MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 29...

  • Page 30: Maintenance

    4-5 lbs. of force with approximately 3/16" of belt deflection measured at a point midway between the pulleys. Tighten the motor mounting bolts and re- attach the belt guard. PAGE 30 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 31 Use only Premium Lithium 12 based Grease, conforming to NLG1 Grade #2 consistency. Grease daily . Figure 31. Cutting Head Removal Figure 30. Zerk Fittings (Lubrication) MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 31...
  • Page 32 . s l Reference manufacturer engine NOTE manual for specific servicing instructions. PAGE 32 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 33 DO NOT overfill. 4. Install drain bolt with sealing washer and tighten se- curely. Figure 34. Engine Air Cleaner Figure 33. Engine Oil (Draining) MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 33...

  • Page 34: Electric Motor Wiring Diagram

    WIRING DIAGRAM - ELECTRIC MOTOR Figure 34. Electric Motor Wiring Diagram PAGE 34 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 35 NOTES MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 35...

  • Page 36: Troubleshooting (Blade)

    Consult dealer or Multiquip for information. Excessive force applied to blade while DO NOT force the blade in the cut. Apply a slow and cutting? steady pace when sawing. PAGE 36 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 37: Troubleshooting (Electric Motor)

    MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 37...

  • Page 38: Troubleshooting (Gasoline Engine)

    . r e l a v c n i r r o h t i e r r PAGE 38 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 39 . y l r i r p i r p i a f r u l l a i n i r MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 39...

  • Page 40: Explanation Of Code In Remarks Column

    Multiquip. Other entries will for sale through Multiquip. be clarified in the “Remarks” Column. PAGE 40 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)

  • Page 41: Suggested Spare Parts

    3 .... 17210ZE1505 ..ELEMENT, AIR CLEANER 3 .... 9807956846 ..SPARK PLUG 1 .... 17620ZH7023 ..CAP, FUEL FILLER 1 .... 28462ZH8003 ..ROPE, RECOIL STARTER MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 41...
  • Page 42 NAME PLATE AND DECALS NAMEPLATE AND DECALS PAGE 42 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 43 PLATE, MODEL/SERIAL NUMBER ....1 ..CONTACT PARTS DEPT. 25349-001 DECAL, GUARD WARNING 38239 DECAL, MULTIQUIP 20525 DECAL, PROP 65 22122-001 DECAL, SERIOUS INJURY WARNING MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 43...
  • Page 44 TRAY ASSY. TRAY ASSY. PAGE 44 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 45 WASHER, FLAT SAE 1/2 23843-001 WATER PUMP, ELECTRIC 26077-001 FITTING, BRASS 6 BARB 1/4FP 12694-001 HOSE CLAMP 23867-002 TUBING, VINYL 5/16 4 FT. 14233-002 Y-FITTING MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 45...
  • Page 46 CART ASSY. CART ASSY. PAGE 46 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 47 TAPE, ROLL ADHESIVE TRNSFR 7 FT. 24288-001 GUIDE, CUTTING 08622-012 SCREW, THUMB 5/16 - 18 X 1-1/2 24301-501 CART ASSEMBLY ........1 ..INCLUDES ITEMS W/ MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 47...
  • Page 48 MOTOR PLATE & SHAFT ASSY. MOTOR PLATE & SHAFT ASSY. PAGE 48 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 49 WASHER, FLAT 5/16 ......2 ..NOT USED ON UNITS AFTER 06/03 0161 C WASHER, LOCK 5/16 ......1 ..NOT USED ON UNITS AFTER 06/03 07038-005 NUT, HEX JAM 5/16-24 PLTD MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 49...
  • Page 50 ENGINE HONDA 5.5 H.P. ENGINE HONDA 5.5 H.P. 15 16 PAGE 50 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 51 GUARD, BELT ........1 ... UNITS WITH PUMP 28322-003 PULLEY, JACKSHAFT 2F3V26X1 19470 WASHER, FLAT 5/16 1162 A CAP, GREASE ZERK #2 YLW 2621 ZERK, GREASE STR 1/4-28 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 51...
  • Page 52 ELECTRIC MOTOR ELECTRIC MOTOR PAGE 52 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 53 23865-001 SCREW, SELF-TAP 25139-001 LABEL, CORD SIZE 1662 TIE, CABLE 25215-001 DECAL, WARNING NS2536 VOLTAGE SELECTOR SWITCH 35CB3801A78 COVER, RECEPTACLE LD5196A01 AC RECEPTACLE, PUMP MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 53...
  • Page 54 WATER PUMP ASSY. (GASOLINE ONLY) WATER PUMP ASSY. (GASOLINE ONLY) PAGE 54 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 55 HOSE, WATER 3/8 X 17 25875-001 PRIMER BULB W/CLAMP 24892-013 HOSE, WATER 3/8 X 6 25685-001 STRAINER 25807-502 PUMP ASSEMBLY ......1 ..INCLUDES ITEMS W/ MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 55...
  • Page 56 SUPPORT STAND ASSY. SUPPORT STAND ASSY. (Option) PAGE 56 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 57 SCREW, HHCS 3/8-16 X 1-1/4 08233-006 LOCK NUT 3/8-16" GRIPCO 06500-016 SCREW, HHCS 5/16-18 X2" 07030-005 WASHER, FLAT 5/16" 08233-005 LOCK NUT 5/16-18" GRIPCO 25949 INSTRUCTIONS, SUPPORT STAND MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 57...
  • Page 58 HONDA GX160K1QXC9 — AIR CLEANER ASSY. AIR CLEANER (CYCLONE) ASSY. PAGE 58 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 59 PLATE, PRE AIR CLEANER 90300GB0900 BOLT, MUDGUARD 90325044000 WINGNUT, TOOL BOX SETTING 90325044000 WINGNUT, TOOL BOX SETTING 9405006000 NUT, FLANGE (6MM) 957010602000 BOLT, FLANGE (6X20) MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 59...
  • Page 60 HONDA GX160K1QXC9 — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 60 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 61 RETAINER, INTAKE VALVE SPRING 14773ZE1000 RETAINER, EXHAUST VALVE SPRING 14781ZE1000 ROTATOR, VALVE 14791ZE1010 PLATE, PUSH ROD GUIDE 90012ZE0010 BOLT, PIVOT 8MM 90206ZE1000 NUT, PIVOT ADJ. MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 61...
  • Page 62 HONDA GX160K1QXC9 — CARBURETOR ASSY. CARBURETOR ASSY. PAGE 62 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 63 JET, MAIN #62 ( OPTIONAL) 99101ZH80620 JET, MAIN #62 (OPTIONAL) 99101ZH80650 JET, MAIN #65 (OPTIONAL) 99204ZE20400 JET SET, PILOT #40 ......1 ..... INCLUDES ITEMS W/ MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 63...
  • Page 64 HONDA GX160K1QXC9 — CONTROL ASSY. CONTROL ASSY. PAGE 64 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 65 90114SA0000 NUT, SELF- LOCK 6MM 90605230000 CIRCLIP 5MM 93500040060H SCREW, PAN 4X6 93500050250H SCREW, PAN 5X25 93500050160A SCREW, PAN 5X16 9405006000 NUT, FLANGE 6MM MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 65...
  • Page 66 HONDA GX160K1QXC9 — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 66 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 67 10 % 15625ZE1003 GASKET, OIL FILLER CAP 91202883005 OIL SEAL 25X41X6 9430108140 PIN A, DOWEL 8X14 957010803200 BOLT, FLANGE 8X32 961006205000 BEARING, RADIAL BALL 6205 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 67...
  • Page 68 HONDA GX160K1QXC9 — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PAGE 68 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 69 HONDA GX160K1QXC9 — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310ZE1601 CRANKSHAFT (Q- TYPE) 90745ZE1600 KEY 4.78X4.78X38 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 69...
  • Page 70 HONDA GX160K1QXC9 — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 70 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 71 OIL SEAL 25X41X6 91353671003 O- RING 13.5X1.5 (ARAI) 9405010000 NUT, FLANGE 10MM 9410106800 WASHER, PLAIN 6MM 9425108000 PIN, LOCK 8MM 957010601200 BOLT, FLANGE 6X12 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 71...
  • Page 72 HONDA GX160K1QXC9 — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PAGE 72 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 73 BOLT, STUD 6X109 90047ZE1000 BOLT, STUD 8X32 9430110160 PIN A, DOWEL 10X16 9500280000 CLIP, TUBE C12 957230806000 BOLT, FLANGE 8X60 9807956846 SPARK PLUG BPR6ES (NGK) MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 73...
  • Page 74 HONDA GX160K1QXC9 — FAN COVER ASSY. FAN COVER ASSY. PAGE 74 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 75 SWITCH ASSEMBLY, ENGINE STOP 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP 90013883000 BOLT, FLANGE 6X12 (CT200) 90022888010 BOLT, FLANGE 6X20 (CT200 34150ZH7003 ALERT UNIT, OIL 957010600800 BOLT, FLANGE 6X8 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 75...
  • Page 76 HONDA GX160K1QXC9 — FLYWHEEL ASSY. FLYWHEEL ASSY. PAGE 76 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 77 PART NAME QTY. REMARKS 13331357000 KEY, SPECIAL WOODRUFF 25X18 19511ZE1000 FAN, COOLING 28451ZH8003 PULLEY, STARTER 31100ZE1010 FLYWHEEL 31100ZE1810 FLYWHEEL, LAMP 90201878003 NUT, SPECIAL 14MM MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 77...
  • Page 78 HONDA GX160K1QXC9 — FUEL TANK ASSY. FUEL TANK ASSY. PAGE 78 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 79 WRENCH, SPARK PLUG 91353671003 O-RING 13.5X1.5 (ARAI) 9405006000 NUT, FLANGE 6MM 950014500360M BULK HOSE, FUEL 4.5X3000 (4.5X140) 9500202080 CLIP, TUBE B8 957010602500 BOLT, FLANGE 6X25 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 79...
  • Page 80 HONDA GX160K1QXC9 — IGNITION COIL ASSY. IGNITION COIL ASSY. PAGE 80 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 81 PART NO. PART NAME QTY. REMARKS 30500ZE1033 COIL ASSEMBLY, IGNITION 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 36101ZE1010 WIRE, STOP SWITCH 370MM 90121952000 BOLT, FLANGE 6X25 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 81...
  • Page 82 HONDA GX160K1QXC9 — MUFFLER ASSY. MUFFLER ASSY. PAGE 82 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 83 ARRESTER, SPARK (SILENT) 18381ZH8800 GASKET, MUFFLER 90016ZE1000 BOLT, FLANGE 6X13 90050ZE1000 SCREW, TAPPING 5X8 90055ZE1000 SCREW, TAPPING 4X6 94001080000S NUT, HEX. 8MM 957010601200 BOLT, FLANGE 6X12 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 83...
  • Page 84 HONDA GX160K1QXC9 — PISTON AND RINGS ASSY. PISTON AND RINGS ASSY. PAGE 84 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 85 PISTON, 0.75 (OPTIONAL) 13111ZE1000 PIN, PISTON 13200ZE1010 ROD ASSEMBLY, CONNECTING ....... 1 ..INCLUDES ITEMS W/ 90001ZE1000 BOLT, CONNECTING ROD 90551ZE1000 CLIP, PISTON PIN 18MM MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 85...
  • Page 86 HONDA GX160K1QXC9 — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 86 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 87 SPRING, FRICTION 28442ZH8003 SPRING, RECOIL STARTER 28443ZH8003 SPRING, RETURN 28461ZH8003 KNOB, RECOIL STARTER 28462ZH8003 ROPE, RECOIL STARTER 90003ZH8003 SCREW, SETTING 90008ZE2003 BOLT, FLANGE 6X10 MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 87...
  • Page 88 HONDA GX160K1QXC9 — GASKET KIT ASSY. GASKET KIT ASSY. NO ART WORK PAGE 88 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 89 GASKET, CYLINDER HEAD 12391ZE1000 GASKET, CYLINDER HEAD COVER 16212ZH8800 GASKET, INSULATOR 16221ZH8801 GASKET, CARBURETOR 18381ZH8800 GASKET, MUFFLER 06111ZH8405 GASKET KIT ............1..INCLUDES ITEMS W/ MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 89...
  • Page 90 HONDA GX160K1QXC9 — LABELS ASSY. LABELS ASSY. PAGE 90 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 91 EMBLEM, 5.5 87522ZH9000 LABEL, CAUTION 87528ZE1810 MARK, CHOKE 87532ZH8810 MARK, OIL ALERT (E) 87534ZE1841 LABEL, AIR CLEANER CAUTION 87535ZE1840 MARK, AIR CLEANER SALES POINT MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 91...
  • Page 92 Multiquip’s designated receiving point. PAGE 92 — MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10)
  • Page 93 NOTES MP1 SERIES MASONRY SAWS — OPERATION AND PARTS MANUAL — REV. #1 (03/29/10) — PAGE 93...
  • Page 94 © COPYRIGHT 2010, MULTIQUIP INC. Multiquip Inc and the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.

This manual is also suitable for:

Mp115eMp120e

Table of Contents
