Summary of Contents for ASUSTOR AS6504RD

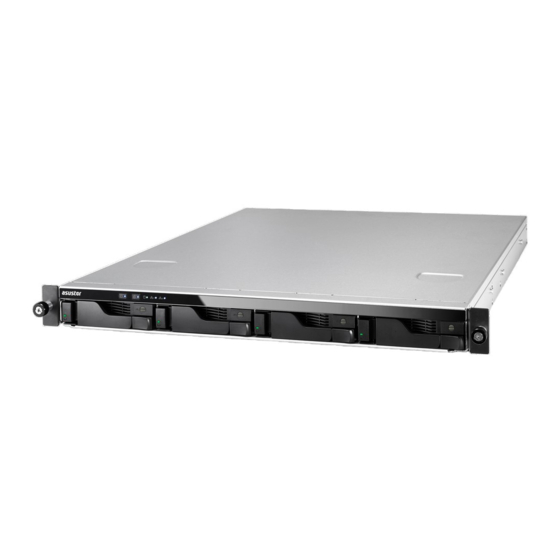

- Page 1 Quick Installation Guide Applicable Models AS6504RD/AS6504RS/AS6512RD Ver.2.3.0903 (2015-3-2) Ver. 3.5.5.0120...
-
Page 2: Table Of Contents
Table of Contents Notices ..............................3 Safety Precautions ........................... 4 1. Package Contents ..........................5 2. Optional Accessories ........................... 6 3. Hardware Installation Guide ....................... 7 Tools Needed for Hard Disk Installation ....................7 Hard Disk Installation ........................... 7 Connecting and Powering on the NAS ....................9 Upgrading System Memory ........................ -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. -
Page 4: Safety Precautions
Safety Precautions The following safety precautions will increase the life of the NAS. Follow all precautions and instructions. Electrical Safety Unplug this product from the power source before cleaning. Use only the bundled power adapter. Using other power adapters may damage your device. Ensure that you plug the power adapter to the correct power input rating. -
Page 5: Package Contents
1. Package Contents Applicable Models: AS6504RD, AS6504RS, AS6512RD Model Name AS6504RD AS6504RS AS6512RD Power Cord RJ45 Network Cable Screws for use with 3.5” Screws for use with 2.5” Quick Start Guide... -
Page 6: Optional Accessories
2. Optional Accessories The items below may be purchased from the ASUSTOR Accessories Store http://shop.asustor.com. -
Page 7: Hardware Installation Guide
At least one 2.5 or 3.5 inch SATA hard disk. (For a list of compatible hard disks, please see http://www.asustor.com/service/hd?id=hd) Hard Disk Installation Press the button on the lower portion of the hard disk tray to release the latch. - Page 8 2.5-inch hard disks and SSD hard disks: Place the hard disk into the area of the disk tray outlined in red (see picture below). Make sure that the mounting holes on the bottom of the hard disk and disk tray are lined up. Secure the drive with four screws.
-
Page 9: Connecting And Powering On The Nas
Connecting and Powering on the NAS Connect the NAS to its power supply. AS6504RS AS6504RD AS6512RD Connect the NAS to your router, switch or hub using an Ethernet cable. AS6504RS/AS6504RD AS6512RD... -
Page 10: Upgrading System Memory
Your NAS and memory modules use high precision components and electronic connector technology. To avoid invalidation of the warranty during your product warranty period, we recommend that: Memory for AS65XXR series devices may be purchased from local dealers or the online ASUSTOR Accessories Store (http://shop.asustor.com). - Page 11 Be careful not to injure your hands or fingers with sharp edges of the memory module, inner components, or circuit boards of your NAS. ASUSTOR does not guarantee that third party memory modules will work in your NAS. Be sure to turn off your NAS and peripherals and disconnect all attachments and connection cables before adding or removing memory modules.
- Page 12 AS6504RS AS6504RD AS6512RD 3. Use a screwdriver to loosen the three screws found on the rear of the NAS as shown in the illustration. AS6504RS AS6504RD AS6512RD...
-
Page 13: Installing Memory
4. Grip the cover from both sides with two hands and then gently push it back to remove it from the chassis. AS6504RS/AS6504RD AS6512RD Installing Memory When installing a memory module, follow the steps outlined below. For each slot, diagonally slide in a new memory module (as shown in the graphic below) making sure that each... - Page 14 “click”. Note: Upon installation of new RAM, your ASUSTOR NAS will perform a memory check on startup. This process occurs only once and may take up to 10 minutes to complete. This is normal.
-
Page 15: Installing Expansion Card
AS6512RD Installing Expansion Card 1. Unscrew the blanking plate retention screw and then remove the blanking plate for the expansion slot that you wish to use. AS6504RD/AS6504RS AS6512RD... -
Page 16: Rail Kit Installation
2. Carefully insert your expansion card into the slot, making sure to line up the connector on the bottom of the expansion card with the slot. AS6504RD/AS6504RS AS6512RD Rail Kit Installation Take out the two rail assemblies. - Page 17 Fully extend the rail assembly by pulling it outward. Press down on the release tab and pull the inner rail out. Separate the inner rail from the outer assembly. Line up the holes on the inner rail with the pegs on the system chassis and push the inner rail all the way in.
-
Page 18: Replace Malfunctioning Psu
Align the rails and push the system chassis all the way into the rack. Replace Malfunctioning PSU Unplug the power cord from the PSU to be replaced. AS6504RD AS6512RD... - Page 19 Push the lever of the PSU at the back panel in the indicated direction. Pull out the PSU from the NAS. AS6504RD AS6512RD Prepare a new PSU, and push it back to the slot until you hear a click. AS6504RD...
-
Page 20: Software Installation Guide
Download Center Installation Windows Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process. - Page 21 Mac Users After ASUSTOR Control Center has been installed, it will automatically begin to scan your network for ASUSTOR NAS devices. Select your NAS from the list and follow the installation wizard’s instructions to complete the configuration process.
-
Page 22: Web Installation
Web Installation If you already know your NAS’s current IP address, you can open up a web browser and enter in your NAS’s IP address (for example: http://192.168.1.168:8000) to begin initialization. Please follow the instructions from the installation wizard to complete the configuration process. -
Page 23: Installation Using A Mobile Device
Installation Using a Mobile Device Search for “AiMaster” in Google Play or the Apple App Store. You can also scan the QR codes provided below. Download and install the AiMaster mobile app to your mobile device. AiMaster for Android AiMaster for iOS Make sure that your mobile device is connected to the same local network that your NAS is connected to. - Page 24 Select your NAS from the list that appears.
-
Page 25: Installation Using A Direct Connection
Select [Start Initialization] to begin installation. Follow the prompts and instructions to complete the configuration process. Installation Using a Direct Connection Please see section Troubleshooting for installation instructions. Shutting Down Your NAS Confirm the function settings for the power button as shown in the graphic below. When the power button is held down for 1.5 seconds you can decide whether to shut down the NAS or have it enter into sleep mode. - Page 26 Hold down the power button for 1.5 seconds. You should be able to hear a “beep” from the system buzzer. Let go of the power button and the NAS will either shut down or enter sleep mode depending on your configuration.
-
Page 27: Appendix
System Status LED Indicator *For AS6504RD/AS6504RS/AS6512RD models: When Ethernet cables are connected to [Ethernet Port 1] and [Ethernet Port 2] on the rear panel of the NAS, the first network LED indicator on the front of the NAS will become steadily lit. Once Ethernet cables are connected to [Ethernet Port 3] and [Ethernet Port 4] on the rear panel of the NAS, the second network LED indicator on the front of the NAS will become steadily lit. -
Page 28: Rear Panel
Data access in progress Hard Disk Flashes every 10 seconds Hibernation mode Steadily lit Hard disk abnormality Rear Panel AS6504RD/AS6504RS AS6512RD PCI Express 3.0 Expansion Slot USB 3.2 Gen 1 Ports Reset Button Service LED Console Port Power Supply Unit... -
Page 29: Troubleshooting
Troubleshooting Q: Why can’t I detect my ASUSTOR NAS using ASUSTOR Control Center? A: If you are having trouble detecting your NAS using ASUSTOR Control Center, please do the following: 1. Please check your network connection: Make sure that your computer and your NAS are part of the same local area network. - Page 30 Right-click on [Local Area Connection] and select [Properties]. Under the [Networking] tab select [Internet Protocol Version 4 (TCP/IPv4)] and click on [Properties].
- Page 31 Under the [General] tab select the [Use the following IP address] radio button. Set the [IP address] to 169.254.1.1 and the [Subnet mask] to 255.255.0.0 and then click on [OK].
- Page 32 Open up ASUSTOR Control Center to scan for your NAS.
- Page 33 4. If the above mentioned procedures have not managed to solve your problem, please contact your local ASUSTOR dealer or ASUSTOR Customer Service http://support.asustor.com.You are also encouraged to browse through the ASUSTOR Knowledgebase.
