Thermaltake Pacific V-RTX 2080 Ti Plus Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
Before you start using this product please follow these basic guidelines:
1. Please carefully read through the instruction manual before beginning the installation process.
2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible damages to
your CPU and motherboard.
3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.

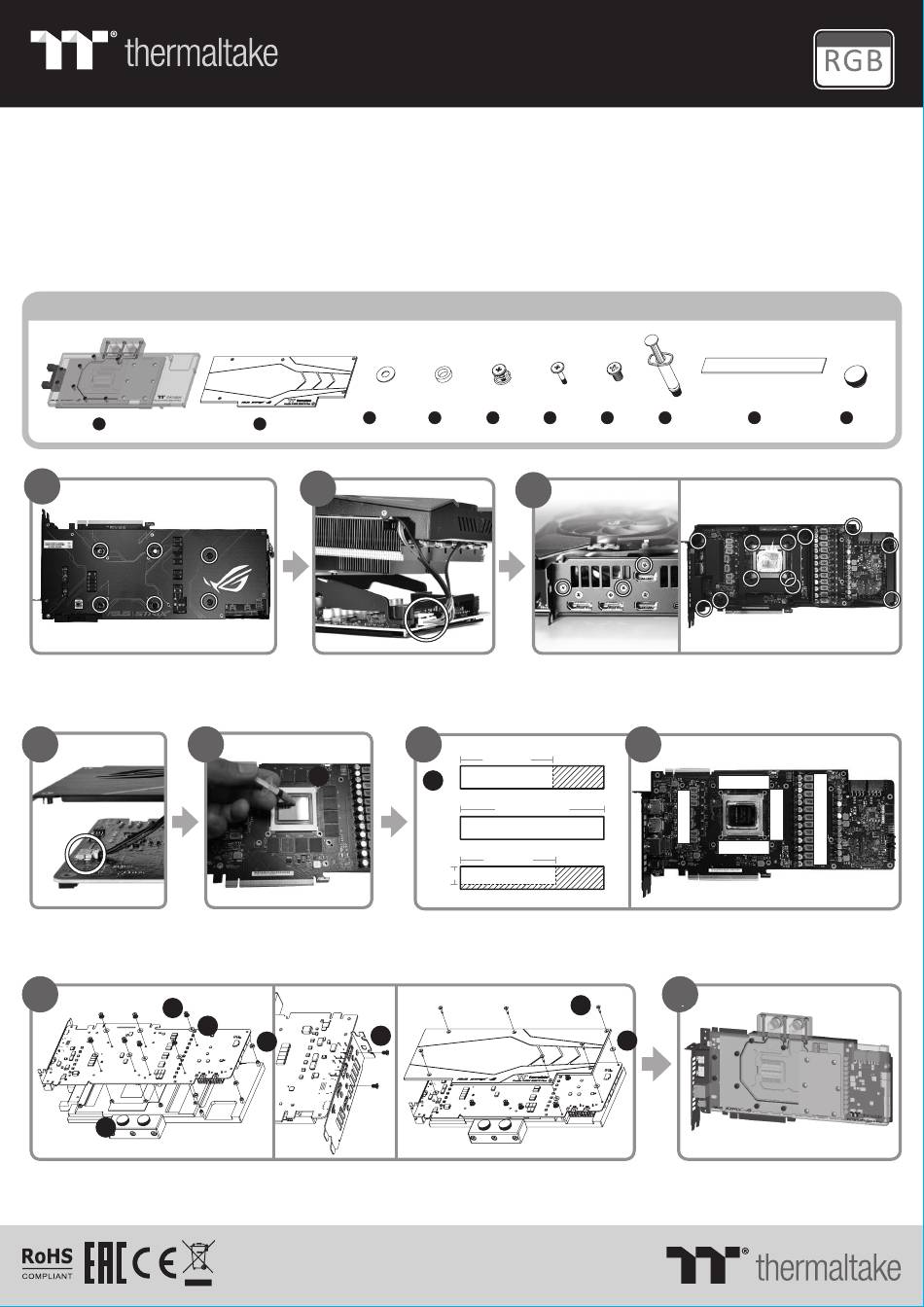

A x 1
1
Remove original VGA stock cooler (Remove
the screws circled on the diagram. All heat sink
assembly screws should be removed)
4 5
Remove the
power connector
8
E
J
When installing the water block, carefully position the water block with the preinstalled standoffs
on the graphics card.

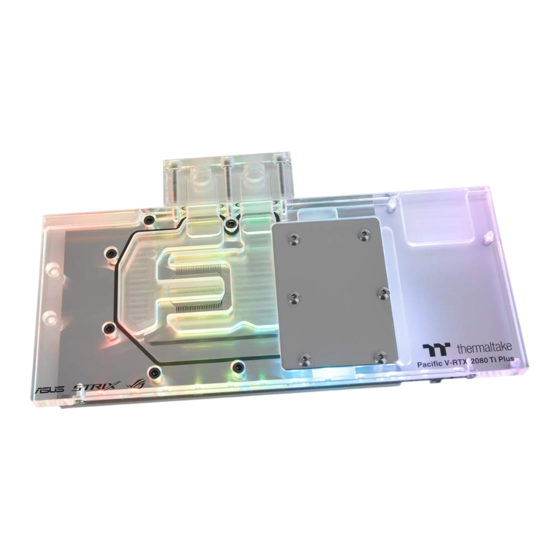

Pacific V-RTX 2080 Ti Plus
C
B x 1
2
Remove the power connector
H
Apply thermal compound
C
G
D
© 2018 Thermaltake Technology Co., Ltd. All Rights Reserved.
www.thermaltake.com
ASUS Strix VGA Water Block
Parts List
x 13 D x 3 E x 7 F
3
Clean the original thermal compound off the GPU die and remove the
screws to detach the backplate. (Carefully detach the original stock cooler
after removing all acrews securing the cooler to the board)
6
57 mm
a
I
100mm
b
63.5 mm
c
10.5 mm
Cut the thermal pads to the dimensions listed and place them on the spots shown on the diagram.
x 6 G x 2 H x 1
7
c
9
F
C
Patented
16.8
Million Color
I x 6 J x 2
a
a
b
a
Finish
